Item group

Precision pressure regulator - Eco-Line, 1150 l/min*

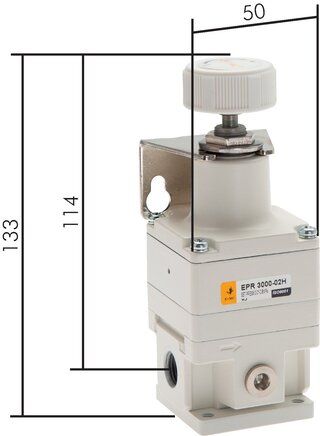

Exemplary representation: Precision pressure regulator - Eco-Line, series 2 Schematic symbol

Application:

Precision pressure regulators are used in order to adjust an extremely accurate pressure - regardless of pre-pressure and flow performance. It is used for example for control and regulation units in process engineering, which has the highest pressure stability requirements.

Version:

Precision pressure reducer, reversible (with secondary relieving)

Materials:

Body: Aluminium, diaphragm, and gaskets: NBR

Temperature range:

-20 to +70 °C

Input pressure:

max. 10 bar

Pressure gauge connection:

G 1/8"

Switch panel thread:

M 12x1

Own air consumption:

4,4 l/min

Control accuracy:

± 16 mbar

Media:

fine-filtered compressed air (5 µm) & neutral gases, oil-free

Scope of delivery:

Precision pressure regulator including mounting bracket and sealing plugs in both gauge ports

Advantages:

•Automatic venting in case of overpressure on the secondary side,
•High flow rate at constant pressure,
•Fine regulation of pressure independent of upstream pressure and flow rate,
•Mounting bracket included in delivery,
•Mounting bracket and pressure gauge can be mounted on two sides,
•Main installation dimensions similar to SMC series IR

Warning:

This device is supplied without a pressure gauge. We recommend ordering a suitable pressure gauge separately.

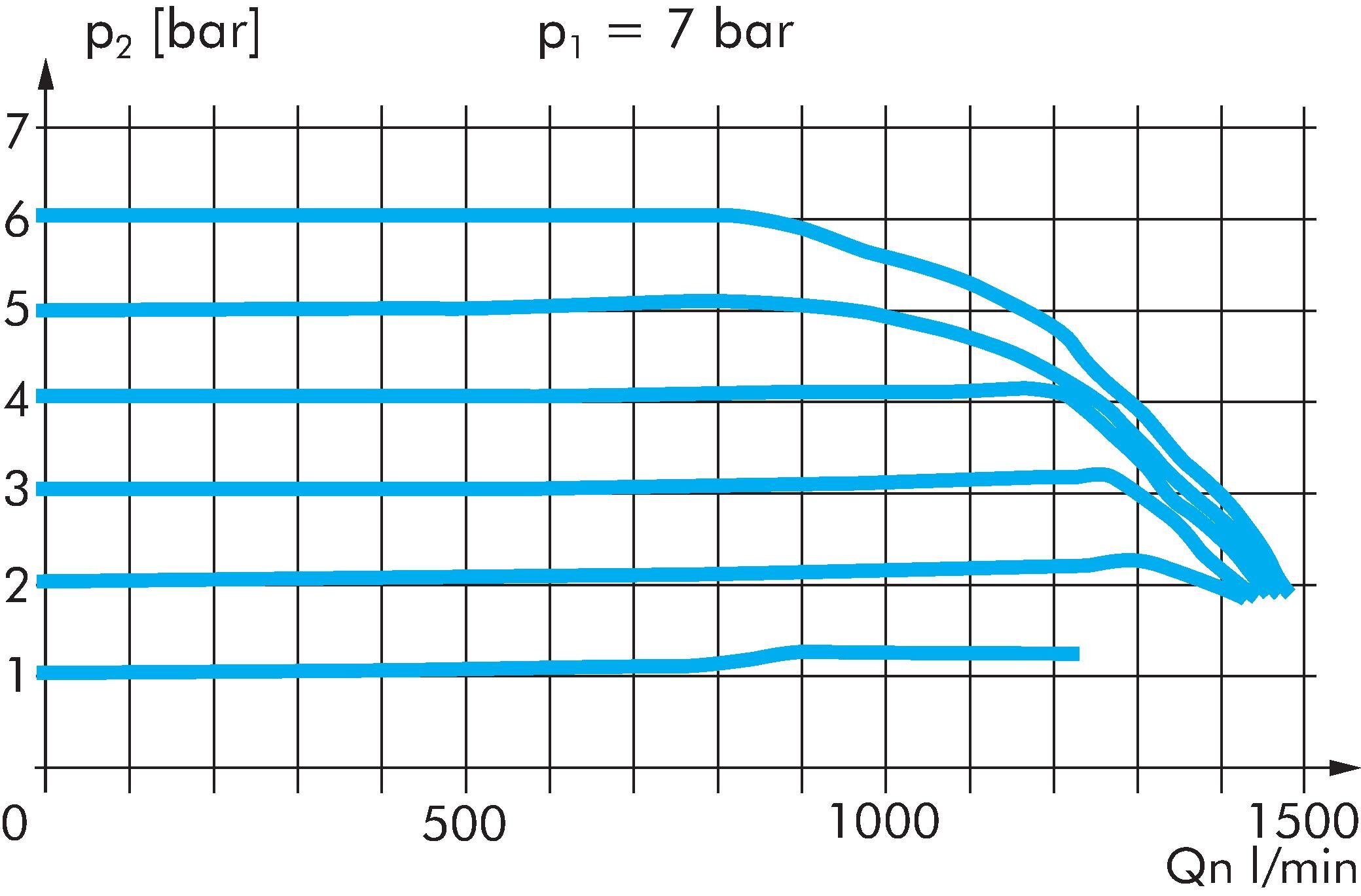

*measured at P1 = 7 bar, P2 = 6 bar and 1 bar pressure drop

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 612) atlas9_seiten/612.pdf
    Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
