Item group

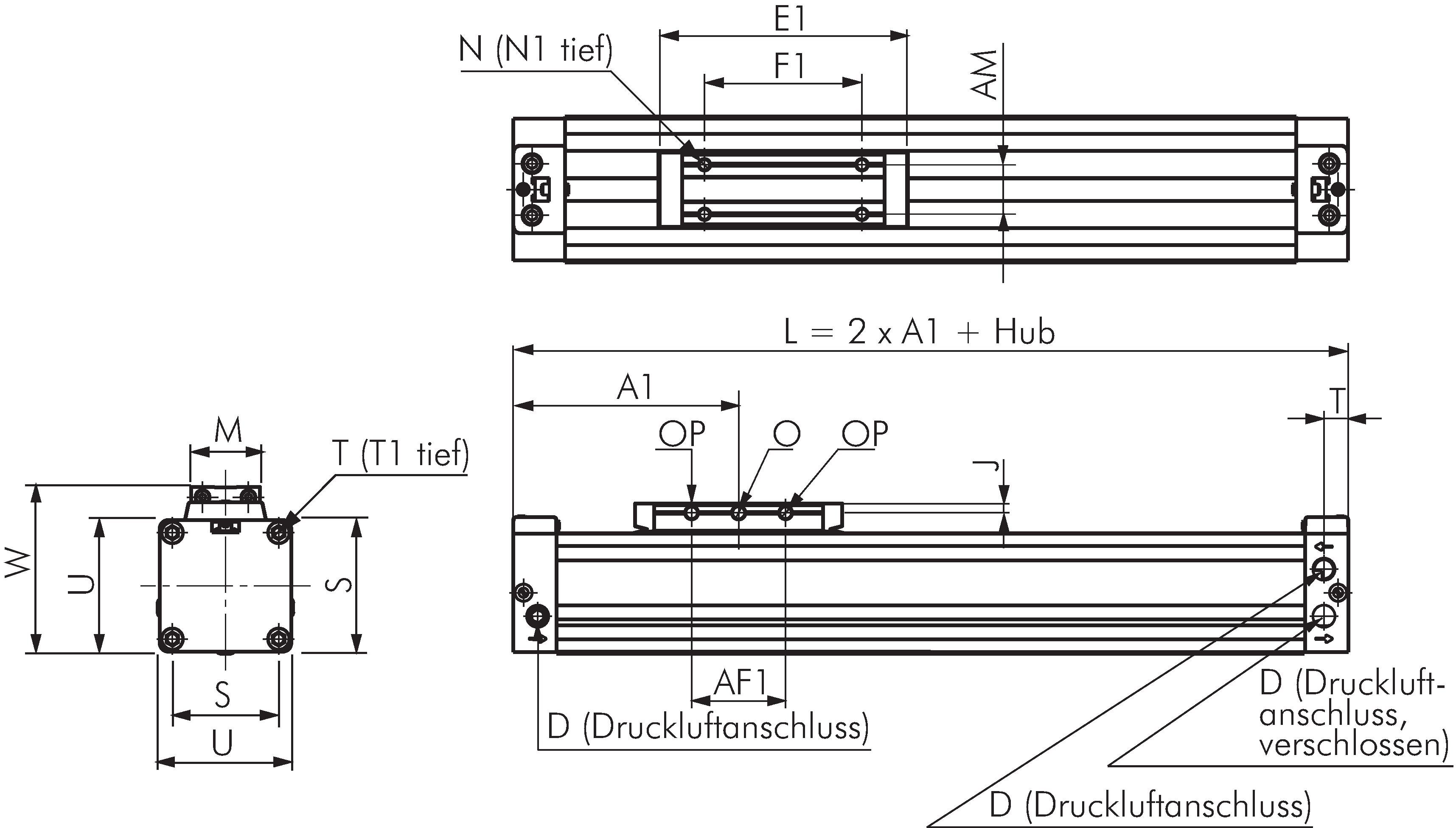

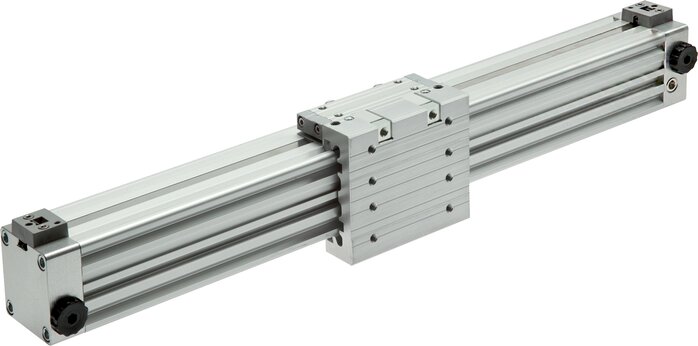

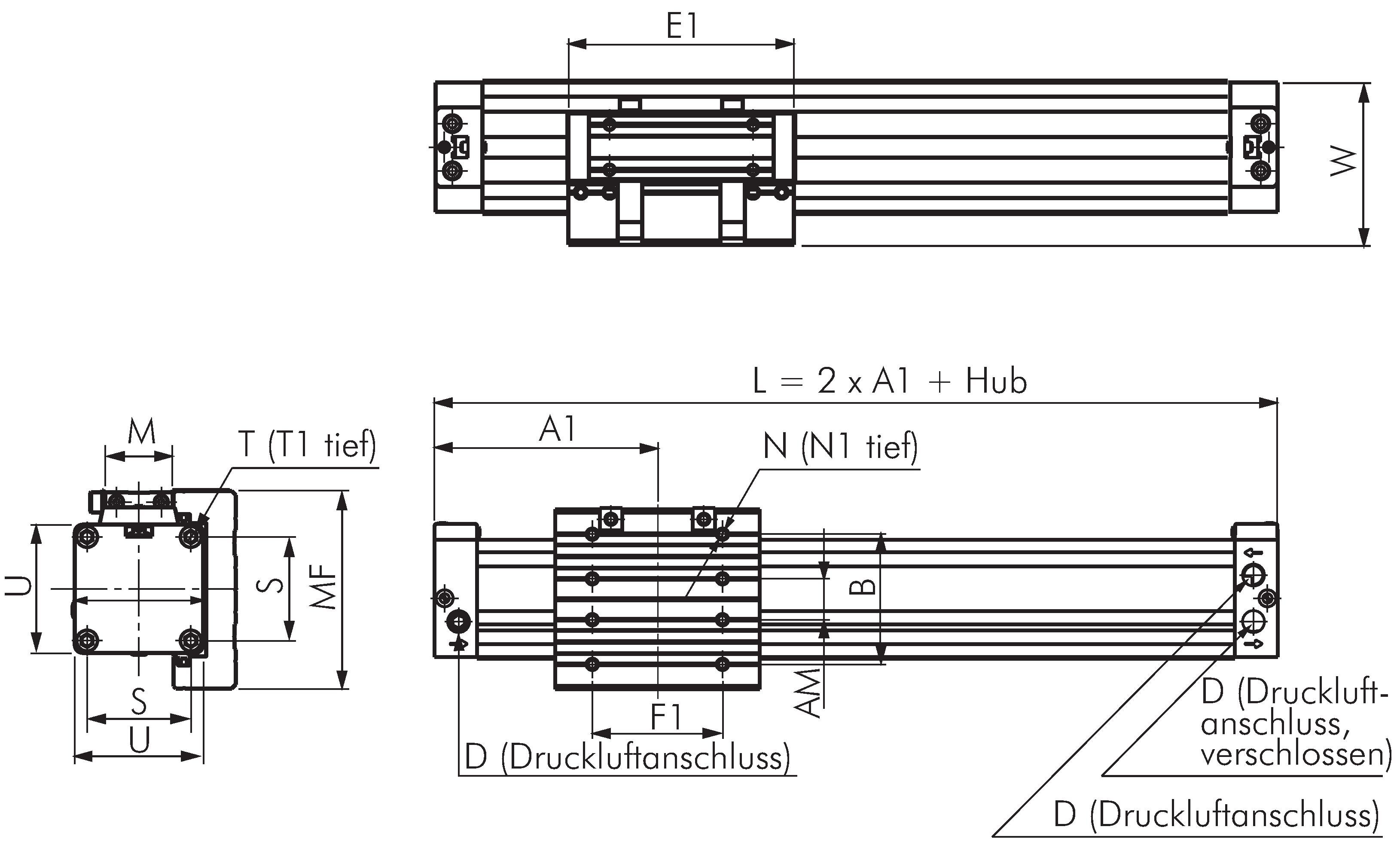

Piston rod-less short cylinders, short cylinders with guide, LZK
Construction type:
Piston rod-less cylinder with direct power take-off through the pipe slit to the power bridge, end-position damping adjustable on both sides, short installation shape
Materials:
Cylinder tubes, cylinder heads and drive rollers: anodized aluminium, seals: NBR / PUR, masking tape: Stainless steel
Temperature range:
-20 to +80 °C
Operating pressure:
max. 8 bar
Stroke:
at will up to 6,000 mm
Installation position:
arbitrarily, however, preferably yoke downward to avoid soiling.
Compressed air connection:
both sides (anytime by removing closing plugs on one side or below, or combinations thereof can be reconstructed)
Version:
With Magnetic piston
Cylinder switch type:
D, A (Ø 18: D or A in combination with fastening AB2)
Advantages:

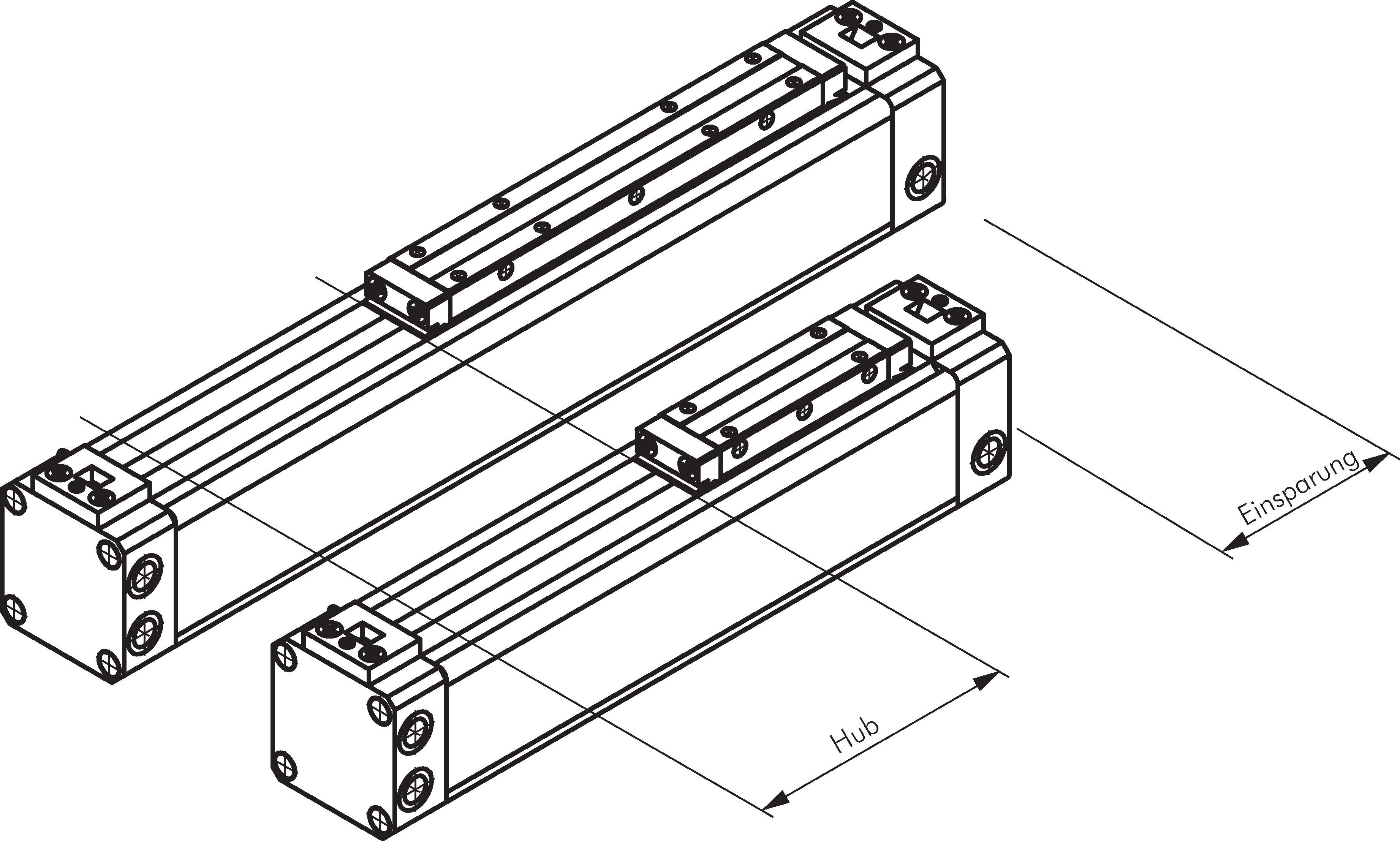

•fits up to 42% shorter than the standard model series,
•space-saving, even compared to the short-stroke standard cylinders with piston rod,
•cost-effective compact construction
•space-saving, even compared to the short-stroke standard cylinders with piston rod,
•cost-effective compact construction
{{ $t('shop.all.dokumente') }}:
Catalogue page Atlas 9 (Page 878_879_881_882) atlas9_seiten/878_879_881_882.pdf
Documentation doku/zylinder.pdf
Documentation doku/zylinder.pdf
