Item group

Pipe clamps - elastomer insert light model series, DIN 3015 T1

Name: Pipe clamp (elastomer insert) 6mm, Size 4, light model series of Hydac
Brand: Hydac
SKU: GR 46 L EL
Price: 8.07 EUR
Availability: InStock

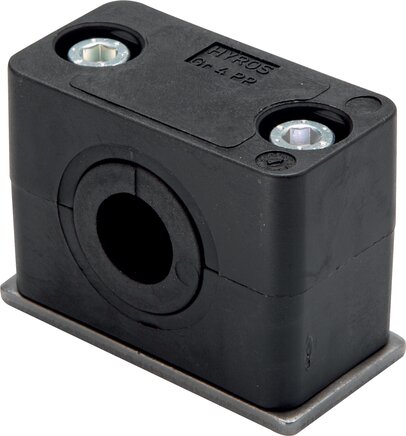

Exemplary representation: Plastic clip with welding plate

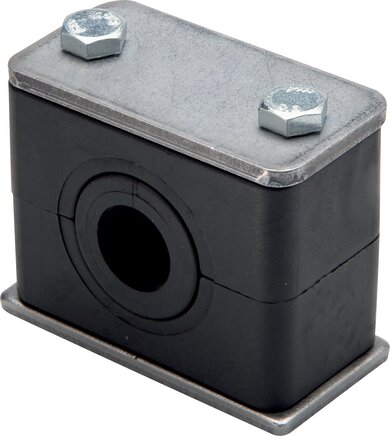

Exemplary representation: Plastic clip with welding plate & cover plate

Materials:

Metal parts: Steel, bare / galvanised steel, screws: Galvanised steel, clip: Polypropylene, elastomer insert: Chloroprene rubber

Application:

The elastomer insert absorbs the pressure thrusts in the tubes. We recommend using an elastic hose line in the problematic piping network.

{{ $t('shop.all.dokumente') }}:

Catalogue page Atlas 9 (Page 434) atlas9_seiten/434.pdf

Pipe clamps - elastomer insert light model series, DIN 3015 T1:

{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}

GR 46 L EL

Pipe clamp (elastomer insert) 6mm, Size 4, light model series

8,07€ incl. VAT

Version	size	Pipe diameter (outer) [mm]	H [mm]
Plastic clip with welding plate	Size 4, light model series	6	48

GR 48 L EL

Pipe clamp (elastomer insert) 8mm, Size 4, light model series

8,07€ incl. VAT

Version	size	Pipe diameter (outer) [mm]	H [mm]
Plastic clip with welding plate	Size 4, light model series	8	48

GR 410 L EL

Pipe clamp (elastomer insert) 10mm, Size 4, light model series

8,07€ incl. VAT

Version	size	Pipe diameter (outer) [mm]	H [mm]
Plastic clip with welding plate	Size 4, light model series	10	48

GR 412 L EL

Pipe clamp (elastomer insert) 12mm, Size 4, light model series

8,07€ incl. VAT

Version	size	Pipe diameter (outer) [mm]	H [mm]
Plastic clip with welding plate	Size 4, light model series	12	48

GR 4127 L EL

Pipe clamp (elastomer insert) 12,7mm, Size 4, light model series

8,07€ incl. VAT

Version	size	Pipe diameter (outer) [mm]	H [mm]
Plastic clip with welding plate	Size 4, light model series	12,7	48

GR 414 L EL

Pipe clamp (elastomer insert) 14mm, Size 4, light model series

8,07€ incl. VAT

Version	size	Pipe diameter (outer) [mm]	H [mm]
Plastic clip with welding plate	Size 4, light model series	14	48

GR 415 L EL

Pipe clamp (elastomer insert) 15mm, Size 4, light model series

8,07€ incl. VAT

Version	size	Pipe diameter (outer) [mm]	H [mm]
Plastic clip with welding plate	Size 4, light model series	15	48

GR 416 L EL

Pipe clamp (elastomer insert) 16mm, Size 4, light model series

8,07€ incl. VAT

Version	size	Pipe diameter (outer) [mm]	H [mm]
Plastic clip with welding plate	Size 4, light model series	16	48

GR 4172 L EL

Pipe clamp (elastomer insert) 17,2mm, Size 4, light model series

8,07€ incl. VAT

Version	size	Pipe diameter (outer) [mm]	H [mm]
Plastic clip with welding plate	Size 4, light model series	17,2	48

GR 418 L EL

Pipe clamp (elastomer insert) 18mm, Size 4, light model series

8,07€ incl. VAT

Version	size	Pipe diameter (outer) [mm]	H [mm]
Plastic clip with welding plate	Size 4, light model series	18	48

GR 419 L EL

Pipe clamp (elastomer insert) 19mm, Size 4, light model series

8,07€ incl. VAT

Version	size	Pipe diameter (outer) [mm]	H [mm]
Plastic clip with welding plate	Size 4, light model series	19	48

GR 620 L EL

Pipe clamp (elastomer insert) 20mm, Size 6, light model series

14,68€ incl. VAT

Version	size	Pipe diameter (outer) [mm]	H [mm]
Plastic clip with welding plate	Size 6, light model series	20	72

GR 622 L EL

Pipe clamp (elastomer insert) 22mm, Size 6, light model series

14,68€ incl. VAT

Version	size	Pipe diameter (outer) [mm]	H [mm]
Plastic clip with welding plate	Size 6, light model series	22	72

GR 623 L EL

Pipe clamp (elastomer insert) 23mm, Size 6, light model series

14,68€ incl. VAT

Version	size	Pipe diameter (outer) [mm]	H [mm]
Plastic clip with welding plate	Size 6, light model series	23	72

GR 625 L EL

Pipe clamp (elastomer insert) 25mm, Size 6, light model series

14,68€ incl. VAT

Version	size	Pipe diameter (outer) [mm]	H [mm]
Plastic clip with welding plate	Size 6, light model series	25	72

GR 6269 L EL

Pipe clamp (elastomer insert) 26,9mm, Size 6, light model series

14,68€ incl. VAT

Version	size	Pipe diameter (outer) [mm]	H [mm]
Plastic clip with welding plate	Size 6, light model series	26,9	72

GR 628 L EL

Pipe clamp (elastomer insert) 28mm, Size 6, light model series

14,68€ incl. VAT

Version	size	Pipe diameter (outer) [mm]	H [mm]
Plastic clip with welding plate	Size 6, light model series	28	72

GR 630 L EL

Pipe clamp (elastomer insert) 30mm, Size 6, light model series

14,68€ incl. VAT

Version	size	Pipe diameter (outer) [mm]	H [mm]
Plastic clip with welding plate	Size 6, light model series	30	72

GR 632 L EL

Pipe clamp (elastomer insert) 32mm, Size 6, light model series

14,68€ incl. VAT

Version	size	Pipe diameter (outer) [mm]	H [mm]
Plastic clip with welding plate	Size 6, light model series	32	72

GR 46 LDP EL

Pipe clamp (elastomer insert) 6mm, Size 4, light model series

8,51€ incl. VAT

Version	size	Pipe diameter (outer) [mm]	H [mm]
Plastic clip with welding plate & cover plate	Size 4, light model series	6	48
