Item group
Multi-pin connection cables (D-Sub 25-pin), for S1V & S2V
Description:

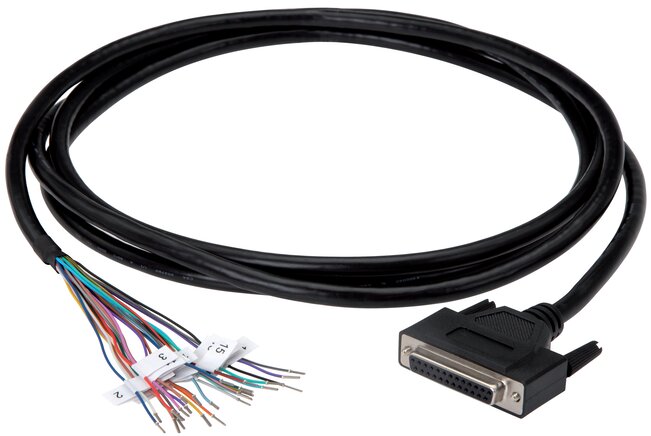

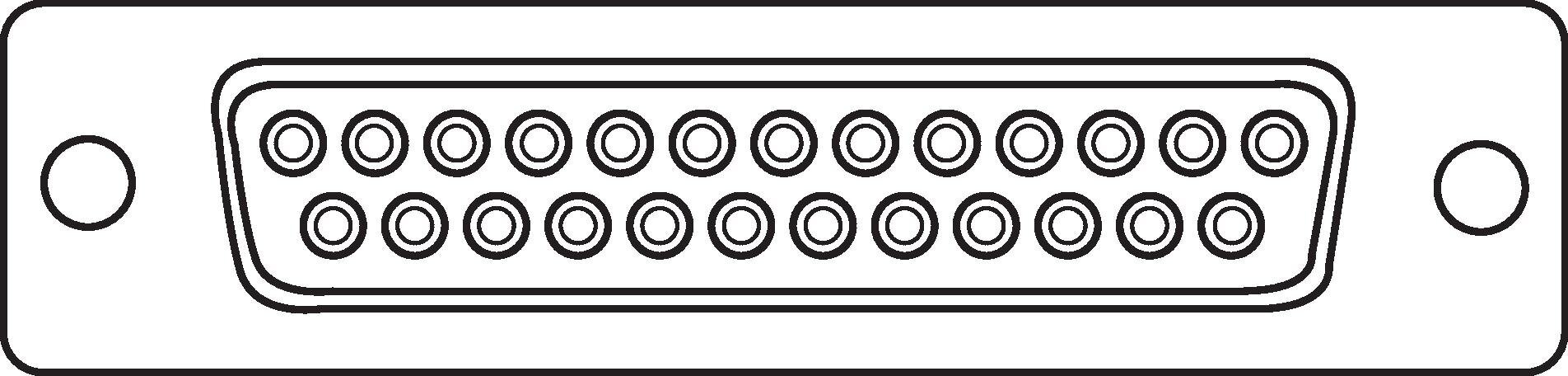

Pre-assembled connecting cables with 25-pin, D-Sub socket on one side and loose cable ends on the other. The individual strands are equipped with pin numbers and cable end sleeves.
Temperature range:
0°C to +80°C
Voltage:
max. 20 V AC / 30 V DC, max. 1 A
Protection class:
IP 40
Cable:
PVC cable (AWG 24) 25x 0.23 mm²
Documents:
More information
Multi-pin connection cables (D-Sub 25-pin), for S1V & S2V:
3 of 3 articles
KAB DSUB25 3
D-Sub connecting cable, 25-pin, 3 m
€67.37
incl. VAT
KAB DSUB25 5
D-Sub connecting cable, 25-pin, 5 m
€92.95
incl. VAT
KAB DSUB25 10
D-Sub connecting cable, 25-pin, 10 m
€159.09
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
