Item group

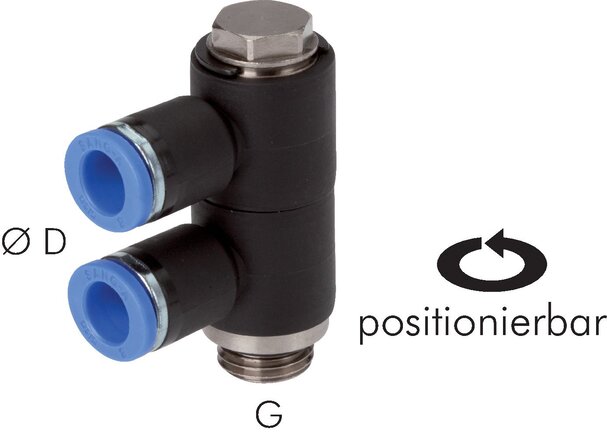

Multi-distributor (2-way), cylindrical threads, Standard
Materials:
Body: nickel-plated brass / PA 66, sleeve: PA 66 (M 3: nickel-plated steel / PA66), seal: NBR, holding claws: stainless steel, cartridge: Zinc-plated ZnDC (only silicone-free seals and lubricants are used during assembly)
Temperature range:
-20 to +80 °C
Operating pressure:
-0,95 to 20 bar
Media:
oiled and unoiled compressed air, neutral gases and water (water up to max 60° C may be used only after we have approved the performance specifications).
Advantages:
•Wide variety of products,
•extremely tight due to lip seal,
•available with conical, PTFE-coated thread or with cylindrical thread and captive O-ring
•extremely tight due to lip seal,
•available with conical, PTFE-coated thread or with cylindrical thread and captive O-ring
{{ $t('shop.all.dokumente') }}:
Catalogue page Atlas 9 (Page 49) atlas9_seiten/49.pdf
Documentation: Decision-making tool for the selection of IQS push in fittings and the matching hoses doku/entscheidungshilfen_steckanschluesse.pdf
Documentation: Decision-making tool for the selection of IQS push in fittings and the matching hoses doku/entscheidungshilfen_steckanschluesse.pdf
{{ $t('shop.display.artikelgruppe.mehr_informationen') }}
{{ $t('shop.display.artikelgruppe.weniger_informationen') }}
{{ $t('shop.display.artikelgruppe.filtern') }}
Multi-distributor (2-way), cylindrical threads, Standard:
{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }} {{ $t('shop.all.unverbindliche_richtwerte') }}
