Item group

Mini-ball valves with butterfly handle on one side / screwdriver actuation, PN 16

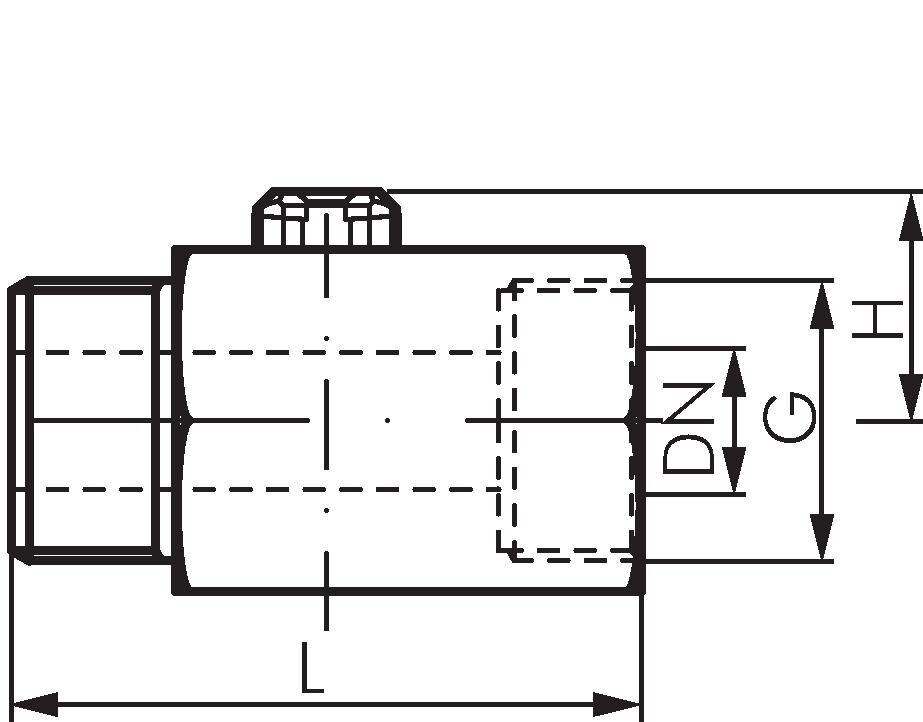

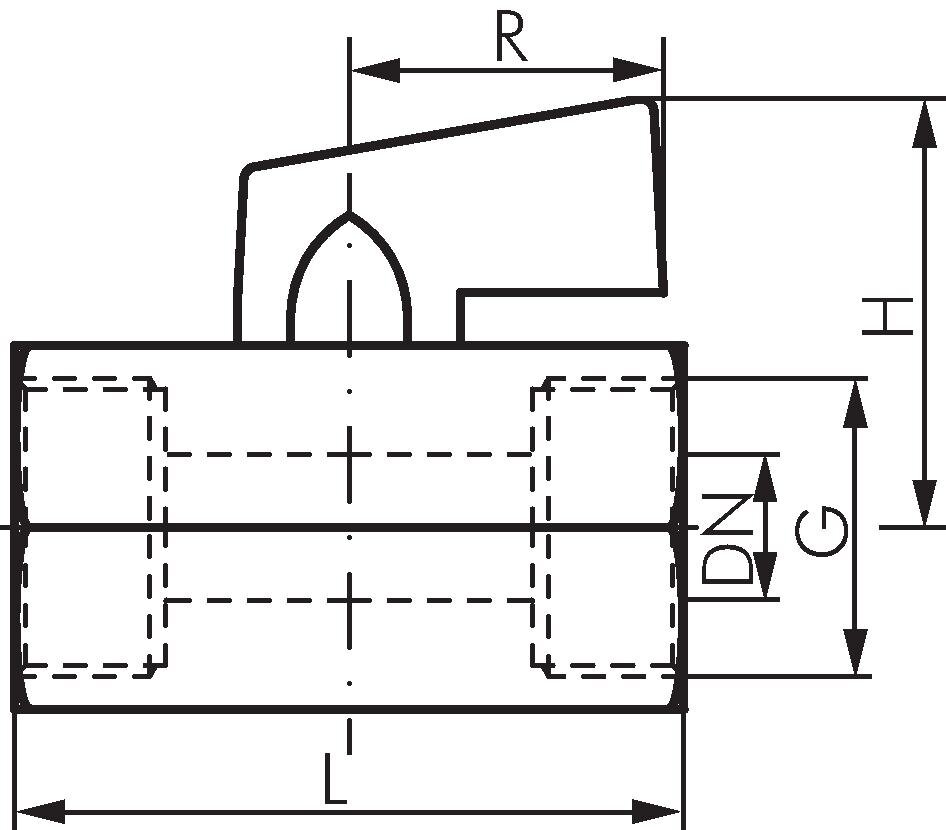

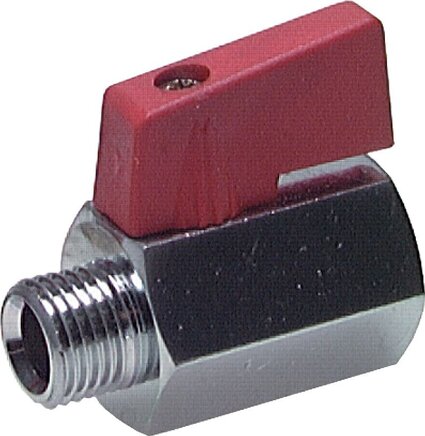

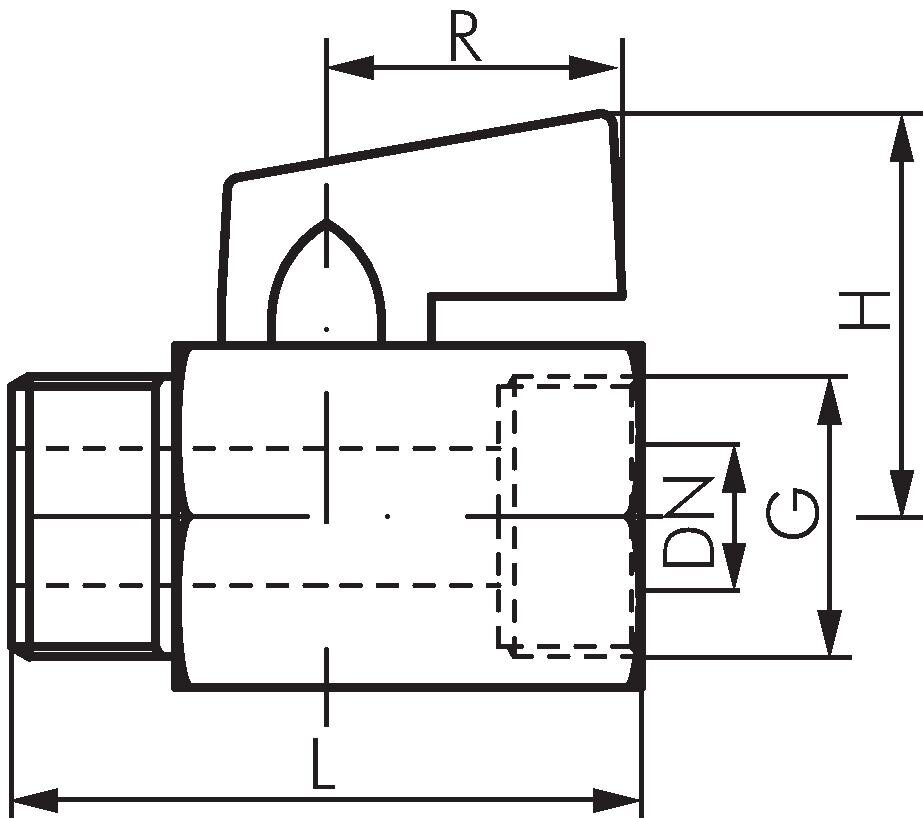

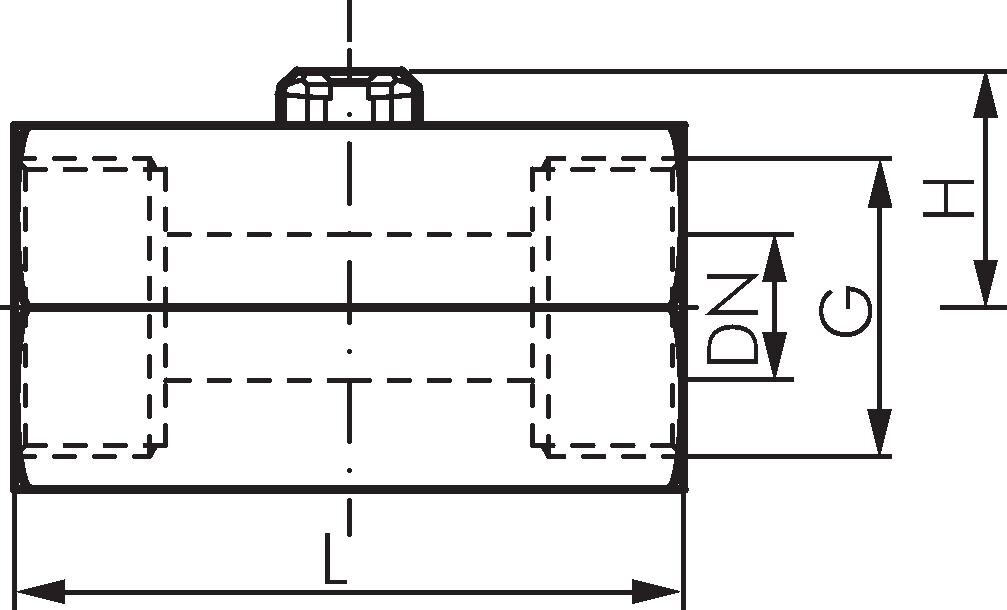

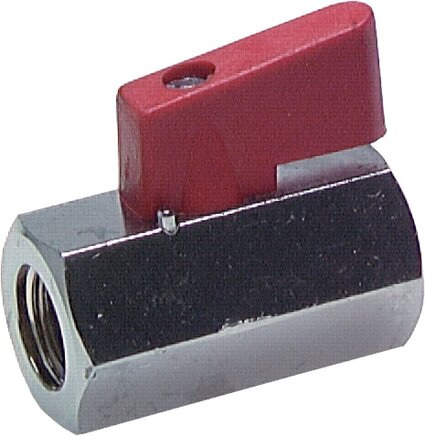

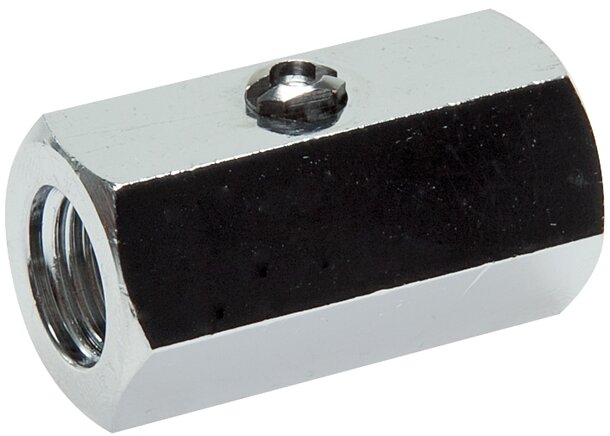

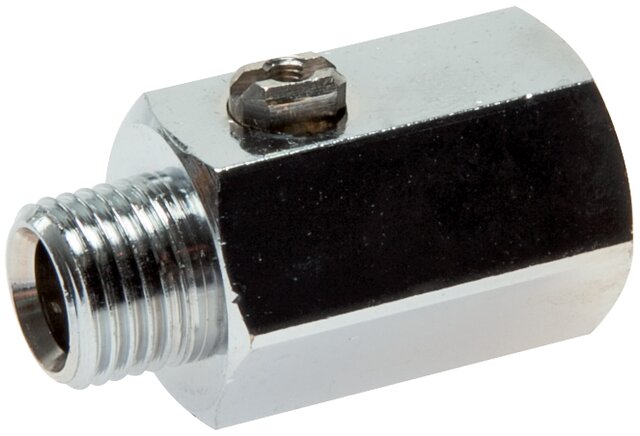

Exemplary representation: Mini ball valve with female thread, toggle handle Exemplary representation: Mini ball valve with internal & male thread, toggle handle Exemplary representation: Mini ball valve with female thread, screwdriver operation Exemplary representation: Mini ball valve with internal & male thread, screwdriver operation

Materials:

Body: chrome-plated brass, ball: hard chromium plated brass, seal: PTFE / NBR

Temperature range:

0 to +70 °C (temporarily 0 to +90 °C)

Media:

Water (no steam), neutral, gaseous and non-aggressive, liquid media, mineral oils, compressed air, vacuum (max. -0.9 bar)

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 502) atlas9_seiten/502.pdf
{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
Mini-ball valves with butterfly handle on one side / screwdriver actuation, PN 16:
{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}
{{ $t('shop.all.unverbindliche_richtwerte') }}
