Item group

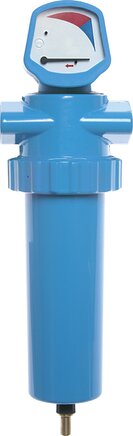

Micro filters - MF, 0.03 mg/m3
Application:
These filters are used for separating very fine oil and water aerosols and solid impurities with particles up to 0.05 µm. Multi-layer, 3-dimensional non-woven fabric with nano-fibre technology. Depth filters have their applications in instrument and control air in the chemical, petrochemical and pharmaceutical industries as well as in the plastics, food, beverage and process industries, and in general mechanical engineering. We recommend connecting an upstream pre-filter to increase the service life.
Materials:
Body: aluminium with blue polyester resin coating, filter medium: binder-free borosilicate glass with aluminium end caps, O-rings: NBR (free of silicone and release agents), support sleeve: stainless steel
Temperature range:
max. +80 °C
Input pressure:
1 to 16 bar
Condensate drain:
Hose screw connection for inner hose Ø 8 (steam trap is mounted in a condensate borehole G 1/2")
Scope of delivery:
Filter housing, filter element, differential pressure gauge and automatic drainer
Residual oil content (with inlet concentration of 3 mg/m³):
= 0.03 mg/m³
Separation efficiency (relating to particle 0.01µm):
99,99998 %
*at +20°C and 7 bar overpressure, **usable type PE/MF/SMF 0002 - 0108, ***usable type PE/MF/SMF 0144 - 0288
{{ $t('shop.all.dokumente') }}:
Catalogue page Atlas 9 (Page 631) atlas9_seiten/631.pdf
Documentation doku/agz.pdf
Documentation doku/agz.pdf
