Item group

Inductive proximity switch (M 5 - M 8 - M 12 - M 18 - M 30), universal

Name: Ind. proximity switch, M 5, SN0,8 - Cable (2 m)
Brand: Landefeld
SKU: SIN M5-B-0,8
Price: 112.1 EUR
Availability: InStock

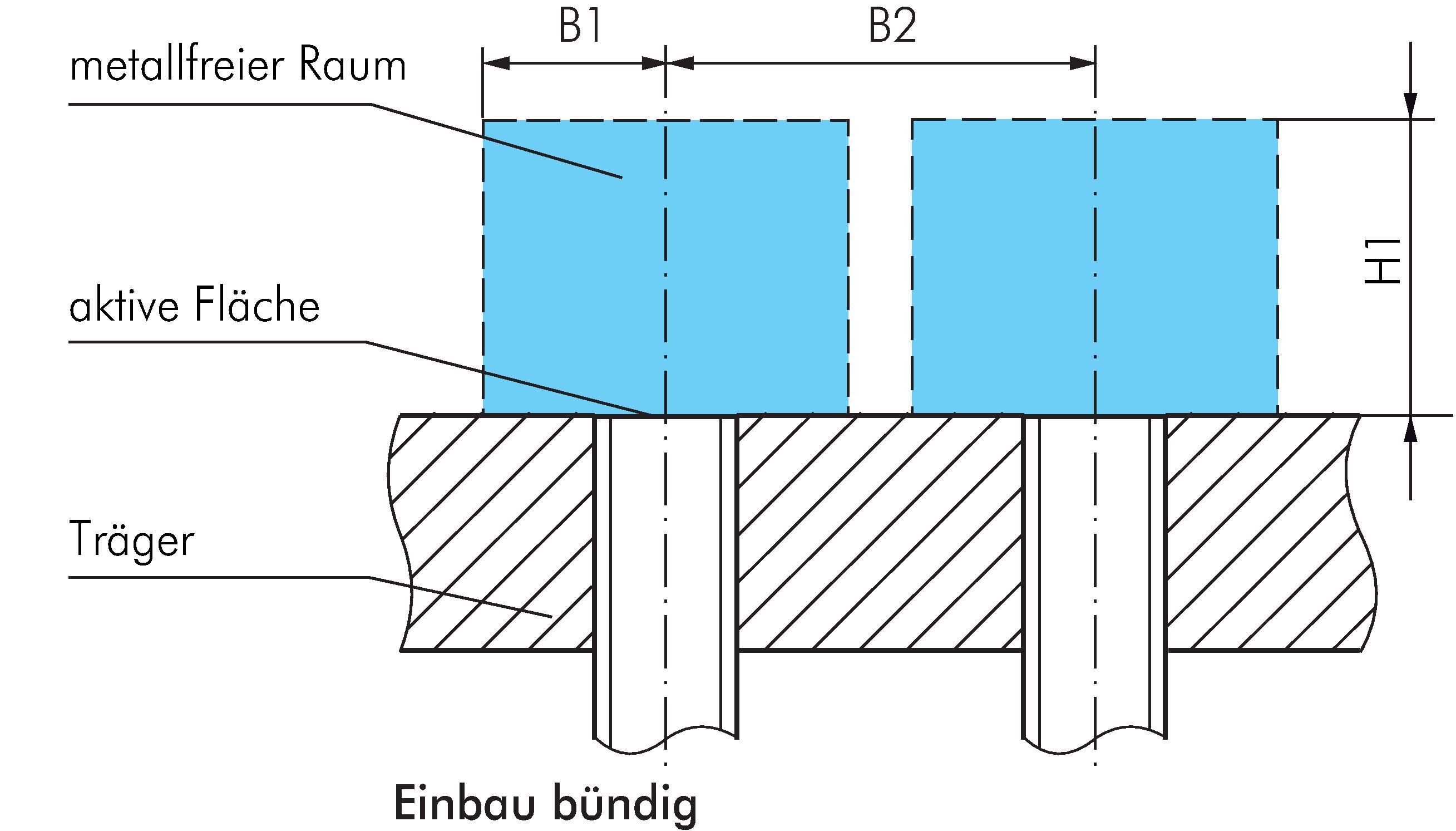

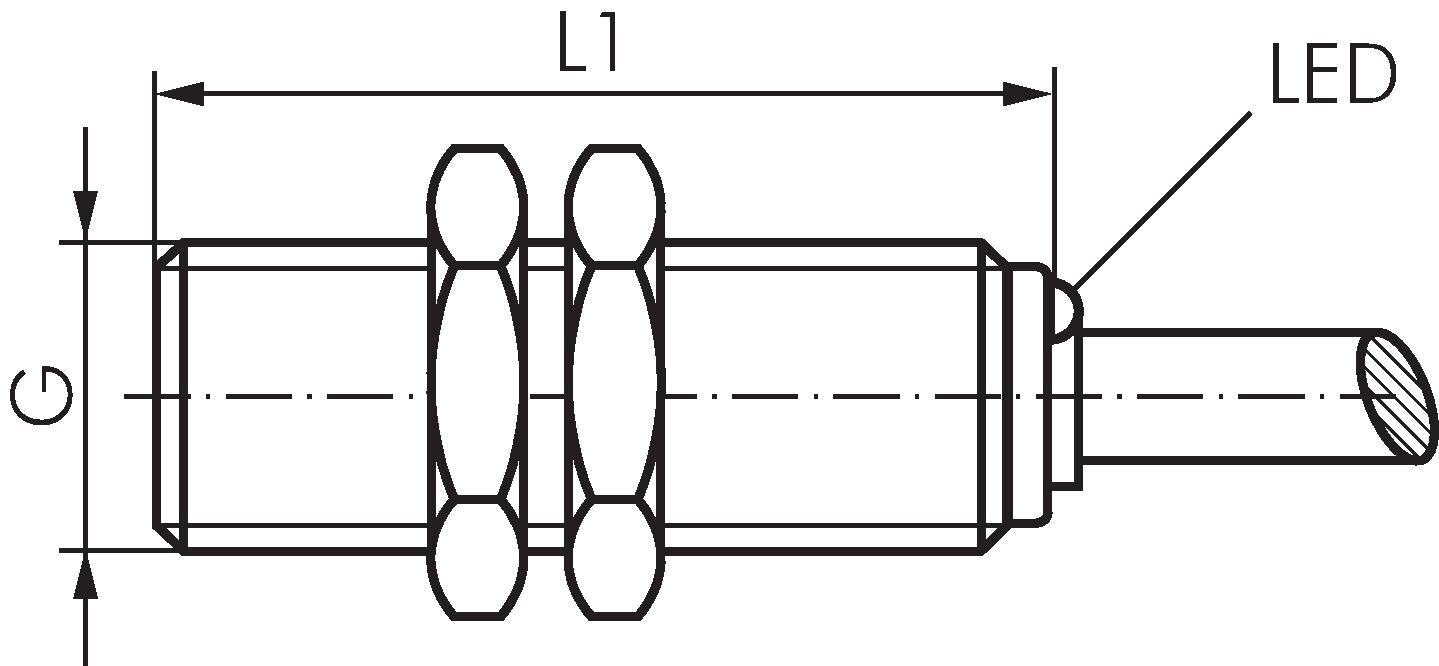

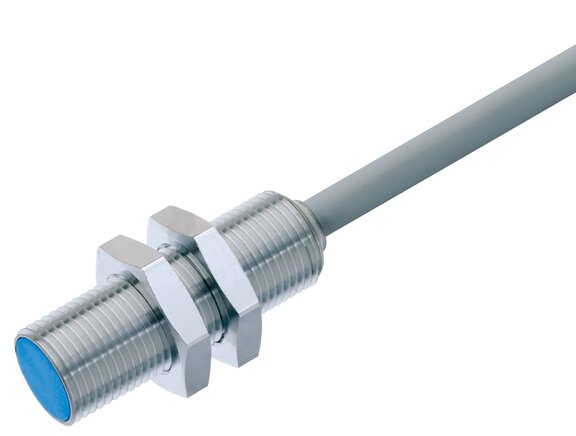

Exemplary representation: Inductive proximity switch, flush mountable, with cable

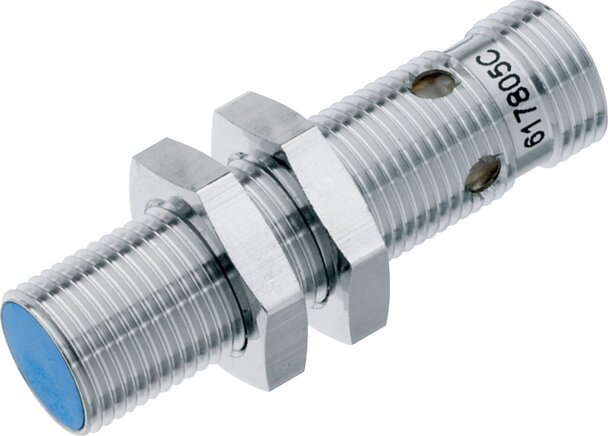

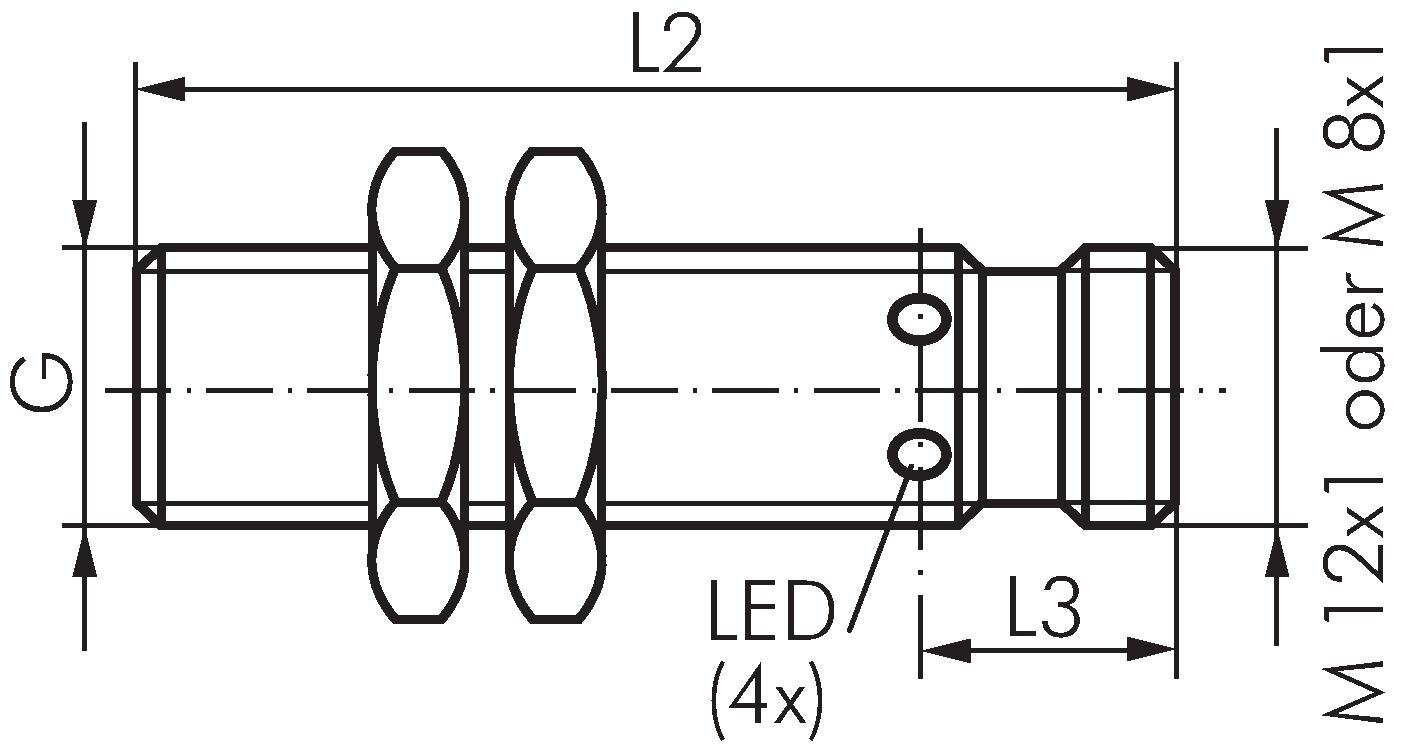

Exemplary representation: Inductive proximity switch, flush mountable, with connector

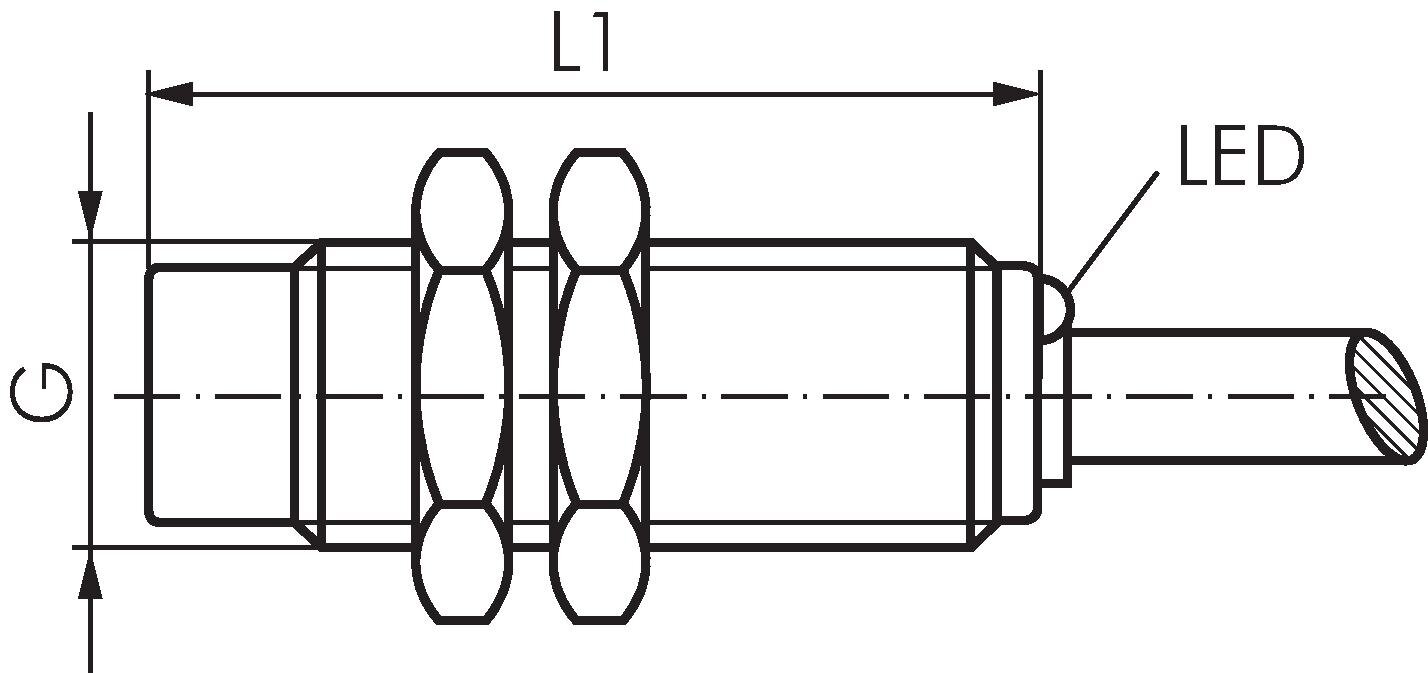

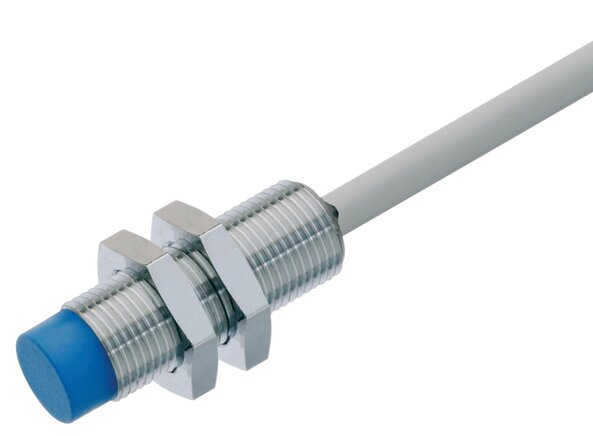

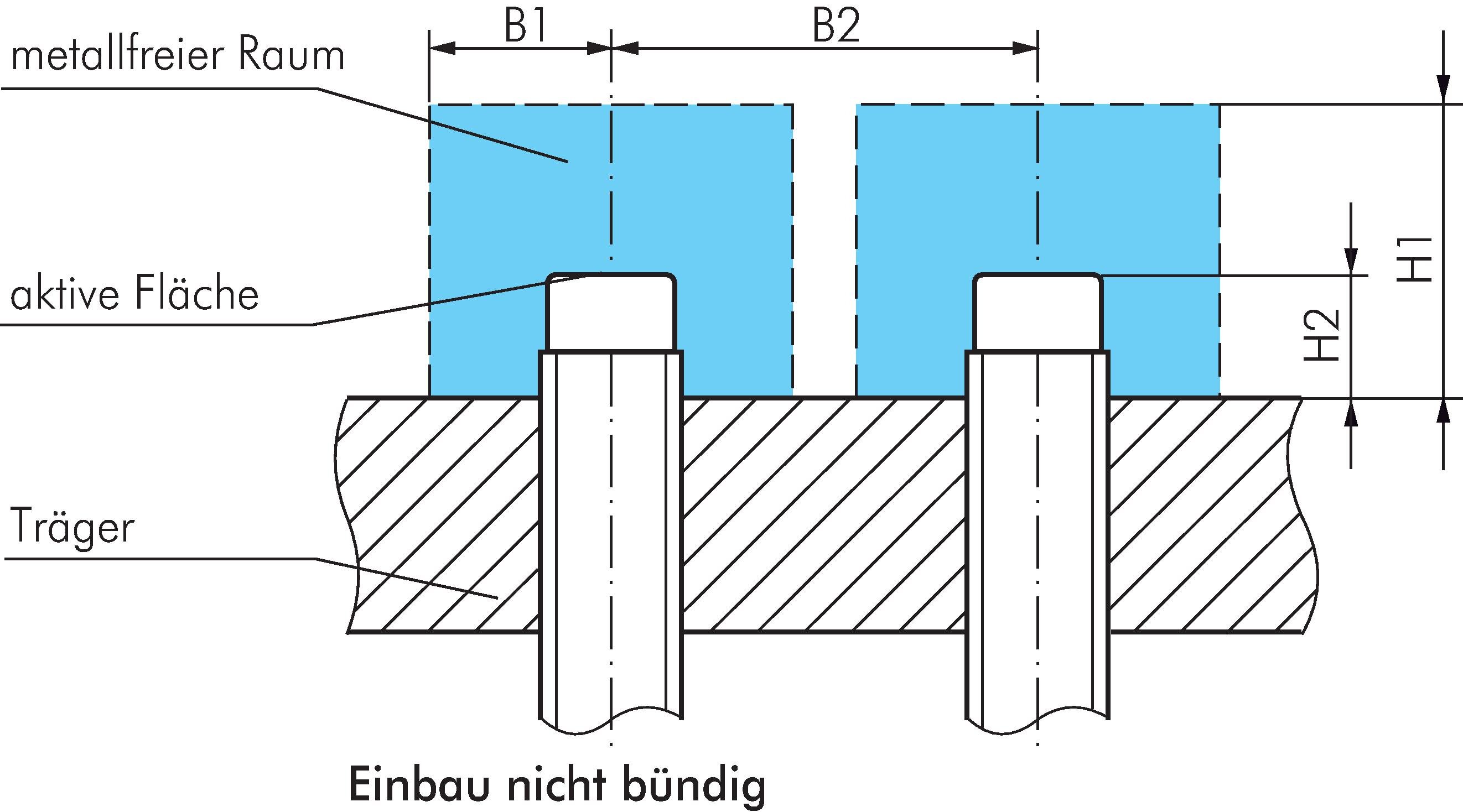

Exemplary representation: Inductive proximity switch, non-flush mountable, with cable

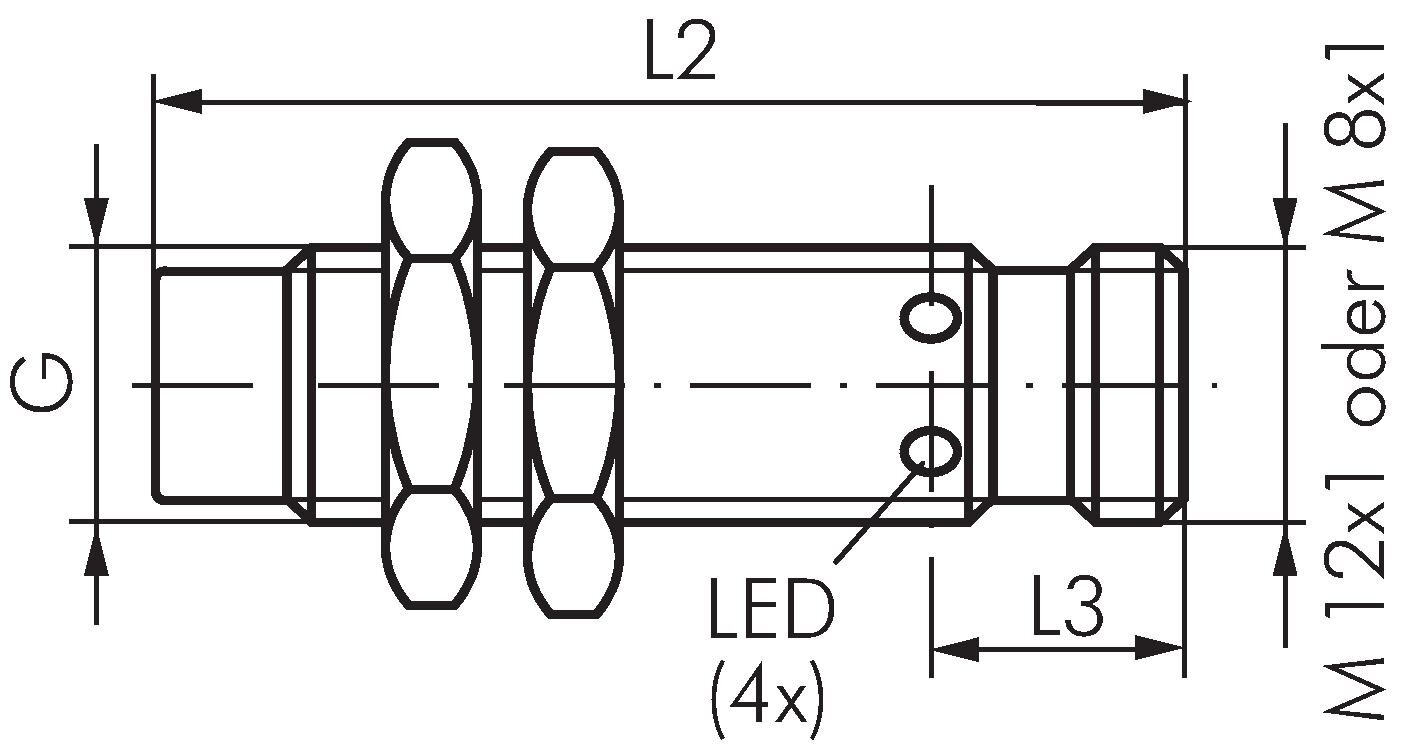

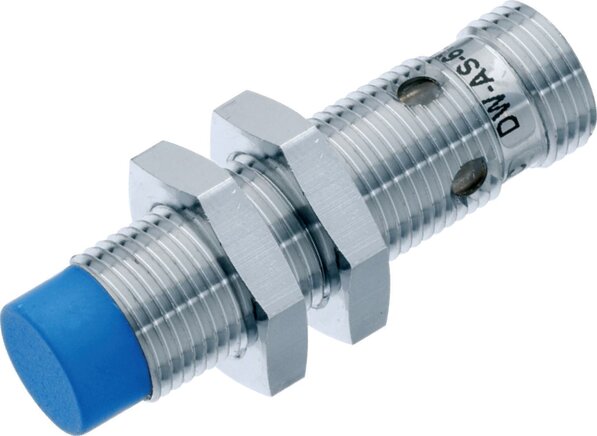

Exemplary representation: Inductive proximity switch, non-flush mountable, with connector

Schematic symbol: M 12 plug (A-coded, 4-pole)

Materials:

Body: nickel-plated / chrome-plated brass or stainless steel, sensor surface: plastic

Temperature range:

-25 to +70 °C

Protection class:

IP 67

Operating voltage:

10 to 30 V (DC)

Control output (PNP):

1 switching output (normally open), max. 200 mA

Switching capacity:

max. 6 W

Switching status indicator:

LED, orange

Protection circuit:

Short-circuit protection, induction protection, reverse polarity protection

Advantages:

•IO link compatible,
•outstanding value

{{ $t('shop.all.dokumente') }}:

Catalogue page Atlas 9 (Page 888) atlas9_seiten/888.pdf

Inductive proximity switch (M 5 - M 8 - M 12 - M 18 - M 30), universal:

{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}

SIN M5-B-0,8

Ind. proximity switch, M 5, SN0,8 - Cable (2 m)

112,10€ incl. VAT

Connection	Version	Design	Safety distance (SN) [mm]
Cable (2 m)	flush installable, NO contact	M 5	0,8

SIN M8-B-1,5

Ind. proximity switch, M 8, SN1,5 - Cable (2 m)

73,15€ incl. VAT

Connection	Version	Design	Safety distance (SN) [mm]
Cable (2 m)	flush installable, NO contact	M 8	1,5

SIN M12-B-2

Ind. proximity switch, M 12, SN2 - Cable (2 m)

76,68€ incl. VAT

Connection	Version	Design	Safety distance (SN) [mm]
Cable (2 m)	flush installable, NO contact	M 12	2

SIN M12-B-2 L

Ind. proximity switch, M 12, SN2 - Cable (2 m)

76,68€ incl. VAT

Connection	Version	Design	Safety distance (SN) [mm]
Cable (2 m)	flush installable, NO contact	M 12	2

SIN M18-B-5

Ind. proximity switch, M 18, SN5 - Cable (2 m)

78,35€ incl. VAT

Connection	Version	Design	Safety distance (SN) [mm]
Cable (2 m)	flush installable, NO contact	M 18	5

SIN M18-B-5 L

Ind. proximity switch, M 18, SN5 - Cable (2 m)

78,35€ incl. VAT

Connection	Version	Design	Safety distance (SN) [mm]
Cable (2 m)	flush installable, NO contact	M 18	5

SIN M30-B-10

Ind. proximity switch, M 30, SN10 - Cable (2 m)

93,22€ incl. VAT

Connection	Version	Design	Safety distance (SN) [mm]
Cable (2 m)	flush installable, NO contact	M 30	10

SIN M8-NB-2,5

Ind. proximity switch, M 8, SN2,5 - Cable (2 m)

73,15€ incl. VAT

Connection	Version	Design	Safety distance (SN) [mm]
Cable (2 m)	non-flush installable, NO contact	M 8	2,5

SIN M12-NB-4

Ind. proximity switch, M 12, SN4 - Cable (2 m)

76,68€ incl. VAT

Connection	Version	Design	Safety distance (SN) [mm]
Cable (2 m)	non-flush installable, NO contact	M 12	4

SIN M12-NB-4 L

Ind. proximity switch, M 12, SN4 - Cable (2 m)

76,68€ incl. VAT

Connection	Version	Design	Safety distance (SN) [mm]
Cable (2 m)	non-flush installable, NO contact	M 12	4

SIN M18-NB-8

Ind. proximity switch, M 18, SN8 - Cable (2 m)

78,35€ incl. VAT

Connection	Version	Design	Safety distance (SN) [mm]
Cable (2 m)	non-flush installable, NO contact	M 18	8

SIN M18-NB-8 L

Ind. proximity switch, M 18, SN8 - Cable (2 m)

78,35€ incl. VAT

Connection	Version	Design	Safety distance (SN) [mm]
Cable (2 m)	non-flush installable, NO contact	M 18	8

SIN M30-NB-15

Ind. proximity switch, M 30, SN15 - Cable (2 m)

93,22€ incl. VAT

Connection	Version	Design	Safety distance (SN) [mm]
Cable (2 m)	non-flush installable, NO contact	M 30	15

SIN M8-B-1,5 S12

Ind. proximity switch, M 8, SN1,5 - M 12 plug (A-coded, 4-pole)

76,21€ incl. VAT

Connection	Version	Design	Safety distance (SN) [mm]
M 12 plug (A-coded, 4-pole)	flush installable, NO contact	M 8	1,5

SIN M12-B-2 S12

Ind. proximity switch, M 12, SN2 - M 12 plug (A-coded, 4-pole)

76,68€ incl. VAT

Connection	Version	Design	Safety distance (SN) [mm]
M 12 plug (A-coded, 4-pole)	flush installable, NO contact	M 12	2

SIN M12-B-2 S12 L

Ind. proximity switch, M 12, SN2 - M 12 plug (A-coded, 4-pole)

76,68€ incl. VAT

Connection	Version	Design	Safety distance (SN) [mm]
M 12 plug (A-coded, 4-pole)	flush installable, NO contact	M 12	2

SIN M18-B-5 S12

Ind. proximity switch, M 18, SN5 - M 12 plug (A-coded, 4-pole)

78,35€ incl. VAT

Connection	Version	Design	Safety distance (SN) [mm]
M 12 plug (A-coded, 4-pole)	flush installable, NO contact	M 18	5

SIN M18-B-5 S12 L

Ind. proximity switch, M 18, SN5 - M 12 plug (A-coded, 4-pole)

78,35€ incl. VAT

Connection	Version	Design	Safety distance (SN) [mm]
M 12 plug (A-coded, 4-pole)	flush installable, NO contact	M 18	5

SIN M30-B-10 S12

Ind. proximity switch, M 30, SN10 - M 12 plug (A-coded, 4-pole)

93,22€ incl. VAT

Connection	Version	Design	Safety distance (SN) [mm]
M 12 plug (A-coded, 4-pole)	flush installable, NO contact	M 30	10

SIN M8-NB-2,5 S12

Ind. proximity switch, M 8, SN2,5 - M 12 plug (A-coded, 4-pole)

76,21€ incl. VAT

Connection	Version	Design	Safety distance (SN) [mm]
M 12 plug (A-coded, 4-pole)	non-flush installable, NO contact	M 8	2,5
