Item group

High-pressure pressure reducer for gases, up to 414 bar

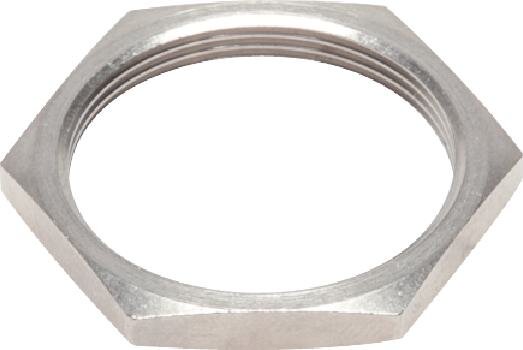

Exemplary representation: High-pressure pressure reducer, brass Exemplary representation: High-pressure pressure reducer, 1.4404 Exemplary representation: Switch panel nut, nickel-plated brass

Version:

Pressure reducer, not reversible (without secondary relieving)

Materials:

Body: brass or stainless steel, internal parts: stainless steel, spring cover: nickel-plated brass or stainless steel, rotary knob: PA, valve seat: PFA, switch panel nut: nickel-plated brass

Temperature range:

-40°C to +75°C (type 414 bar: -25°C to +75°C)

Pressure gauge connection:

2x NPT 1/4" (for inlet and outlet pressure)

Switch panel thread:

UN 1-5/16"-20 (Ø 33,4)

Media:

Compressed air, nitrogen, oxygen*, hydrogen, helium, (type 300 bar: additionally, carbon dioxide)

Scope of delivery:

Pressure reducer without a pressure gauge and panel union nut (closing plug for closing pressure gauge connections are included with the supplied kit)
*Oxygen max. 200 bar, **measured at maximum inlet pressure and maximum outlet pressure

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 616) atlas9_seiten/616.pdf
    Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
High-pressure pressure reducer for gases, up to 414 bar:
{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}
49,23€ incl. VAT
