Item group

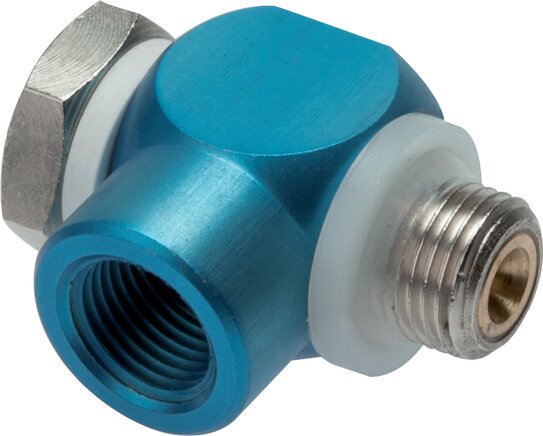

Flow control valves & Flow control silencers (aluminium), Female thread
Temperature range:
-20 to +80 °C
Operating pressure:
0,2 to 10 bar
Advantages:
•compact design,
•captive marking on key surface shows the function of the banjo bolt even after years of use (B-exhaust, A-supply, C-supply and exhaust)
•captive marking on key surface shows the function of the banjo bolt even after years of use (B-exhaust, A-supply, C-supply and exhaust)
Type B - exhaust regulating (standard):
Flow:
Restricted flow from thread to ring piece
Recommended use:
For cylinder from Ø 16 mm
Advantages:
•Good operating options without jumping,
•Smooth operation,
•Forward and return strokes possible at different speeds
•Smooth operation,
•Forward and return strokes possible at different speeds
Type A - supply air regulating (special version):
Flow:
Restricted flow from the ring piece to the thread
Recommended use:
For small cylinder Ø and short strokes (small volumes)
Advantages:
•even small air volumes can be controlled,
•forward and return strokes at different speeds possible
•forward and return strokes at different speeds possible
Type C - supply and exhaust air control (special version):
Flow throttled in both directions
Recommended use:
For small and single-acting cylinder
Advantages:
•Inlet and return flow same speeds
Disadvantages:
•may cause the cylinder to jump
Materials:
Banjo bolt: nickel-plated brass, banjo: anodized aluminium, seals: NBR, sealing and spacer ring: plastic
{{ $t('shop.all.dokumente') }}:
Catalogue page Atlas 9 (Page 798) atlas9_seiten/798.pdf
