Item group

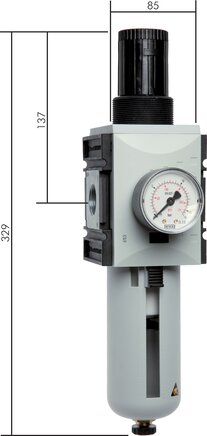

Filter regulators - Futura model series 4, 13000 l/min
Version:
Self-relieving pressure regulator with additional filtering using the centrifugal principle and sintered filter
Materials:
Body: PA 66 GF60, spring hood: POM, diaphragms and seals: NBR, condensate container: polycarbonate
Temperature range:
-10 to +50 °C
Input pressure:
1.5 - 16 bar (model series 0: 1.5 - 12 bar)
Condensate draining:
semi-automatic**
Pressure gauge connection:
G 1/4" (model series 0: G 1/8")
Pore width in the filter:
5 µm
Media:
Compressed air, neutral gases
Advantages:
•Automatic venting in the event of overpressure on the secondary side,
•Easy assembly of individual components using coupling kits within a model series,
•Hand wheel can be locked by pressing down on it and bolted with a lock - please use VHS 20 (model series 0 cannot be locked).
•Easy assembly of individual components using coupling kits within a model series,
•Hand wheel can be locked by pressing down on it and bolted with a lock - please use VHS 20 (model series 0 cannot be locked).
Max. condensate amount:
87 cm³
Switch panel thread:
M 50x1,5
Scope of delivery:
Pressure regulator including 50 mm pressure gauge
Flow:
13000 l/min, secondary relieving: 120 l/min
Own air consumption:
Max. 1,5 l/min
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU
Optional:
Version with metal bowl and inspection tube -M, automatic discharge -AM, automatic discharge closed when not pressurised (0 to 16 bar) -AMNC, Safety version: with upstream lockable ball valve and filler valve -Si
*Standard series, please prefer for use, since the pressure control range is universally usable, **As soon as the input pressure drops below the min. input pressure, the drain valve opens automatically. By screwing the drain screw tight, the semi-automatic opening of the drain valve can be prevented.
{{ $t('shop.all.dokumente') }}:
Catalogue page Atlas 9 (Page 565) atlas9_seiten/565.pdf
Documentation doku/futura.pdf
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
Documentation doku/futura.pdf
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
