Item group

Electronic pressure switches - 15 mm width, up to 10 bar (will be discontinued)

Name: electronic pressure switch -1 to 0 bar, 3 m cable (4-wire)
Brand: Landefeld
SKU: VAKUS EC
Price: 274.06 EUR
Availability: InStock

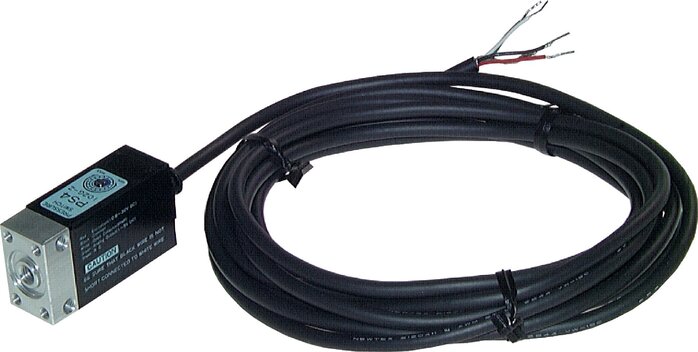

Exemplary representation: Electronic pressure switch, compact series, with 3 m cable

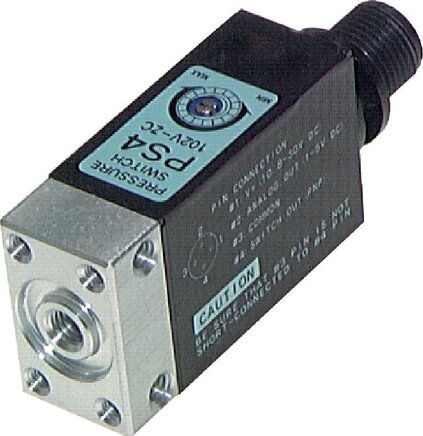

Exemplary representation: Electronic pressure switch, compact series, with M 12 plug (4-pin)

Schematic symbol: M 12 plug (A-coded, 4-pole)

Materials:

Housing: Polycarbonate, threaded connection: Aluminium

Temperature range:

-20 to +70 °C

Protection class:

IP 40

Power supply:

10,8 to 26,4 V (DC)

Power input:

30 mA

Control output (PNP):

1 switching output (normally open, switching point and hysteresis adjustable via potentiometer), max. 80 mA (DC)

Switching accuracy:

± 3 % of span

Switch-back difference (hysteresis)

1 to 15 % of the value that has been set (can be adjusted via potentiometer)

analogue output:

1 - 5 V

Accuracy of the analogue output:

± 0,4 V

Connection:

M 5 (FT) or flange Ø 8 x 13 mm, 4x M 3 female thread (19 x 10 mm)

Media:

Compressed air, non-aggressive gases, vacuum

Advantages:

•no moving parts, hence no-wear measurement,
•switching point and hysteresis adjustable with a potentiometer
•intuitive and fast operation (VDMA standard),
•connection via flange or M 5 female thread

{{ $t('shop.all.dokumente') }}:

Catalogue page Atlas 9 (Page 690v) atlas9_seiten/690v.pdf
Documentation doku/drse.pdf

Electronic pressure switches - 15 mm width, up to 10 bar (will be discontinued):

{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}

VAKUS EC

electronic pressure switch -1 to 0 bar, 3 m cable (4-wire)

274,06€ incl. VAT

Electrical connection	Setting range [bar]	Safe at overpressure up to [bar]
3 m cable (4-wire)	-1 to 0	3

DRSE 10 K

electronic pressure switch -1 to 10 bar, 3 m cable (4-wire)

274,06€ incl. VAT

Electrical connection	Setting range [bar]	Safe at overpressure up to [bar]
3 m cable (4-wire)	-1 to 10	16

VAKUS ECST

electronic pressure switch -1 to 0 bar, M 12 plug (A-coded, 4-pole)

274,06€ incl. VAT

Electrical connection	Setting range [bar]	Safe at overpressure up to [bar]
M 12 plug (A-coded, 4-pole)	-1 to 0	3

DRSE 1 KST

electronic pressure switch 0 to 1 bar, M 12 plug (A-coded, 4-pole)

274,06€ incl. VAT

Electrical connection	Setting range [bar]	Safe at overpressure up to [bar]
M 12 plug (A-coded, 4-pole)	0 - 1	3
