Item group
Elbow coupling plugs with hose screw connection, Model series MC (will be discontinued)
Plug diameter:
7,8 mm
Flow air (water)*:
50 - 500 l/min (0,4 - 6,5 l/min)
Function:
Coupled by plugging the plug into the sleeve until you hear a “click”. Pressing the release button (for plastic couplings with a tube connection protected against accidental unlocking) releases the plug once again. It is possible to combine coupling plugs and coupling sockets with and without a shut-off valve, and made of different materials as desired. The shut-off valve prevents the medium from spilling out when uncoupled.
Type POM:
Materials:
Body and valves: POM (raw material in accordance with FDA), valve springs: Stainless steel AISI 316, seals: NBR, release button: AISI 301, bulkhead nut: nickel-plated brass
Temperature range:
-40°C to max. +80°C
Operating pressure:
-0.8 to 8.3 bar
Media:
Compressed air, water, alcohol, glycol, mineral oils, petrol, oxygen**, carbon dioxide, mild chemicals
Sterilisation possible with:
Formalin, isopropyl alcohol, ethyl alcohol
Operating range:
For general applications. High resistance to mineral oils.

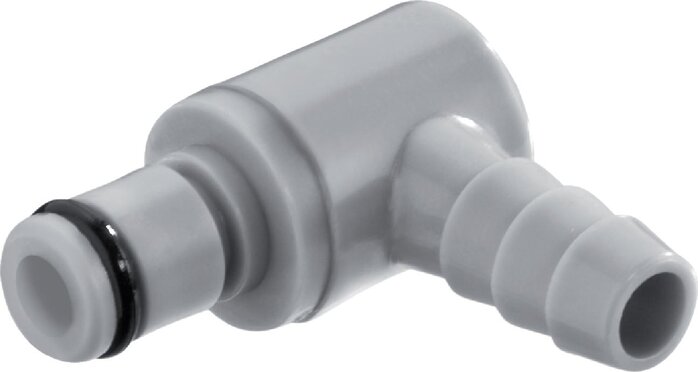

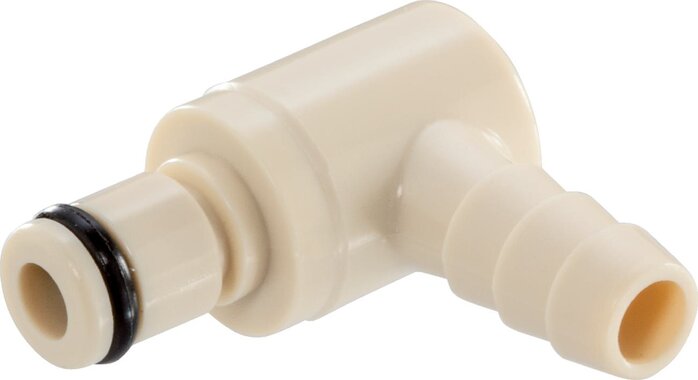

Type polypropylene (please indicate colour: beige = PPC or grey = PPL):
Materials:
Body and valves: polypropylene (raw material in accordance with FDA), valve springs: Stainless steel AISI 316, seals: EPDM, release button: AISI 301, bulkhead nut: nickel-plated brass
Temperature range:
0°C to max. +70°C
Operating pressure:
-0.8 to 8,3 bar (>+27°C observe pressure reductions: +40°C: max. 7 bar,+ +50°C: max. 6,5 bar,+ 60°C: max. 5,9 bar,+ +70°C: max 5.2 bar)
Media:
Compressed air, water, many acids and alkaline solutions, alcohol, glycol, MEK, oxygen**, ozone, carbon dioxide, many chemicals
Sterilisation possible with:
Formalin, isopropyl alcohol, ethyl alcohol, ethylene oxide, gamma radiation
Operating range:
Suited for use with many chemicals. Not resistant to mineral oils.
Type chromium-plated brass:
Materials:
Body: Chromium-plated brass (food safe), valves: POM (raw material in accordance with FDA), valve springs: Stainless steel AISI 316, seals: NBR, release button: AISI 301, bulkhead nut: nickel-plated brass
Temperature range:
-40°C to max. +80°C
Operating pressure:
-0.8 to 17.3 bar
Media:
Compressed air, alcohol, glycol, mineral oils, petrol, oxygen**, carbon dioxide
Sterilisation possible with:
Formalin, isopropyl alcohol, ethyl alcohol, gamma radiation, heating to max. +121°C (uncoupled)
Operating range:
For applications with increased pressures or mechanical loads (e.g. due to frequent coupling). High resistance to mineral oils.
Compatible with*****:
CPC Colder PMC, CPC Colder PMC12, CPC Colder MC, LinkTech series 20AC, LinkTech series 20PP, LinkTech series 20CB
*When pressure drops by 1 bar (depending on configuration of coupling combination: with/without valve, connection dimension, ... is the flow within the indicated range), **be sure to clean before using with oxygen.
*****Names and designations are in part registered trademarks of the respective manufacturers.
*****Names and designations are in part registered trademarks of the respective manufacturers.
{{ $t('shop.all.dokumente') }}:
Catalogue page Atlas 9 (Page 312) atlas9_seiten/312.pdf
{{ $t('shop.display.artikelgruppe.mehr_informationen') }}
{{ $t('shop.display.artikelgruppe.weniger_informationen') }}
{{ $t('shop.display.artikelgruppe.filtern') }}
Elbow coupling plugs with hose screw connection, Model series MC (will be discontinued):
{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }} KSSW 3,2 MC MSV BA
Elbow coupling plug (MC) with hose screw connection, Chrome-plated brass
{{ $t('shop.all.unverbindliche_richtwerte') }}
