Item group

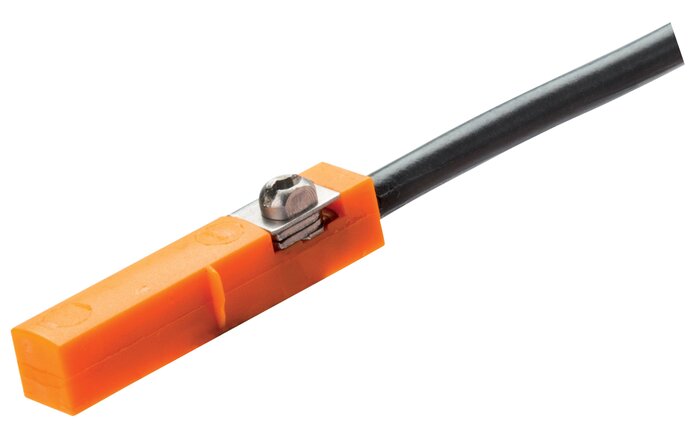

Cylinder switches with ATEX approval - T-groove (5 mm, not continuous)Type B
Materials:
Body: plastic, threaded part: Stainless steel
Connecting line:
PUR cable
Protection class:
IP 67
Temperature range:
-20 to +60 °C
ATEX device identification:
II 3D Ex tc IIIC T125°C Dc X & II 3G Ex nA IIC T4 Gc X
Note:
The proximity switch with light emitting diode is used for the contactless position indicator of cylinders with magnetic pistons. This sensor can be used from the top in the T-groove and clamped in the T-groove using a slotted screw.
Suitable:
For cylinders with not continuous and continuous T groove (5 mm)
Advantages:
•can be mounted from above in T-groove,
•no fastening material required,
•one switch fits many products of most European brands (e.g. Festo)
•ATEX approval Group II, Cat. 3D / 3G
•no fastening material required,
•one switch fits many products of most European brands (e.g. Festo)
•ATEX approval Group II, Cat. 3D / 3G
{{ $t('shop.all.dokumente') }}:
Catalogue page Atlas 9 (Page 885) atlas9_seiten/885.pdf
Documentation: Tips for selecting the right cylinder switch doku/leitfadenzurauswahldesrichtigenzylinderschalters.pdf
Documentation: Tips for selecting the right cylinder switch doku/leitfadenzurauswahldesrichtigenzylinderschalters.pdf
{{ $t('shop.display.artikelgruppe.mehr_informationen') }}
{{ $t('shop.display.artikelgruppe.weniger_informationen') }}
{{ $t('shop.display.artikelgruppe.filtern') }}
Cylinder switches with ATEX approval - T-groove (5 mm, not continuous)Type B:
{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }} ZSB 33 EX
T-groove (5mm) cylinder switch, fully electronic sensor (reverse polarity protection / short circuit
