Item group

Cylinder switches - T-groove (5mm, not continuous), Type B

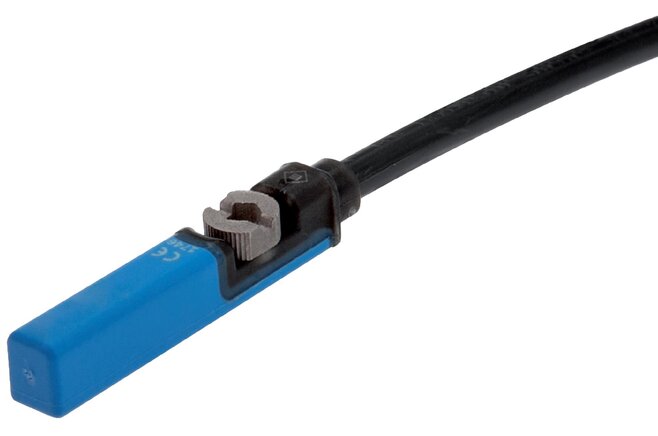

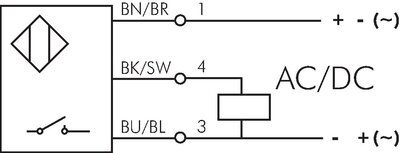

Exemplary representation: Cylinder switch, T-slot Schematic symbol: 3-wire reed sensor Schematic symbol: fully electronic sensor Schematic symbol: M 8 plug (3-pin)

Materials:

Body: plastic, threaded part: Stainless steel

Connecting line:

PVC cable (with cable plug M 8: PUR cable)

Protection class:

IP 67

Temperature range:

-30°C to max. +70°C (M 8 with cable plug: -30°C to max. +80°C)

Note:

The proximity switch with light emitting diode is used for the contactless position indicator of cylinders with magnetic pistons. This sensor can be used from the top in the T-groove and clamped in the T-groove using a slotted screw.

Suitable:

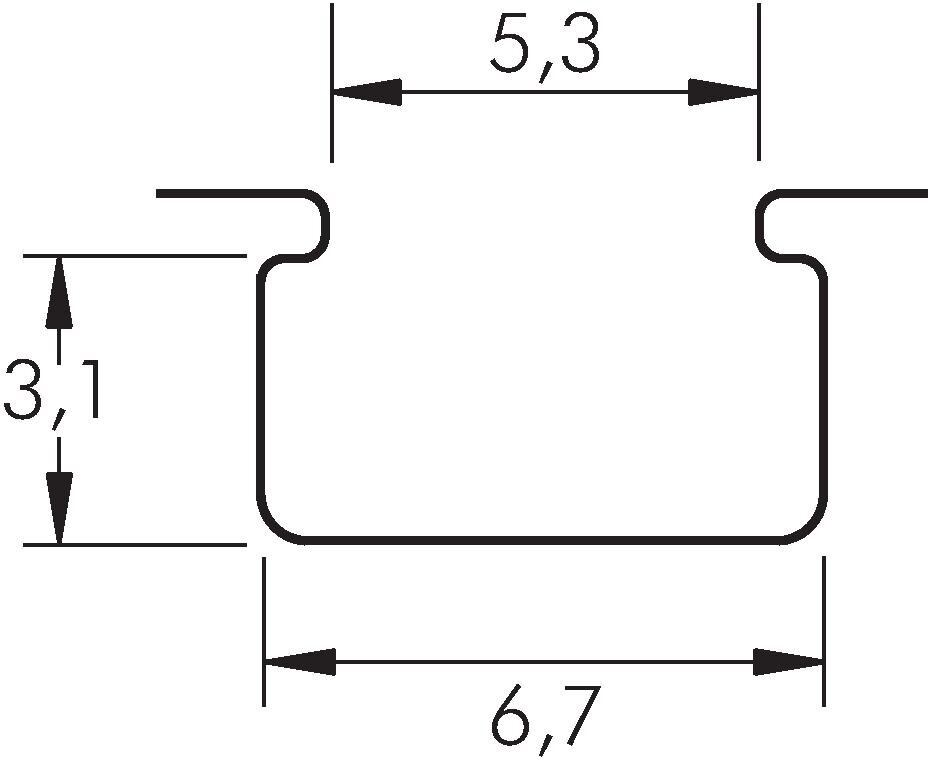

For cylinders with not continuous and continuous T groove (5 mm)

Advantages:

•can be mounted from above in the T-groove,
•no mounting material required,
•one switch fits many products of most European brands (e.g. Festo).

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 885) atlas9_seiten/885.pdf
    Documentation: Tips for selecting the right cylinder switch doku/leitfadenzurauswahldesrichtigenzylinderschalters.pdf
