Item group

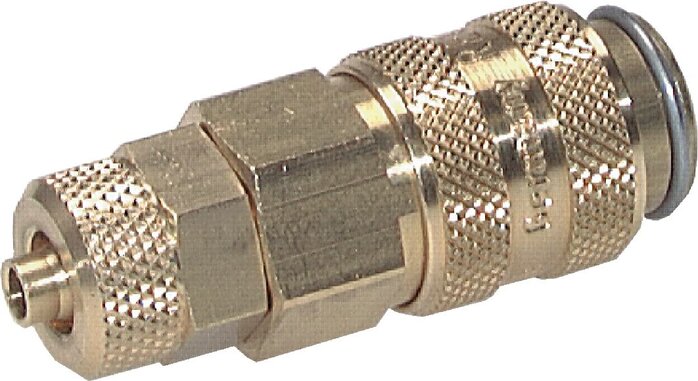

Coupling sockets With Locking nut, NW 5

Materials:

Body: brass, nickel-plated brass, hardened steel or stainless steel 1.4305, seal: NBR (stainless steel: FKM)

Temperature range:

-20°C to max. +100°C (Stainless steel: -15°C to max. +200°C)

Operating pressure:

-0,95 to 35 bar

Flow*:

510 l/min (in conjunction with blocking coupling plug -BA: 330 l/min)

Note:

Coupling plugs with valve for double-sided shut off (-BA) can only be used with the special coupling sockets (-BA) provided for them.

Compatible with**:

Rectus (21, 90), Camozzi, EWO, KANI, Festo (KD3/KS3), IMI-Norgren (233), Aventics (CP1-NW 5)

Optional:

Body made from 1.4404 -ES4A, usable for plug shut-off on both sides -BA, red sliding sleeve -RO, green sliding sleeve -GR, blue sliding sleeve -BL, black sliding sleeve-SCH
*6 bar input pressure, 0,5 bar pressure difference
**Names and designations are partly trademarks of the manufacturers entered.

Documents:

More information Less information
Coupling sockets With Locking nut, NW 5:
20 of 26 articles
€7.78 incl. VAT
Immediately available
€7.78 incl. VAT
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
€199.99 incl. VAT
Immediately available
€222.40 incl. VAT
Immediately available
€20.55 incl. VAT
Immediately available
€20.55 incl. VAT
Immediately available
€46.37 incl. VAT
Immediately available
€46.35 incl. VAT
Immediately available
€231.01 incl. VAT
Immediately available
€189.71 incl. VAT
Immediately available
€268.81 incl. VAT
Immediately available
€268.77 incl. VAT
Immediately available
€25.54 incl. VAT
Immediately available
€28.16 incl. VAT
Immediately available
€28.16 incl. VAT
Immediately available
€28.16 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
