Item group

Coupling sockets of POM / PVDF with male thread, NW 7.2

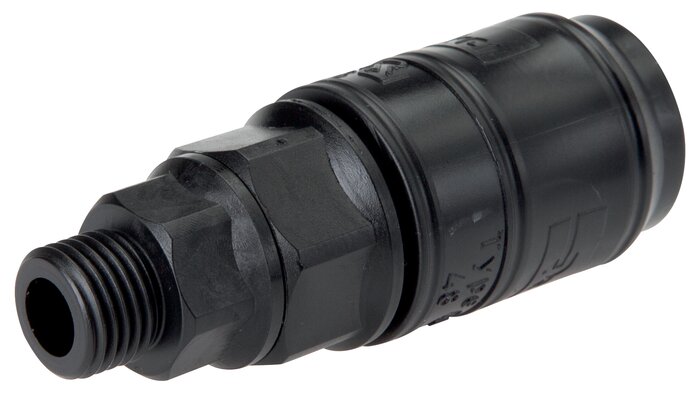

Type POM:

Materials:

Body: POM black, springs and valve: Stainless steel 1.4310, seals: NBR

Temperature range:

-20°C to max. +80°C

Operating pressure:

0 - 10 bar

Flow of air (water)**

1100 l/min (17 l/min), in conjunction with blocking coupling plug -BA: 770 l/min (12 l/min)

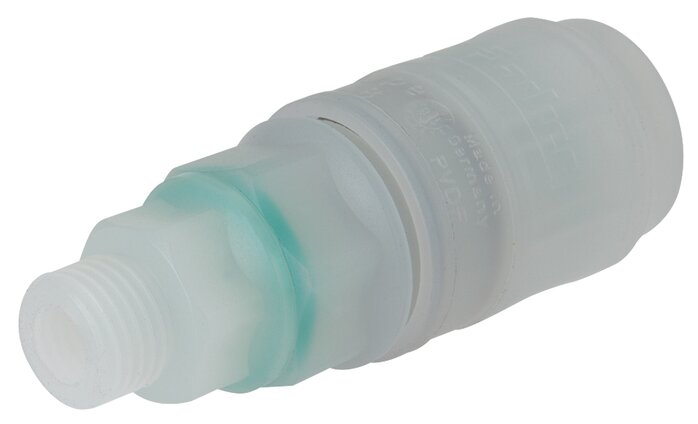

Type PVDF:

Materials:

Body: PVDF natural, springs and valve: stainless steel 1.4571, seals: FKM

Temperature range:

-20°C to max. +120°C

Operating pressure:

0 - 8 bar

Flow of air (water)**

1100 l/min (17 l/min), in conjunction with blocking coupling plug -BA: 770 l/min (12 l/min)

Note:

Coupling sockets and coupling plugs (open or blocking action) can be combined at will. Cannot be combined with workshop couplings NW 7.2!

Compatible with*:

Rectus (48)
*Some names and designations are registered trademarks of the respective manufacturers, **6 bar inlet pressure, 0.5 bar pressure difference

Documents:

More information Less information

Filter items

Diamètre de piston [mm]
Please select
Course [mm]
Please select
exécution
Please select
A (filetage de tige de piston)
Please select
more filters
Coupling sockets of POM / PVDF with male thread, NW 7.2:
6 of 6 articles
€37.26 incl. VAT
Immediately available
€37.26 incl. VAT
Immediately available
€40.70 incl. VAT
Immediately available
€81.65 incl. VAT
Immediately available
€81.16 incl. VAT
Immediately available
€91.28 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
