Coupling plugs with hose screw connection & bulkhead thread, Model series SM (will be discontinued)

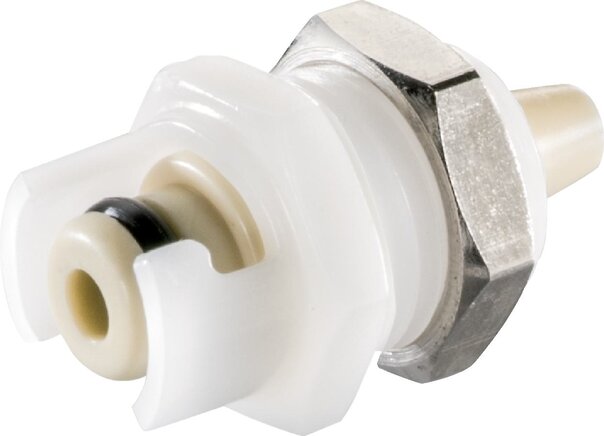

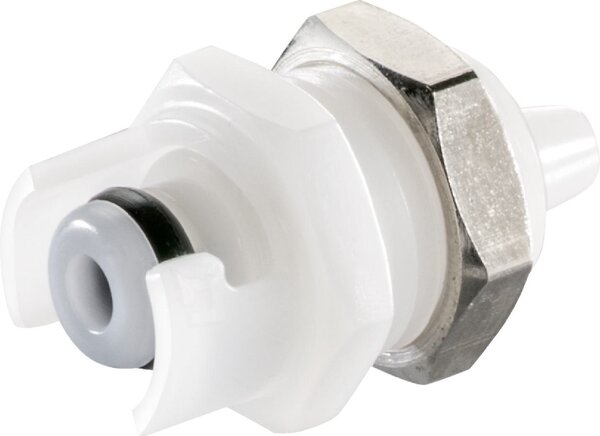

Exemplary representation: Coupling plug with grommet & bulkhead thread, POM Exemplary representation: Coupling plug with grommet & bulkhead thread, polypropylene

Plug diameter:

6,1 mm

Flow air (water)*:

40 - 200 l/min (0,3 - 2,6 l/min)

Operating pressure:

-0,8 to 7 bar

Function:

Coupled by screwing the plug into the sleeve until you hear a “click”. It is possible to combine coupling plugs and coupling sockets with and without a shut-off valve and made of different materials as desired. The shut-off valve prevents the medium from spilling out when uncoupled. Ideally used for luer connectors in the medical technology field. When coupled, the hose screw connections inside the bayonet connectors can be rotated freely and thus prevent the hose from becoming bent or twisted.

Type POM:

Materials:

Body and valves: POM (raw material in accordance with FDA), valve springs: Stainless steel AISI 316, seals: NBR, bayonet connector: POM (raw material in accordance with FDA), bulkhead nut: nickel-plated brass

Temperature range:

-40°C to max. +80°C

Media:

Compressed air, water, alcohol, glycol, mineral oils, petrol, oxygen**, carbon dioxide, mild chemicals

Sterilisation possible with:

Formalin, isopropyl alcohol, ethyl alcohol

Operating range:

For general applications. High resistance to mineral oils.

Polypropylene type:

Materials:

Body and valves: polypropylene (raw material in accordance with FDA), valve springs: stainless steel AISI 316, seals: EPDM, bayonet connector: POM (raw material in accordance with FDA), bulkhead nut: nickel-plated brass

Temperature range:

0°C to max. +80°C

Media:

Compressed air, water, many acids and alkaline solutions, alcohol, glycol, MEK, oxygen**, ozone, carbon dioxide, many chemicals

Sterilisation possible with:

Formalin, isopropyl alcohol, ethyl alcohol, ethylene oxide, gamma radiation

Operating range:

Suited for use with many chemicals. Not resistant to mineral oils.

Compatible with****:

CPC Colder SMC, LinkTech series 10

Bulkhead thread:

UNF 7/16"-24 (Ø 11.2 mm), max. bulkhead thickness: 5.3 mm

Note:

Hose cannot be mounted on clamp due to lack of space, only attached to the nozzle instead.
*When pressure drops by 1 bar (depending on configuration of coupling combination: with/without valve, connection dimension, ... is the flow within the indicated range), **be sure to clean before using with oxygen.
****Names and designations are in part registered trademarks of the respective manufacturers.
****max. wall thickness of the hose: 0.7 mm
