Item group

Coupling plug With Locking nut, NW 7.2

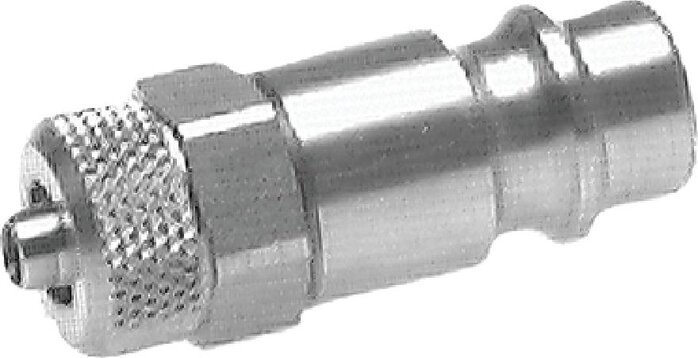

Exemplary representation: Coupling plug with union nut, brass Exemplary representation: Coupling plug with union nut, 1.4305 Exemplary representation: Special version BA detailed view: Plug dimensions

Materials:

Body: brass, nickel-plated brass, hardened steel or stainless steel 1.4305, seal: NBR (stainless steel: FKM)

Temperature range:

-20°C to max. +100°C (stainless steel: -15°C to max. +200°C, plastic sleeve max. +80°C)

Operating pressure:

-0,95 to 35 bar

Flow***:

Standard: 1100 l/min, ball lock: 1850 l/min, ball lock & plastic sleeve: 2100 l/min (each coupling in conjunction with blocking coupling plug -BA: 800 l/min)

Note:

Coupling plugs with valve for double-sided shut off (-BA) can only be used with the special coupling sockets (-BA) provided for them.

Compatible with**:

Rectus (25, 26, 1600, 1625), TEMA (1600), CEJN (320), JWL (520, 530, 560), Legris (25, 26), Parker (PE, PEF), Prevost (E ... 07), Festo (KD4 / KS4 / NPHS), IMI-Norgren (238), Aventics (CP1-NW 7 / 7.8) and many other German brands

Optional:

Body made from 1.4404 -ES4A, with valve for double-sided shut-off -BA
***6 bar input pressure, 0,5 bar pressure difference
**Names and designations are partly trademarks of the manufacturers entered.

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 288) atlas9_seiten/288.pdf

{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
Coupling plug With Locking nut, NW 7.2:
{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}
2,94€ incl. VAT
3,40€ incl. VAT
4,28€ incl. VAT
6,89€ incl. VAT
55,54€ incl. VAT
56,00€ incl. VAT
32,83€ incl. VAT
32,83€ incl. VAT
36,62€ incl. VAT
279,86€ incl. VAT
279,86€ incl. VAT
