Item group

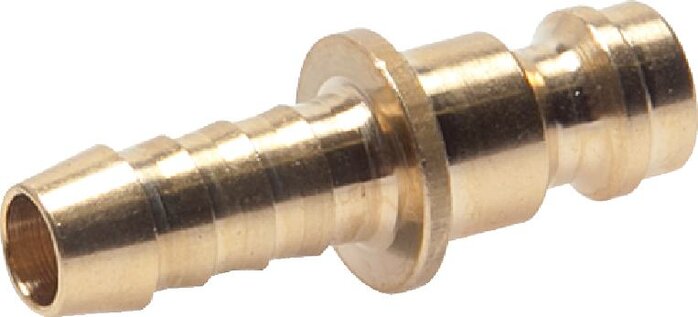

Coupling plug with hose screw connection, NW 5

Materials:

Body: brass, nickel-plated brass, hardened steel or stainless steel 1.4305, seal: NBR (stainless steel: FKM)

Temperature range:

-20°C to max. +100°C (Stainless steel: -15°C to max. +200°C)

Operating pressure:

-0,95 to 35 bar

Flow*:

510 l/min (in conjunction with blocking coupling plug -BA: 330 l/min)

Note:

Coupling plugs with valve for double-sided shut off (-BA) can only be used with the special coupling sockets (-BA) provided for them.

Compatible with**:

Rectus (21, 90), Camozzi, EWO, KANI, Festo (KD3/KS3), IMI-Norgren (233), Aventics (CP1-NW 5)

Note:

Distinctive plugs also fit into uncoded coupling sockets

Optional:

Body made of 1.4404 -ES4A, with valve for shut-off on both sides -BA, red colour coding -RO, green colour coding -GR, blue colour coding -BL, black colour coding -SCH
*6 bar input pressure, 0,5 bar pressure difference
**Names and designations are partly trademarks of the manufacturers entered.

Documents:

More information Less information

Filter items

Material
Please select
Premer mehke cevi (znotraj)
Please select
obojestransko zaporen
Please select
Izvedba
Please select
more filters
Coupling plug with hose screw connection, NW 5:
18 of 38 articles
€6.87 incl. VAT
Immediately available
€6.87 incl. VAT
Immediately available
€6.87 incl. VAT
Immediately available
€6.87 incl. VAT
Immediately available
€17.87 incl. VAT
Immediately available
Immediately available
Immediately available
Immediately available
€114.36 incl. VAT
Immediately available
€118.23 incl. VAT
Immediately available
€117.92 incl. VAT
Immediately available
€117.92 incl. VAT
Immediately available
€133.26 incl. VAT
Immediately available
€169.30 incl. VAT
Immediately available
€176.63 incl. VAT
Immediately available
€10.25 incl. VAT
Immediately available
€10.25 incl. VAT
Immediately available
€10.25 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
