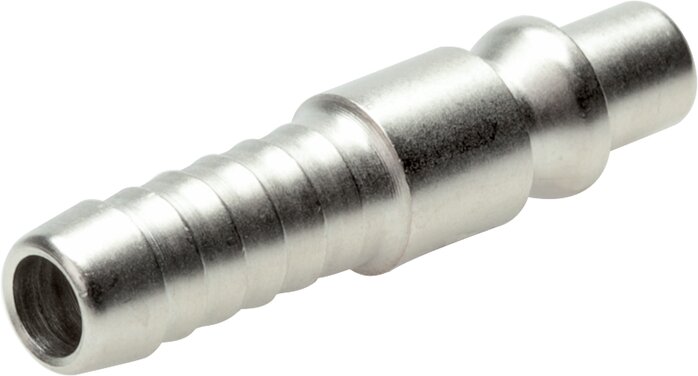

Coupling plug with hose screw connection, ARO / ORION NW 5,5

Materials:

Type Standard: Body and sliding sleeve: brass, seal: NBR, type ball lock: Body: nickel-plated brass, sliding sleeve: hardened steel, nickel-plated, seals: NBR

Temperature range:

-20 to +100 °C

Operating pressure:

-0,95 to 35 bar

Flow*:

550 l/min (ball lock type: 1140 l/min)

Note:

These quick connect couplings with ARO / ORION profile NW 5.5 are mainly used in Switzerland, Belgium, Holland and Luxembourg. Despite looking similar to the coupling sockets widely used in Germany of nominal width 7.2, these couplings are not compatible with them!

Advantages of the ball lock:

•easy uncoupling under pressure,
•robust connection between plug and socket

Compatible with**:

ARO (210), ORION (44510), Cejn (300), Rectus (14, 22), JWL (512, 522, 523, 572)
*6 bar input pressure, 0,5 bar pressure difference
**Names and designations are partly trademarks of the manufacturers entered.

Documents:

More information Less information
Coupling plug with hose screw connection, ARO / ORION NW 5,5:
10 of 10 articles
Immediately available
Immediately available
Immediately available
€1.62 incl. VAT
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
