Item group

Connecting cables, DIN EN 61076-2-101 (A-coded), M 12 (5-pole)

Name: Cable with M12 coupling, 4-wire, 3 m, straight
Brand: Landefeld
SKU: KAB M12 3 G
Price: 14.43 EUR
Availability: InStock

Exemplary representation: Connecting cable, A-coded, M 12 socket, straight

Description:

Pre-assembled connecting cables with M 12 female connector (M 12x1 female thread to DIN EN 61076-2-101, A-coded, 5-pin) on one end and loose cable ends or M 12 male connector (M 12x1 male thread to DIN EN 61076-2-101, A-coded, 5-pin) on the other

Temperature range:

-25 to +90 °C

Voltage:

max. 60 V AC/DC, max. 4 A

Protection class:

IP 67

Cable:

PUR cable, 4 or 5x 0.34 mm² (only for static applications)

Cable layout:

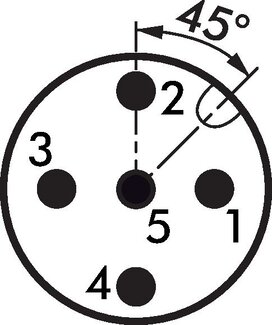

Pin 1 - brown, Pin 2 - white, Pin 3 - blue, Pin 4 - black, Pin 5 - grey (only present if 5-core)

Suitable:

These cables are preferred for use for connecting electronic pressure switches, inductive proximity switches, photo switches or as power supplies for valve clusters / valve terminals. The 5-pole socket fits M 12 plugs with 5 and 4 pins.

Documents:

Catalogue page Atlas 9 (Page 893) (PDF)

More information

Connecting cables, DIN EN 61076-2-101 (A-coded), M 12 (5-pole):

20 of 20 articles

KAB M12 3 G

Cable with M12 coupling, 4-wire, 3 m, straight

€14.43 incl. VAT

Quantity

pcs

Immediately available

Design	Cable end 1	Cable end 2	Cable length [MTR]
straight	M 12 socket (A-coded)	4 loose cable ends (Pin 1 to 4)	3

KAB M12 5 G

Cable with M12 coupling, 4-wire, 5 m, straight

€18.80 incl. VAT

Quantity

pcs

Immediately available

Design	Cable end 1	Cable end 2	Cable length [MTR]
straight	M 12 socket (A-coded)	4 loose cable ends (Pin 1 to 4)	5

KAB M12 10 G

Cable with M12 coupling, 4-wire, 10 m, straight

€30.93 incl. VAT

Quantity

pcs

Immediately available

Design	Cable end 1	Cable end 2	Cable length [MTR]
straight	M 12 socket (A-coded)	4 loose cable ends (Pin 1 to 4)	10

KAB M125 3 G

Cable with M12 coupling, 4-wire, 3 m, straight

€20.19 incl. VAT

Quantity

pcs

Immediately available

Design	Cable end 1	Cable end 2	Cable length [MTR]
straight	M 12 socket (A-coded)	5 loose cable ends (Pin 1 to 5)	3

KAB M125 5 G

Cable with M12 coupling, 4-wire, 5 m, straight

€28.37 incl. VAT

Quantity

pcs

Immediately available

Design	Cable end 1	Cable end 2	Cable length [MTR]
straight	M 12 socket (A-coded)	5 loose cable ends (Pin 1 to 5)	5

KAB M125 10 G

Cable with M12 coupling, 4-wire, 10 m, straight

€50.08 incl. VAT

Quantity

pcs

Immediately available

Design	Cable end 1	Cable end 2	Cable length [MTR]
straight	M 12 socket (A-coded)	5 loose cable ends (Pin 1 to 5)	10

KAB M12-M12 IA 1 G

Cable with M12 coupling, 4-wire, 1 m, straight

€24.12 incl. VAT

Quantity

pcs

Immediately available

Design	Cable end 1	Cable end 2	Cable length [MTR]
straight	M 12 socket (A-coded)	M 12 plug (A-coded)	1

KAB M12-M12 IA 3 G

Cable with M12 coupling, 4-wire, 3 m, straight

€31.33 incl. VAT

Quantity

pcs

Immediately available

Design	Cable end 1	Cable end 2	Cable length [MTR]
straight	M 12 socket (A-coded)	M 12 plug (A-coded)	3

KAB M12-M12 IA 5 G

Cable with M12 coupling, 4-wire, 5 m, straight

€38.56 incl. VAT

Quantity

pcs

Immediately available

Design	Cable end 1	Cable end 2	Cable length [MTR]
straight	M 12 socket (A-coded)	M 12 plug (A-coded)	5

KAB M12-M12 IA 10 G

Cable with M12 coupling, 4-wire, 10 m, straight

€57.63 incl. VAT

Quantity

pcs

Immediately available

Design	Cable end 1	Cable end 2	Cable length [MTR]
straight	M 12 socket (A-coded)	M 12 plug (A-coded)	10

KAB M12 3 W

Cable with M12 coupling, 4-wire, 3 m, angled

€14.43 incl. VAT

Quantity

pcs

Immediately available

Design	Cable end 1	Cable end 2	Cable length [MTR]
angled	M 12 socket (A-coded)	4 loose cable ends (Pin 1 to 4)	3

KAB M12 5 W

Cable with M12 coupling, 4-wire, 5 m, angled

€18.80 incl. VAT

Quantity

pcs

Immediately available

Design	Cable end 1	Cable end 2	Cable length [MTR]
angled	M 12 socket (A-coded)	4 loose cable ends (Pin 1 to 4)	5

KAB M12 10 W

Cable with M12 coupling, 4-wire, 10 m, angled

€30.93 incl. VAT

Quantity

pcs

Immediately available

Design	Cable end 1	Cable end 2	Cable length [MTR]
angled	M 12 socket (A-coded)	4 loose cable ends (Pin 1 to 4)	10

KAB M125 3 W

Cable with M12 coupling, 4-wire, 3 m, angled

€20.19 incl. VAT

Quantity

pcs

Immediately available

Design	Cable end 1	Cable end 2	Cable length [MTR]
angled	M 12 socket (A-coded)	5 loose cable ends (Pin 1 to 5)	3

KAB M125 5 W

Cable with M12 coupling, 4-wire, 5 m, angled

€28.37 incl. VAT

Quantity

pcs

Immediately available

Design	Cable end 1	Cable end 2	Cable length [MTR]
angled	M 12 socket (A-coded)	5 loose cable ends (Pin 1 to 5)	5

KAB M125 10 W

Cable with M12 coupling, 4-wire, 10 m, angled

€50.08 incl. VAT

Quantity

pcs

Immediately available

Design	Cable end 1	Cable end 2	Cable length [MTR]
angled	M 12 socket (A-coded)	5 loose cable ends (Pin 1 to 5)	10

KAB M12-M12 IA 1 W

Cable with M12 coupling, 4-wire, 1 m, angled

€24.12 incl. VAT

Quantity

pcs

Immediately available

Design	Cable end 1	Cable end 2	Cable length [MTR]
angled	M 12 socket (A-coded)	M 12 plug (A-coded)	1

KAB M12-M12 IA 3 W

Cable with M12 coupling, 4-wire, 3 m, angled

€31.33 incl. VAT

Quantity

pcs

Immediately available

Design	Cable end 1	Cable end 2	Cable length [MTR]
angled	M 12 socket (A-coded)	M 12 plug (A-coded)	3

KAB M12-M12 IA 5 W

Cable with M12 coupling, 4-wire, 5 m, angled

€38.56 incl. VAT

Quantity

pcs

Immediately available

Design	Cable end 1	Cable end 2	Cable length [MTR]
angled	M 12 socket (A-coded)	M 12 plug (A-coded)	5

KAB M12-M12 IA 10 W

Cable with M12 coupling, 4-wire, 10 m, angled

€57.63 incl. VAT

Quantity

pcs

Immediately available

Design	Cable end 1	Cable end 2	Cable length [MTR]
angled	M 12 socket (A-coded)	M 12 plug (A-coded)	10

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
