Item group

Combination air units, up to 3,400 l/minute

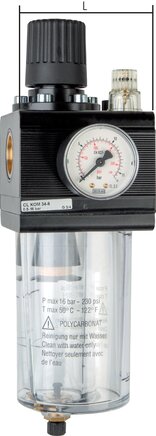

Exemplary representation: Combined maintenance unit series 1 Exemplary representation: Combined maintenance unit series 2 Exemplary representation: Mounting bracket for combined maintenance unit Schematic symbol: Maintenance unit

Version:

Reversible combo-air units consist of filter, pressure regulator and oiler in one device. The oil tank is integrated in the filter tank.

Materials:

Body: zinc die-cast, seals: NBR, plastic container: polycarbonate, filter insert: sintered bronze

Temperature range:

0°C to max. +50°C (metal bowl: 0°C to max. +90°C)

Input pressure:

0 - 16 bar (metal bowl: 0 - 25 bar)

Pressure gauge connection:

G 1/4"

Usable tank contents:

Size 1: Filter 25 cm³, oiler: 75 cm³, size 2: Filter 75 cm³, oiler: 150 cm³

Pore width in the filter:

40 µm

Condensate draining:

Manually

Lubricator reaction limit (at 2 bar):

50 l/min

Scope of delivery:

Air unit, including 50 mm pressure gauge

Optional:

Metal container with sight tube (series 1 only)-M, protective cage -S, automatic drain (built-in automatic, 1.5 - 12 bar) -AM, automatic drain (add-on automatic, 4 - 16 bar) -AMR

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 600) atlas9_seiten/600.pdf
    Documentation: Combined maintenance units doku/clkom.pdf
    Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
Combination air units, up to 3,400 l/minute:
{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}
305,24€ incl. VAT
305,24€ incl. VAT
305,24€ incl. VAT
305,24€ incl. VAT
519,95€ incl. VAT
519,95€ incl. VAT
519,95€ incl. VAT
519,95€ incl. VAT
{{ $t('shop.all.unverbindliche_richtwerte') }}
