Item group

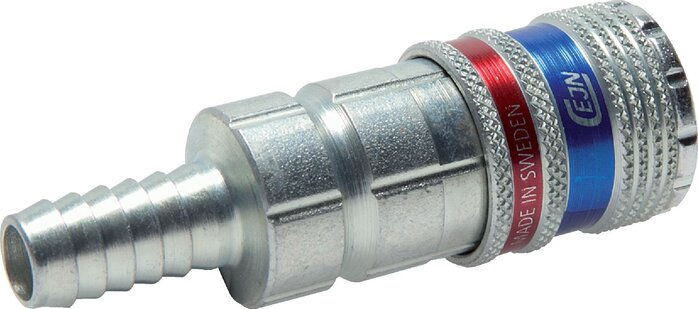

CEJN safety coupling sockets with hose screw connection, NW 7,2
Materials:
Body: zinc-plated steel, zinc-plated brass, seal: NBR
Temperature range:
-20 to +80 °C
Operating pressure:
0 to 16 bar
Flow*:
2250 l/min (input pressure 6 bar, max. pressure drop 0,5 bar)
Function:
The coupling occurs as for standard couplings, by inserting the push in nipple into the coupling socket. The decoupling occurs by pushing the unlocking sleeve back. The coupling socket then closes and ventilates the coupling plug when this is still held in the coupling socket. The coupling socket only releases the plug when the residual pressure on the plug side has fallen below a pressure of approx. 0,3 bar. As such, the dangerous recoil effect will be reliably (depending on the pressure present on the plug side) prevented.
Recommendation:
Only use coupling plugs made of hardened steel!
Compatible with**:
Rectus (25, 26, 1600, 1625), TEMA (1600), CEJN (320), JWL (520, 530, 560), Legris (25, 26), Parker (PE, PEF), Prevost (E ... 07), Festo (KD4 / KS4 / NPHS), IMI-Norgren (238), Aventics (CP1-NW 7 / 7.8) and many other German brands
*6 bar input pressure, 0,5 bar pressure difference
**Names and designations are partly trademarks of the manufacturers entered.
**Names and designations are partly trademarks of the manufacturers entered.
{{ $t('shop.all.dokumente') }}:
Catalogue page Atlas 9 (Page 293) atlas9_seiten/293.pdf
Documentation doku/sicherheitskupplungen.pdf
Documentation doku/sicherheitskupplungen.pdf
