Item group

Butterfly valves, PN 10/16

Name: Intermediate flange valve DN25-PN16 (DIN) GGG40/Stainless steel/EPDM
Brand: Landefeld
SKU: KLZ 25/16 BBA
Price: 217.44 EUR
Availability: InStock

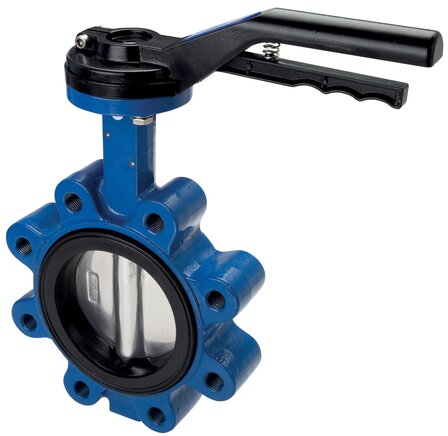

Exemplary representation: Intermediate flange valve

Materials:

Body: GGG40 epoxy-coated -B, stainless steel* -C

Washer: Stainless steel

Cuff: EPDM (-10°C up to max. +110°C) -A, NBR (+5°C up to max. +85°C) -B, FKM (+5°C to max. +180°C) -C

Ratchet hand lever Aluminium pressure casting

Media:

liquid and gaseous neutral media (depending on the material combination)

Lengths:

DIN 3202-K1, ISO 5752 series 20, EN 558-1 series 20, BS 5155 table 6 column 4, API 609 table1

Optional:

hand wheel gear -G

Advantages:

•A drive can be mounted directly on the ISO 5211 direct assembly flange to automate the butterfly valve.

*only available as an intermediate flange valve

Documents:

More information

Butterfly valves, PN 10/16:

20 of 129 articles

KLZ 25/16 BBA

Intermediate flange valve DN25-PN16 (DIN) GGG40/Stainless steel/EPDM

€217.44 incl. VAT

Quantity

pcs

Immediately available

Version	Flange connection	Housing material	Washer material
Intermediate flange valve	DN25-PN16 (DIN)	GGG40	Stainless steel

Fields of application

general and industrial application (free of mineral oil), untreated water, compressed air (oil-free), neutral gaseous media, swimming pool water

KLZ 25/16 BBB

Intermediate flange valve DN25-PN16 (DIN) GGG40/Stainless steel/NBR

€217.44 incl. VAT

Quantity

pcs

Immediately available

Version	Flange connection	Housing material	Washer material
Intermediate flange valve	DN25-PN16 (DIN)	GGG40	Stainless steel

Fields of application

general and industrial application (containing mineral oil), untreated water, compressed air (containing oil), neutral gaseous media, hydrocarbons, seawater, swimming pool water

KLZ 25/16 BBC

Intermediate flange valve DN25-PN16 (DIN) GGG40/Stainless steel/FKM

€404.72 incl. VAT

Quantity

pcs

Immediately available

Version	Flange connection	Housing material	Washer material
Intermediate flange valve	DN25-PN16 (DIN)	GGG40	Stainless steel

KLZ 32-40/16 BAA

Intermediate flange valve DN32-PN16 (DIN)/DN40-PN16 (DIN) GGG40/GGG40 epoxy coated/EPDM

€128.98 incl. VAT

Quantity

pcs

Immediately available

Version	Flange connection	Flange connection (optional)	Housing material
Intermediate flange valve	DN32-PN16 (DIN)	DN40-PN16 (DIN)	GGG40

Fields of application

general and industrial application (free of mineral oil), untreated water, compressed air (oil-free), neutral gaseous media, swimming pool water

KLZ 32-40/16 BAB

Intermediate flange valve DN32-PN16 (DIN)/DN40-PN16 (DIN) GGG40/GGG40 epoxy coated/NBR

€128.98 incl. VAT

Quantity

pcs

Immediately available

Version	Flange connection	Flange connection (optional)	Housing material
Intermediate flange valve	DN32-PN16 (DIN)	DN40-PN16 (DIN)	GGG40

Fields of application

general and industrial application (containing mineral oil), untreated water, compressed air (containing oil), neutral gaseous media, hydrocarbons, seawater, swimming pool water

KLZ 32-40/16 BBA

Intermediate flange valve DN32-PN16 (DIN)/DN40-PN16 (DIN) GGG40/Stainless steel/EPDM

€208.64 incl. VAT

Quantity

pcs

Immediately available

Version	Flange connection	Flange connection (optional)	Housing material
Intermediate flange valve	DN32-PN16 (DIN)	DN40-PN16 (DIN)	GGG40

Fields of application

general and industrial application (free of mineral oil), untreated water, compressed air (oil-free), neutral gaseous media, swimming pool water

KLZ 32-40/16 BBB

Intermediate flange valve DN32-PN16 (DIN)/DN40-PN16 (DIN) GGG40/Stainless steel/NBR

€208.64 incl. VAT

Quantity

pcs

Immediately available

Version	Flange connection	Flange connection (optional)	Housing material
Intermediate flange valve	DN32-PN16 (DIN)	DN40-PN16 (DIN)	GGG40

Fields of application

general and industrial application (containing mineral oil), untreated water, compressed air (containing oil), neutral gaseous media, hydrocarbons, seawater, swimming pool water

KLZ 32-40/16 BBC

Intermediate flange valve DN32-PN16 (DIN)/DN40-PN16 (DIN) GGG40/Stainless steel/FKM

€418.17 incl. VAT

Quantity

pcs

Immediately available

Version	Flange connection	Flange connection (optional)	Housing material
Intermediate flange valve	DN32-PN16 (DIN)	DN40-PN16 (DIN)	GGG40

KLZ 32-40/16 CBA

Intermediate flange valve DN32-PN16 (DIN)/DN40-PN16 (DIN) Stainless steel/Stainless steel/EPDM

€786.54 incl. VAT

Quantity

pcs

Immediately available

Version	Flange connection	Flange connection (optional)	Housing material
Intermediate flange valve	DN32-PN16 (DIN)	DN40-PN16 (DIN)	Stainless steel

Fields of application

general and industrial application (free of mineral oil), untreated water, compressed air (oil-free), neutral gaseous media, swimming pool water

KLZ 50/16 BAA

Intermediate flange valve DN50-PN16 (DIN/EN) GGG40/GGG40 epoxy coated/EPDM

€169.93 incl. VAT

Quantity

pcs

Immediately available

Version	Flange connection	Housing material	Washer material
Intermediate flange valve	DN50-PN16 (DIN/EN)	GGG40	GGG40 epoxy coated

Fields of application

general and industrial application (free of mineral oil), untreated water, compressed air (oil-free), neutral gaseous media, swimming pool water

KLZ 50/16 BAB

Intermediate flange valve DN50-PN16 (DIN/EN) GGG40/GGG40 epoxy coated/NBR

€121.73 incl. VAT

Quantity

pcs

Immediately available

Version	Flange connection	Housing material	Washer material
Intermediate flange valve	DN50-PN16 (DIN/EN)	GGG40	GGG40 epoxy coated

Fields of application

general and industrial application (containing mineral oil), untreated water, compressed air (containing oil), neutral gaseous media, hydrocarbons, seawater, swimming pool water

KLZ 50/16 BAG-KU

Intermediate flange valve DN50-PN16 (DIN/EN) GGG40/GGG40 epoxy coated/NBR (contains carboxyl)

€316.53 incl. VAT

Quantity

pcs

Immediately available

Version	Flange connection	Housing material	Washer material
Intermediate flange valve	DN50-PN16 (DIN/EN)	GGG40	GGG40 epoxy coated

KLZ 50/16 BBA

Intermediate flange valve DN50-PN16 (DIN/EN) GGG40/Stainless steel/EPDM

€210.23 incl. VAT

Quantity

pcs

Immediately available

Version	Flange connection	Housing material	Washer material
Intermediate flange valve	DN50-PN16 (DIN/EN)	GGG40	Stainless steel

Fields of application

general and industrial application (free of mineral oil), untreated water, compressed air (oil-free), neutral gaseous media, swimming pool water

KLZ 50/16 BBB

Intermediate flange valve DN50-PN16 (DIN/EN) GGG40/Stainless steel/NBR

€210.23 incl. VAT

Quantity

pcs

Immediately available

Version	Flange connection	Housing material	Washer material
Intermediate flange valve	DN50-PN16 (DIN/EN)	GGG40	Stainless steel

Fields of application

general and industrial application (containing mineral oil), untreated water, compressed air (containing oil), neutral gaseous media, hydrocarbons, seawater, swimming pool water

KLZ 50/16 BBC

Intermediate flange valve DN50-PN16 (DIN/EN) GGG40/Stainless steel/FKM

€464.40 incl. VAT

Quantity

pcs

Immediately available

Version	Flange connection	Housing material	Washer material
Intermediate flange valve	DN50-PN16 (DIN/EN)	GGG40	Stainless steel

KLZ 50/16 BBI

Intermediate flange valve DN50-PN16 (DIN/EN) GGG40/Stainless steel/PTFE / Silicon

€1,296.14 incl. VAT

Quantity

pcs

Immediately available

Version	Flange connection	Housing material	Washer material
Intermediate flange valve	DN50-PN16 (DIN/EN)	GGG40	Stainless steel

KLZ 50/16 CBA

Intermediate flange valve DN50-PN16 (DIN/EN) Stainless steel/Stainless steel/EPDM

€876.35 incl. VAT

Quantity

pcs

Immediately available

Version	Flange connection	Housing material	Washer material
Intermediate flange valve	DN50-PN16 (DIN/EN)	Stainless steel	Stainless steel

Fields of application

general and industrial application (free of mineral oil), untreated water, compressed air (oil-free), neutral gaseous media, swimming pool water

KLZ 50/16 CBC

Intermediate flange valve DN50-PN16 (DIN/EN) Stainless steel/Stainless steel/FKM

€1,092.74 incl. VAT

Quantity

pcs

Immediately available

Version	Flange connection	Housing material	Washer material
Intermediate flange valve	DN50-PN16 (DIN/EN)	Stainless steel	Stainless steel

KLZ 65/16 BAA

Intermediate flange valve DN65-PN16 (DIN) GGG40/GGG40 epoxy coated/EPDM

€179.64 incl. VAT

Quantity

pcs

Immediately available

Version	Flange connection	Housing material	Washer material
Intermediate flange valve	DN65-PN16 (DIN)	GGG40	GGG40 epoxy coated

Fields of application

general and industrial application (free of mineral oil), untreated water, compressed air (oil-free), neutral gaseous media, swimming pool water

KLZ 65/16 BAB

Intermediate flange valve DN65-PN16 (DIN) GGG40/GGG40 epoxy coated/NBR

€128.89 incl. VAT

Quantity

pcs

Immediately available

Version	Flange connection	Housing material	Washer material
Intermediate flange valve	DN65-PN16 (DIN)	GGG40	GGG40 epoxy coated

Fields of application

general and industrial application (containing mineral oil), untreated water, compressed air (containing oil), neutral gaseous media, hydrocarbons, seawater, swimming pool water

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
