Item group

5/2-way ISO valves (ISO 5599-1), ISO size 2

Name: ISO valve (size 2), 5/2-way, spring return, 24 V DC of YPC
Brand: YPC
SKU: SIV511 IPSC-D4
Price: 134.05 EUR
Availability: InStock

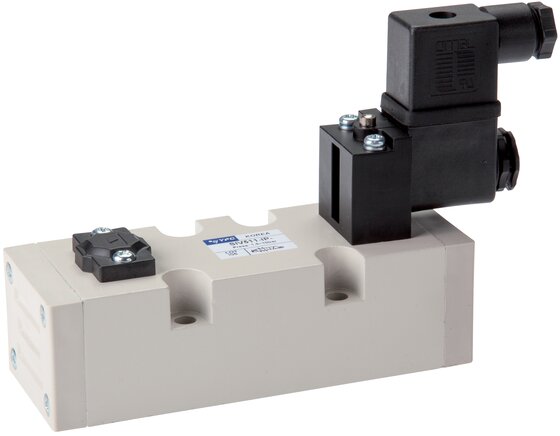

Exemplary representation: 5/2-way ISO solenoid valve with spring return

Exemplary representation: 5/2-way ISO solenoid pulse valve

Schematic symbol: 5/2-way solenoid valve with spring return

Schematic symbol: 5/2-way solenoid pulse valve

Materials:

Body and slider: aluminium, seals: NBR, pilot: polyamide (glass fibre reinforced)

Temperature range:

-10 to +60 °C

Media:

oiled and unoiled filtered compressed air

Control voltages:

Standard: 24 V DC, 230 V AC, upon request other voltages

Voltage tolerance:

± 10 %

Protection class:

IP 65

Structural shape solenoid coil:

M (plug size 1)

Scope of delivery:

Valve including flange gasket, fixing screws, coil(s) and plug.

Switching time (at 5 bar):

< 35 ms

{{ $t('shop.all.dokumente') }}:

Catalogue page Atlas 9 (Page 739) atlas9_seiten/739.pdf
Documentation doku/magnetventile_5_2_5_3.pdf

5/2-way ISO valves (ISO 5599-1), ISO size 2:

{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}

SIV511 IPSC-D4

ISO valve (size 2), 5/2-way, spring return, 24 V DC

134,05€ incl. VAT

Control voltage	function	ISO size	Operating pressure [bar]
24 V DC	spring return	2	1,5 - 10

SIV511 IPSC-A2

ISO valve (size 2), 5/2-way, spring return, 230 V AC

134,05€ incl. VAT

Control voltage	function	ISO size	Operating pressure [bar]
230 V AC	spring return	2	1,5 - 10

SIV511 IPSC-D2

ISO valve (size 2), 5/2-way, spring return, 12 V DC

134,05€ incl. VAT

Control voltage	function	ISO size	Operating pressure [bar]
12 V DC	spring return	2	1,5 - 10

SIV511 IPSC-A4

ISO valve (size 2), 5/2-way, spring return, 24 V AC

134,05€ incl. VAT

Control voltage	function	ISO size	Operating pressure [bar]
24 V AC	spring return	2	1,5 - 10

SIV511 IPSC-A1

ISO valve (size 2), 5/2-way, spring return, 115 V AC

134,05€ incl. VAT

Control voltage	function	ISO size	Operating pressure [bar]
115 V AC	spring return	2	1,5 - 10

SIV520 IPSC-D4

ISO valve (size 2), 5/2-way, pulse valve, 24 V DC

194,26€ incl. VAT

Control voltage	function	ISO size	Operating pressure [bar]
24 V DC	pulse valve	2	1,5 - 10

SIV520 IPSC-A2

ISO valve (size 2), 5/2-way, pulse valve, 230 V AC

194,26€ incl. VAT

Control voltage	function	ISO size	Operating pressure [bar]
230 V AC	pulse valve	2	1,5 - 10

SIV520 IPSC-D2

ISO valve (size 2), 5/2-way, pulse valve, 12 V DC

194,26€ incl. VAT

Control voltage	function	ISO size	Operating pressure [bar]
12 V DC	pulse valve	2	1,5 - 10

SIV520 IPSC-A4

ISO valve (size 2), 5/2-way, pulse valve, 24 V AC

194,26€ incl. VAT

Control voltage	function	ISO size	Operating pressure [bar]
24 V AC	pulse valve	2	1,5 - 10

SIV520 IPSC-A1

ISO valve (size 2), 5/2-way, pulse valve, 115 V AC

194,26€ incl. VAT

Control voltage	function	ISO size	Operating pressure [bar]
115 V AC	pulse valve	2	1,5 - 10
