Item group

5/2-way button activated valves & rotary switch M5 (Ø 30.5), Series T 30

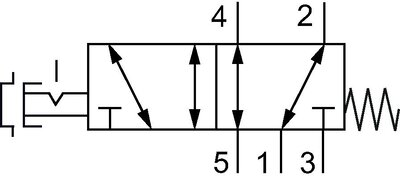

Exemplary representation: 5/2-way mushroom button valve Exemplary representation: 5/2-way pushbutton valve Exemplary representation: 5/2-way rotary switch valve Exemplary representation: 5/2-way key switch valve Exemplary representation: 5/2-way rocker valve Exemplary representation: 5/2-way emergency stop button valve Schematic symbol: 5/2-way pushbutton valve Schematic symbol: 5/2-way mushroom button valve Schematic symbol: 5/2-way rotary switch valve Schematic symbol: 5/2-way key switch valve Schematic symbol: 5/2-way rocker valve Schematic symbol: 5/2-way emergency stop button valve

Materials:

Body: anodized aluminium, internal parts: aluminium, brass and stainless steel, seals: NBR / plastic

Temperature range:

-10 to +70 °C

Operating pressure:

0 to 12 bar

Flow:

100 l/min (nominal width 2,4 mm)

Media:

oiled and unoiled filtered compressed air

Pressure input:

Possible on every connection

Switch panel borehole:

Ø 30,5 mm

{{ $t('shop.all.dokumente') }}:

    • Catalogue page Atlas 9 (Page 763) atlas9_seiten/763.pdf

{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
5/2-way button activated valves & rotary switch M5 (Ø 30.5), Series T 30:
{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}

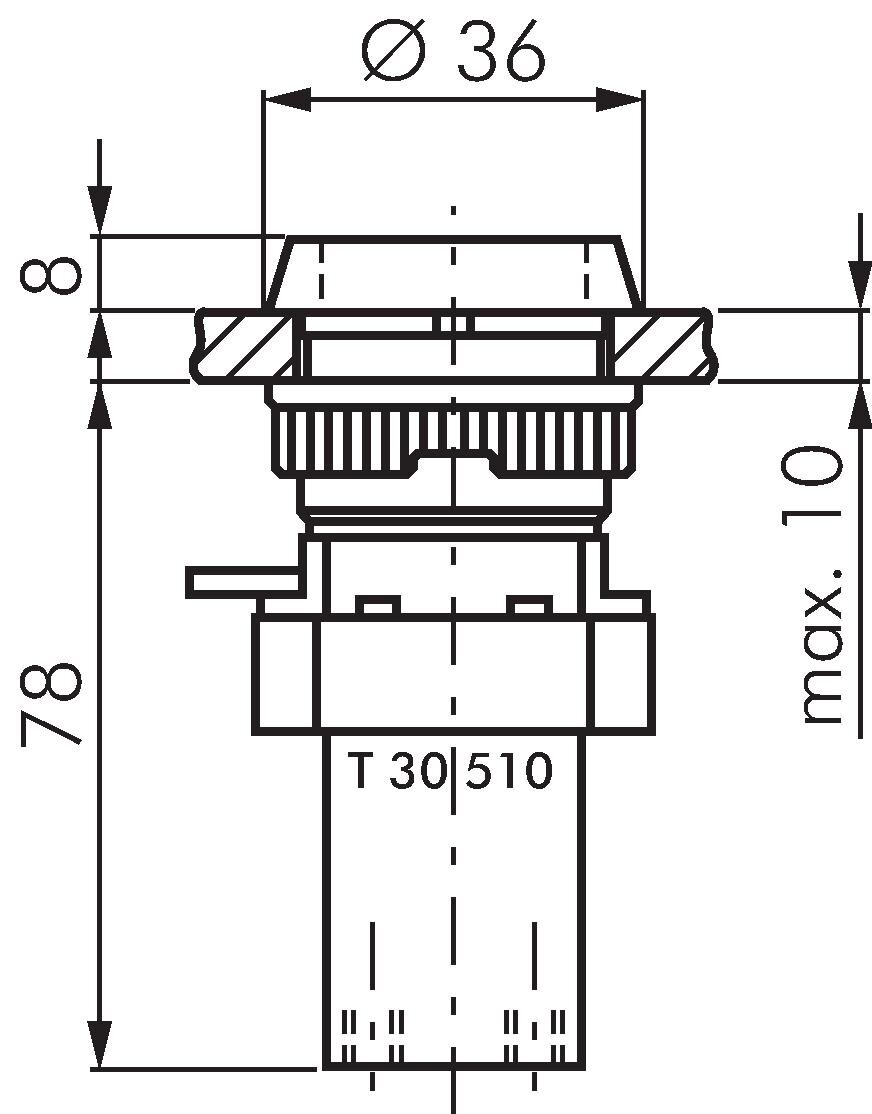

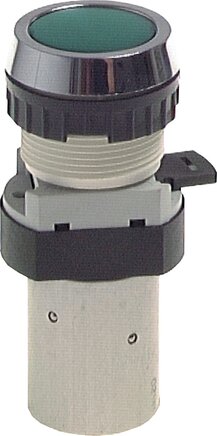

T 30 511 SCHWARZ
5/2-way Pushbutton-valve, black (30,5mm), M5
76,78€ incl. VAT
T 30 511 ROT
5/2-way Pushbutton-valve, red (30,5mm), M5
76,78€ incl. VAT
T 30 511 GRUN
5/2-way Pushbutton-valve, green (30,5mm), M5
76,78€ incl. VAT
T 30 511 GELB
5/2-way Pushbutton-valve, yellow (30,5mm), M5
76,78€ incl. VAT
T 30 512 SCHWAR
5/2-way Pushbutton-valve, black (30,5mm), M5
85,97€ incl. VAT

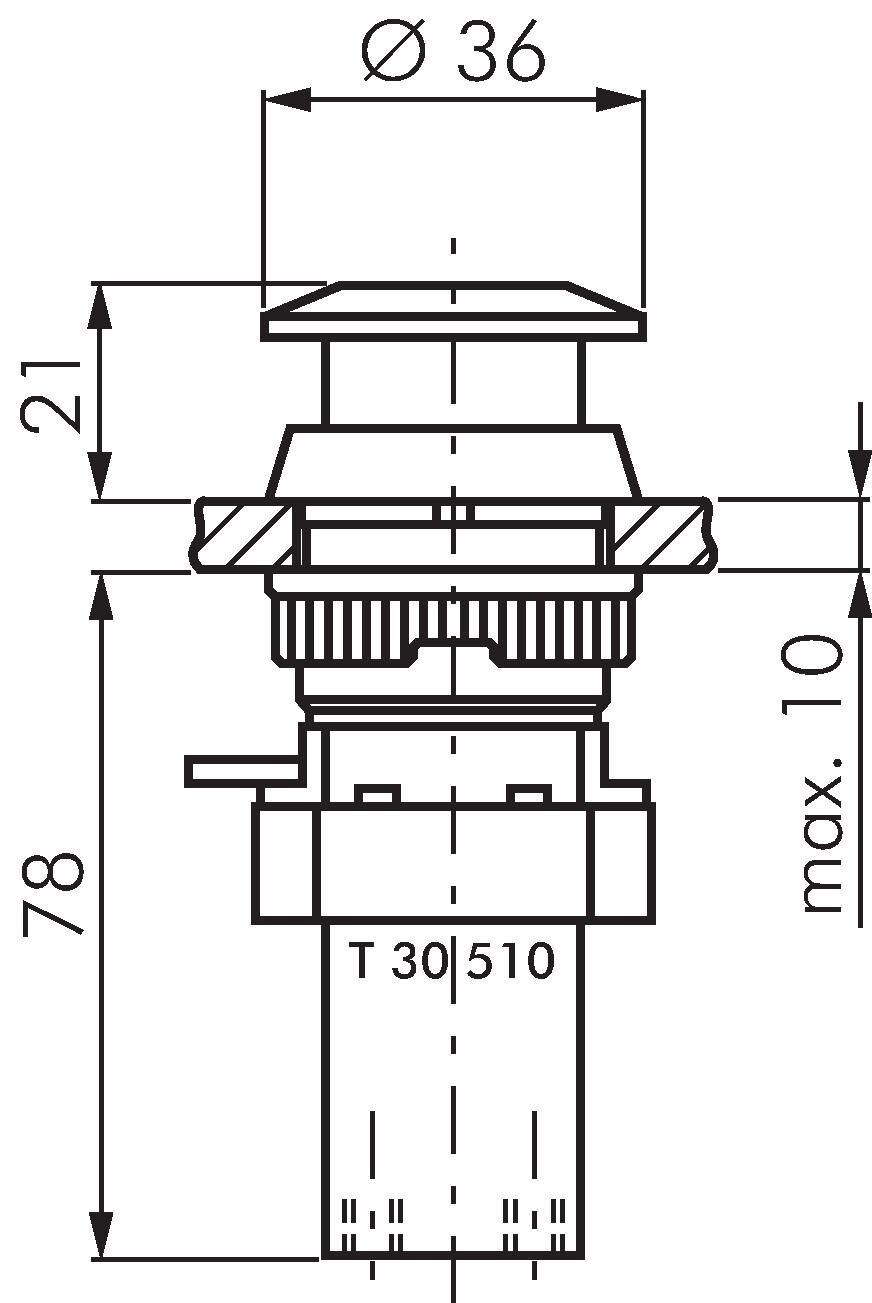

T 30 512 ROT
5/2-way Mushroom button-valve, red (30,5mm), M5
85,97€ incl. VAT

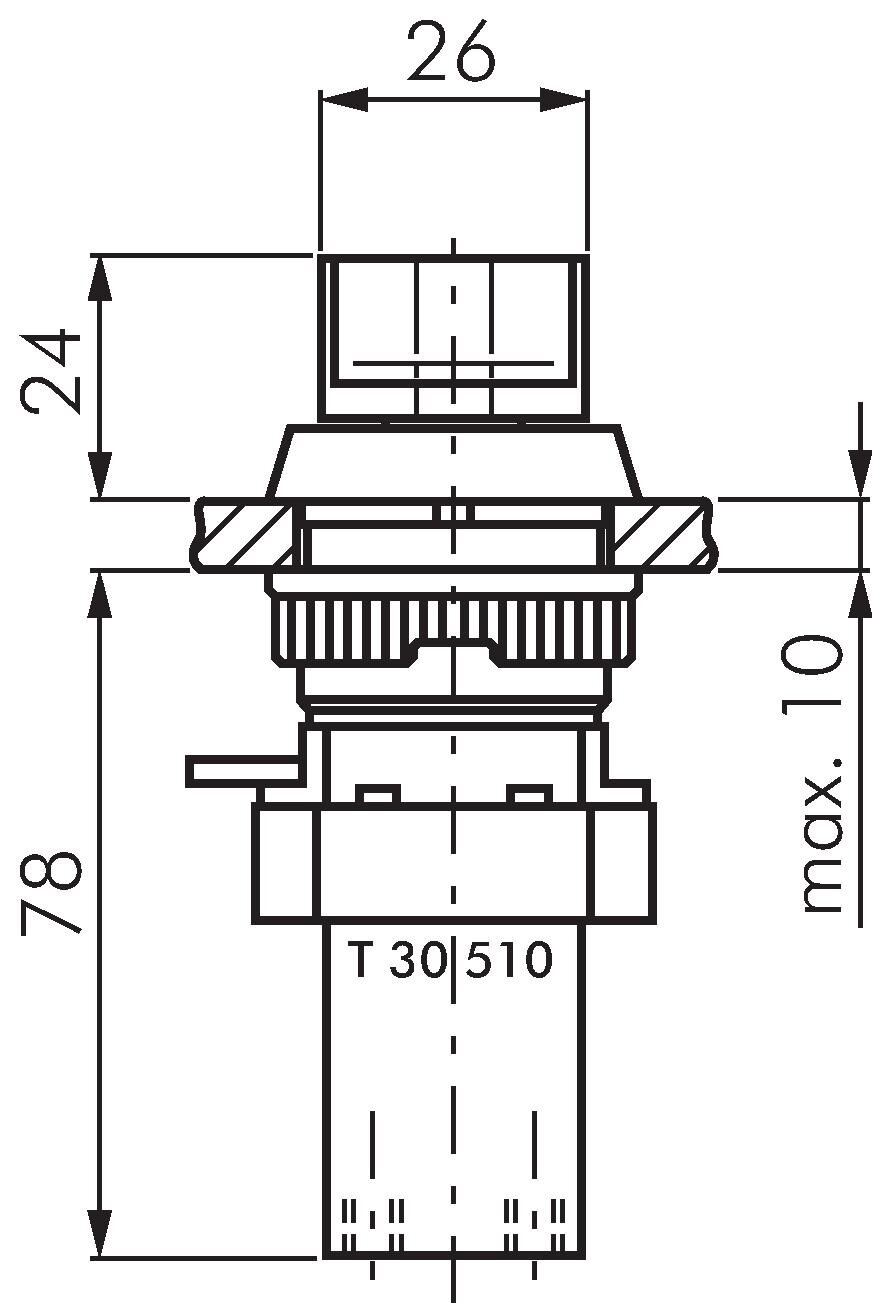

T 30 513
5/2-way Rotary switch-valve, black (30,5mm), M5
81,32€ incl. VAT

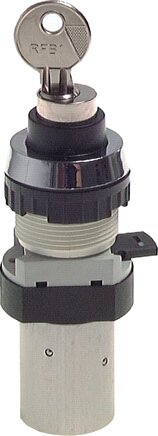

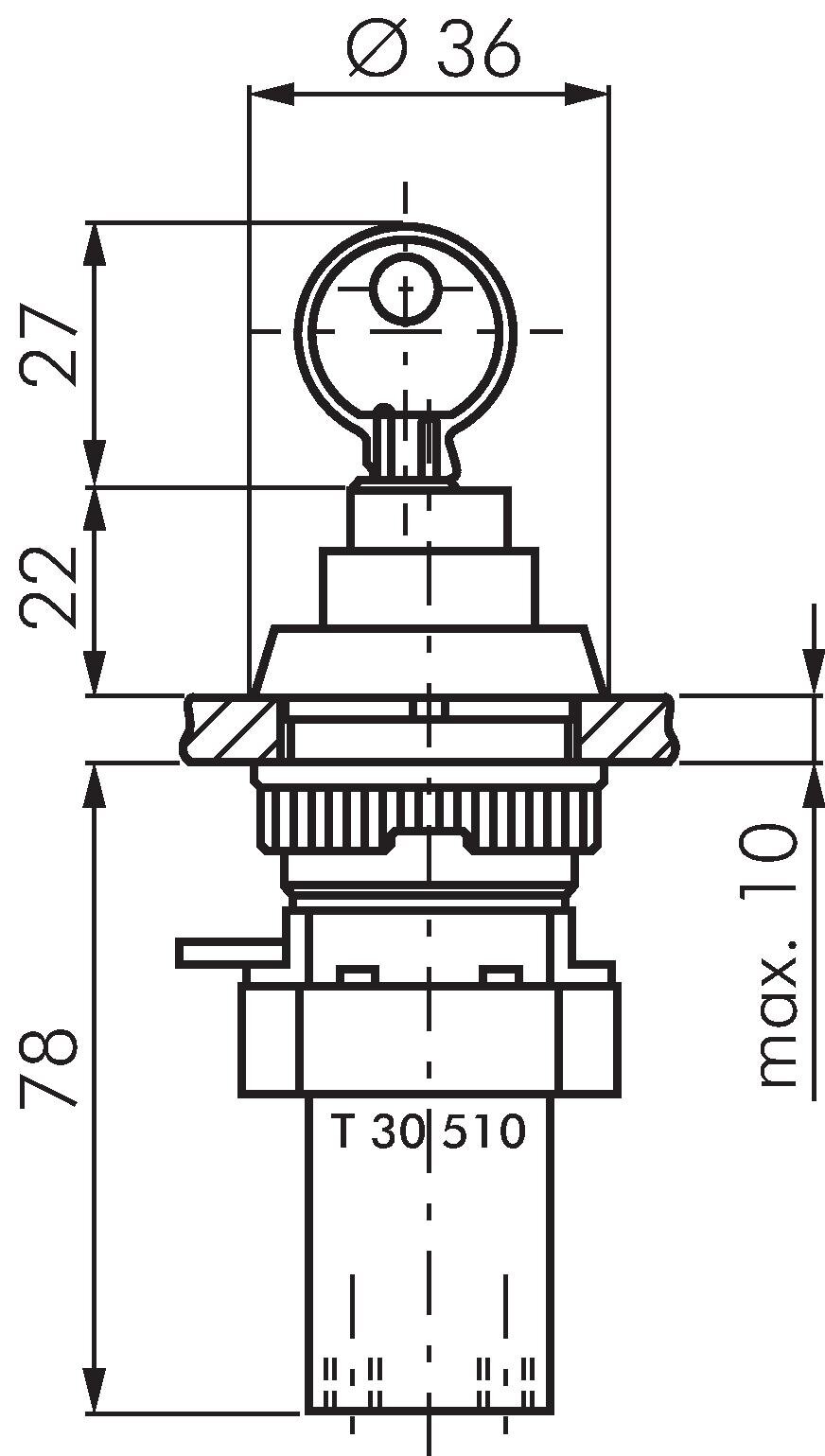

T 30 514
5/2-way Key-operated switch-valve, black (30,5mm), M5
242,66€ incl. VAT
T 30 516

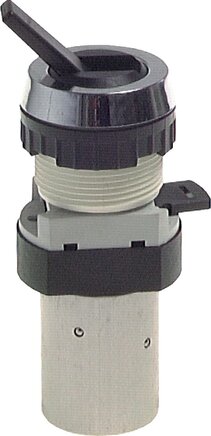

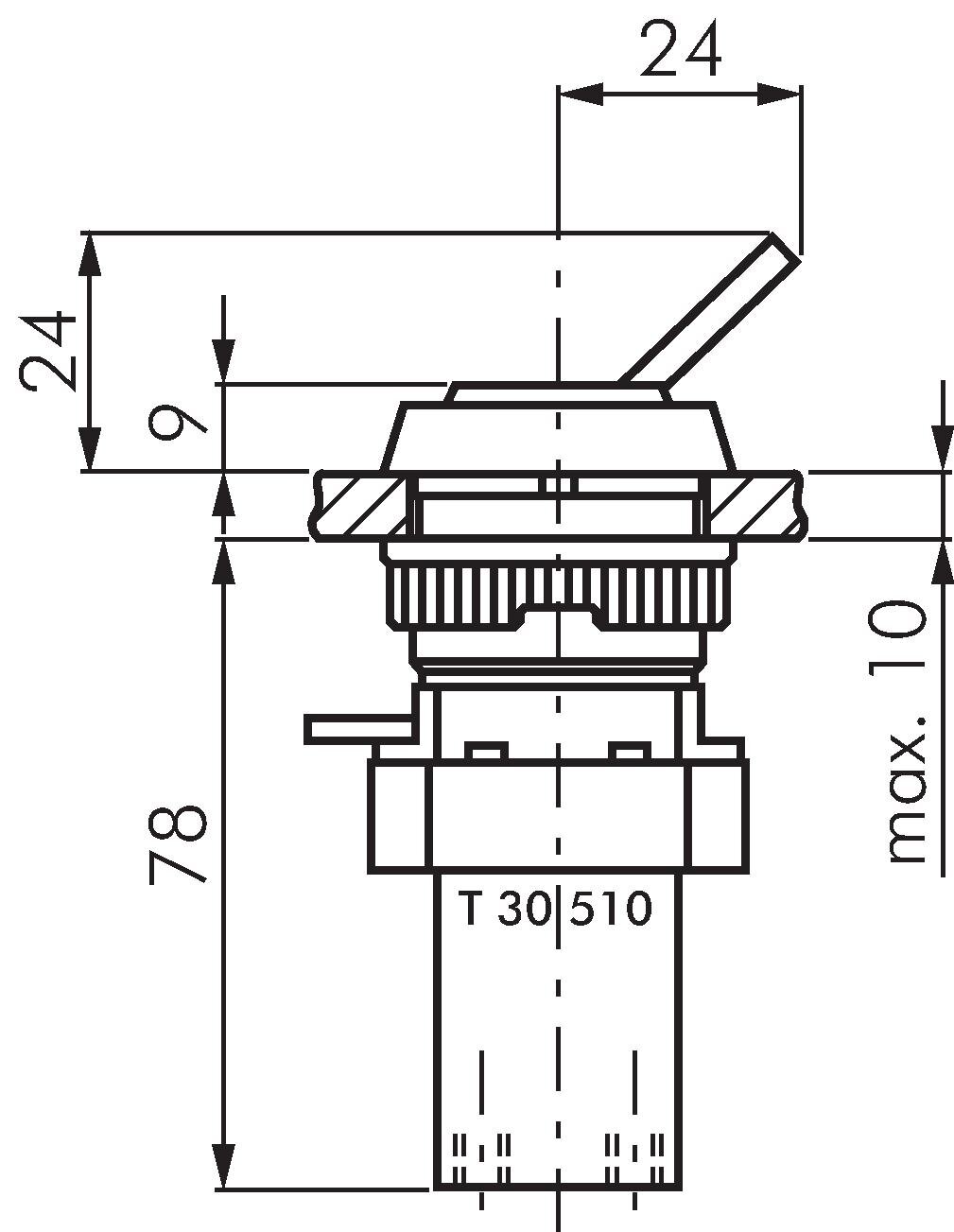

5/2-way Rocker lever-valve, black (30,5mm), M5
101,01€ incl. VAT

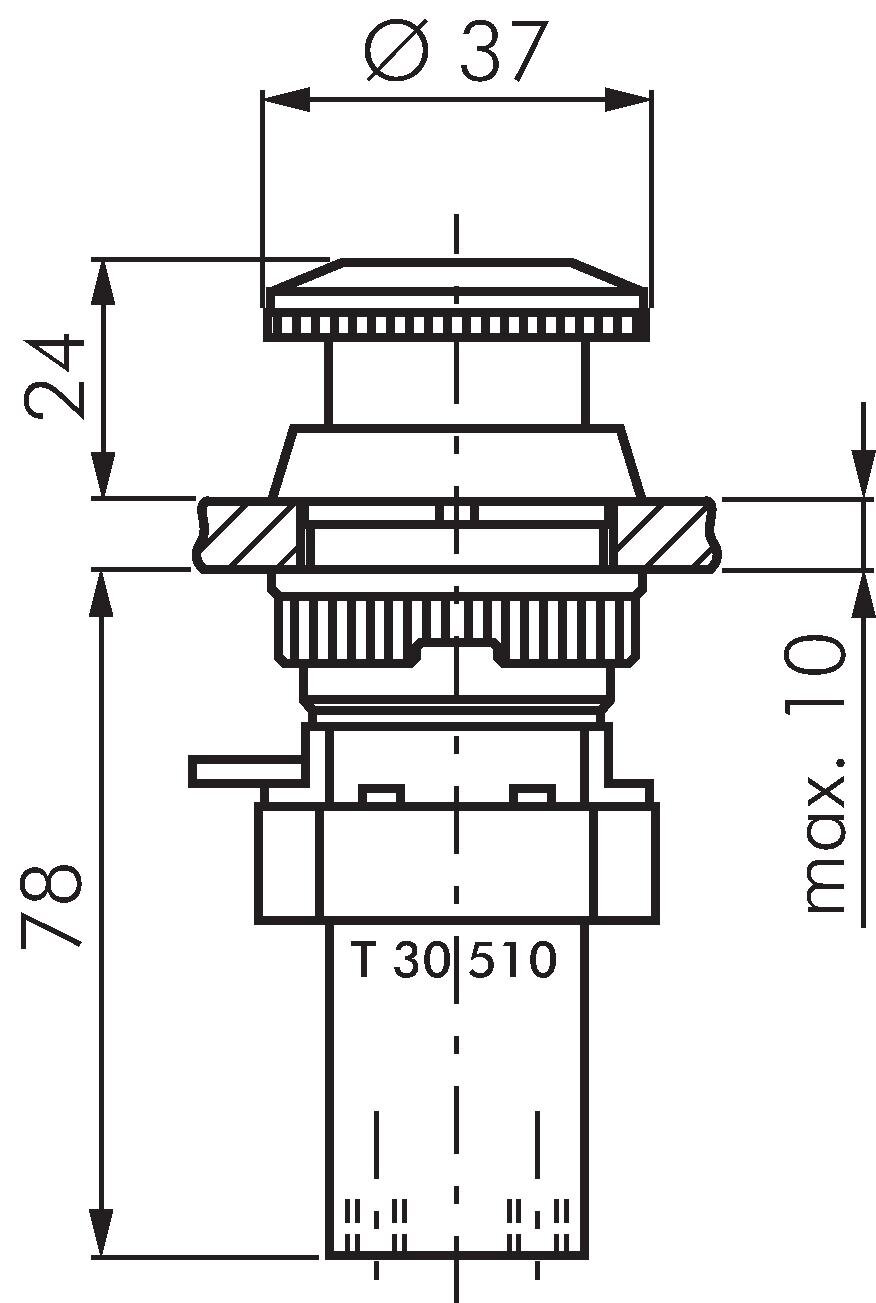

T 30 518
5/2-way Emergency stop button-valve, red (30,5mm), M5
87,88€ incl. VAT
