Item group

5/2-directional & 5/3-directional pneumatic valves G 1/8", Series SF2000

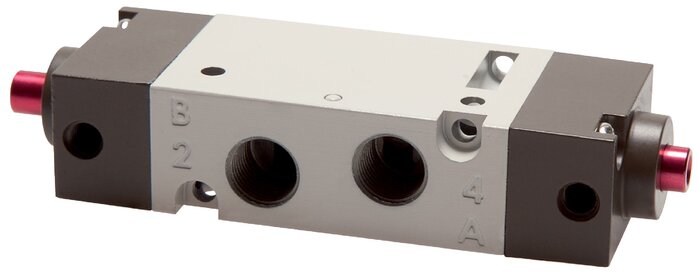

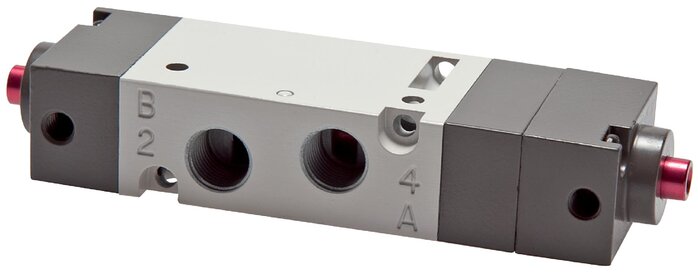

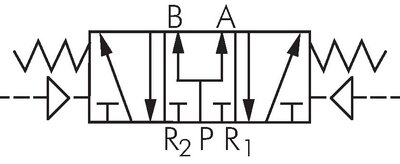

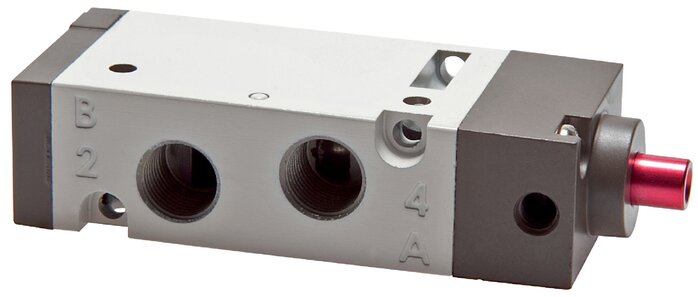

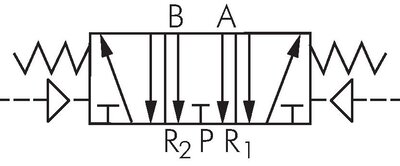

Exemplary representation: 5/2-way pneumatic valve with spring return Exemplary representation: 5/2-way pneumatic pulse valve Exemplary representation: 5/3-way pneumatic valve Schematic symbol: 5/2-way pneumatic valve with spring return Schematic symbol: 5/2-way pneumatic pulse valve Schematic symbol: 5/3-way pneumatic valve (middle position closed) Schematic symbol: 5/3-way pneumatic valve (middle position deaerates) Schematic symbol: 5/3-way pneumatic valve (middle position ventilates)

Materials:

Body and slider: aluminium, seals: NBR, pilot: polyamide (glass fibre reinforced)

Temperature range:

-10 to +60 °C

Control pressure:

2 to 8 bar

Media:

oiled and unoiled filtered compressed air

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 740) atlas9_seiten/740.pdf


{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
5/2-directional & 5/3-directional pneumatic valves G 1/8", Series SF2000:
{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}
{{ $t('shop.all.unverbindliche_richtwerte') }}
