Item group

3/2-way solenoid valves G 1/8", Series SF2000

Name: 3/2-way solenoid valve, G 1/8", closed (NC), 24 V DC of YPC
Brand: YPC
SKU: SF2601 IPSC-D4
Price: 61.52 EUR
Availability: InStock

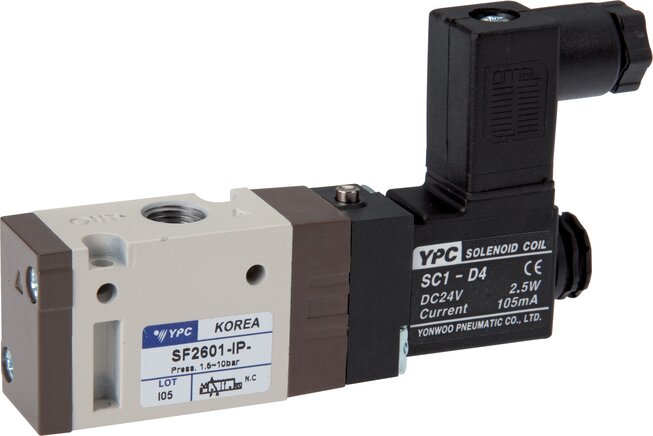

Exemplary representation: 3/2-way solenoid valve with spring return (NC or NO) with standard plug

Exemplary representation: 3/2-way solenoid valve with spring return (NC or NO) with rectangular plug SY100

Schematic symbol: 3/2-way solenoid valve, closed when de-energised (NC)

Schematic symbol: 3/2-way solenoid valve, open when de-energised (NO)

Materials:

Body and slider: aluminium, seals: NBR, pilot: polyamide (glass fibre reinforced)

Temperature range:

-10 to +60 °C

Media:

oiled and unoiled filtered compressed air

Control voltages:

Standard: 24 V DC, 230 V AC, upon request other voltages

Voltage tolerance:

± 10 %

Information:

These valves are always supplied with a solenoid coil and a connector plug.

Switching time (at 5 bar):

< 25 ms

Protection class:

IP 65 (with rectangular plug SY100: IP 40)

Structural shape solenoid coil:

{{ $t('shop.all.dokumente') }}:

Catalogue page Atlas 9 (Page 730) atlas9_seiten/730.pdf

3/2-way solenoid valves G 1/8", Series SF2000:

{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}

SF2601 IPSC-D4

3/2-way solenoid valve, G 1/8", closed (NC), 24 V DC

61,52€ incl. VAT

Control voltage	Version	function	Thread (2x)
24 V DC	Standard plug (size 0)	closed (NC)	G 1/8"

SF2601 IPSC-A2

3/2-way solenoid valve, G 1/8", closed (NC), 230 V AC

61,52€ incl. VAT

Control voltage	Version	function	Thread (2x)
230 V AC	Standard plug (size 0)	closed (NC)	G 1/8"

SF2601 IPSC-D2

3/2-way solenoid valve, G 1/8", closed (NC), 12 V DC

61,52€ incl. VAT

Control voltage	Version	function	Thread (2x)
12 V DC	Standard plug (size 0)	closed (NC)	G 1/8"

SF2601 IPSC-A4

3/2-way solenoid valve, G 1/8", closed (NC), 24 V AC

61,52€ incl. VAT

Control voltage	Version	function	Thread (2x)
24 V AC	Standard plug (size 0)	closed (NC)	G 1/8"

SF2601 IPSC-A1

3/2-way solenoid valve, G 1/8", closed (NC), 115 V AC

61,52€ incl. VAT

Control voltage	Version	function	Thread (2x)
115 V AC	Standard plug (size 0)	closed (NC)	G 1/8"

SF2701 IPSC-D4

3/2-way solenoid valve, G 1/8", open (NO), 24 V DC

64,11€ incl. VAT

Control voltage	Version	function	Thread (2x)
24 V DC	Standard plug (size 0)	open (NO)	G 1/8"

SF2701 IPSC-A2

3/2-way solenoid valve, G 1/8", open (NO), 230 V AC

64,12€ incl. VAT

Control voltage	Version	function	Thread (2x)
230 V AC	Standard plug (size 0)	open (NO)	G 1/8"

SF2701 IPSC-D2

3/2-way solenoid valve, G 1/8", open (NO), 12 V DC

64,11€ incl. VAT

Control voltage	Version	function	Thread (2x)
12 V DC	Standard plug (size 0)	open (NO)	G 1/8"

SF2701 IPSC-A4

3/2-way solenoid valve, G 1/8", open (NO), 24 V AC

64,11€ incl. VAT

Control voltage	Version	function	Thread (2x)
24 V AC	Standard plug (size 0)	open (NO)	G 1/8"

SF2701 IPSC-A1

3/2-way solenoid valve, G 1/8", open (NO), 115 V AC

64,11€ incl. VAT

Control voltage	Version	function	Thread (2x)
115 V AC	Standard plug (size 0)	open (NO)	G 1/8"

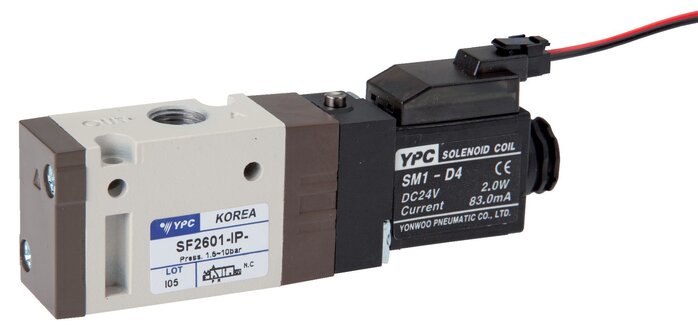

SF2601 IPSM-D4

3/2-way solenoid valve, G 1/8", closed (NC), 24 V DC

61,52€ incl. VAT

Control voltage	function	Thread (2x)	Thread exhaust air (1x)
24 V DC	closed (NC)	G 1/8"	G 1/8"

Version

2-pin plug with LED and protection circuit, including 600 mm cable

SF2701 IPSM-D4

3/2-way solenoid valve, G 1/8", open (NO), 24 V DC

64,11€ incl. VAT

Control voltage	function	Thread (2x)	Thread exhaust air (1x)
24 V DC	open (NO)	G 1/8"	G 1/8"

Version

2-pin plug with LED and protection circuit, including 600 mm cable
