Item group

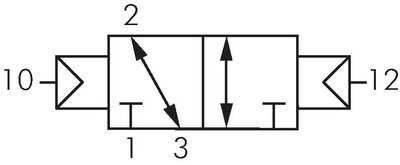

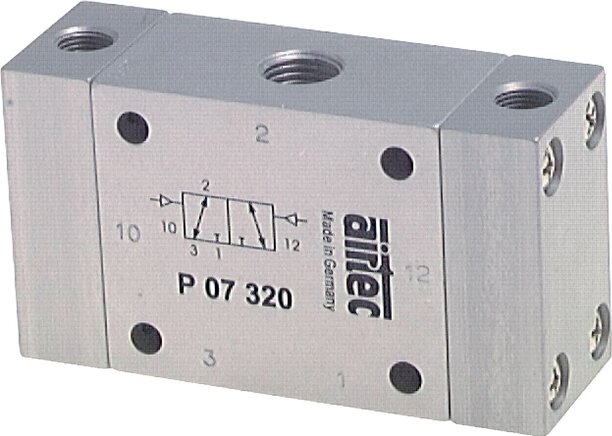

3/2-way pneumatic pulse valves, Series P

Materials:

Body: anodized aluminium, internal parts: aluminium and stainless steel, seals: plastic and NBR

Temperature range:

-10 to +70 °C

Media:

oiled and unoiled filtered compressed air

Pressure input:

Possible on every connection
*available for vacuum applications on request

Documents:

More information Less information
3/2-way pneumatic pulse valves, Series P:
5 of 5 articles
3/2-way pneumatic pulse valve, G 1/8", / Standard(P 05 320)
P 05 320 *
3/2-way pneumatic pulse valve, G 1/8", / Standard
€54.28 incl. VAT
Immediately available
3/2-way pneumatic pulse valve, G 1/4", / Standard(P 07 320)
P 07 320
3/2-way pneumatic pulse valve, G 1/4", / Standard
€66.85 incl. VAT
Immediately available
3/2-way pneumatic pulse valve, G 1/2", / Standard(P 12 320)
P 12 320
3/2-way pneumatic pulse valve, G 1/2", / Standard
€141.98 incl. VAT
Immediately available
3/2-way pneumatic pulse valve, G 1/4", / ATEX approval(P 07 320-X)
P 07 320-X
3/2-way pneumatic pulse valve, G 1/4", / ATEX approval
€66.85 incl. VAT
Immediately available
3/2-way pneumatic pulse valve, G 1/2", / ATEX approval(P 12 320-X)
P 12 320-X
3/2-way pneumatic pulse valve, G 1/2", / ATEX approval
€148.33 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
