3/2-way hand lever valves, model series VH

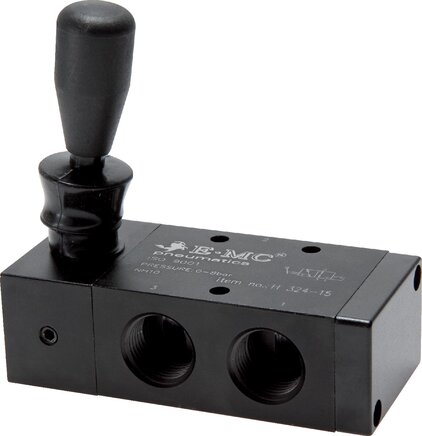

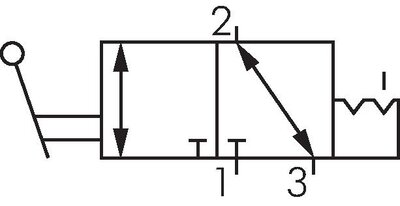

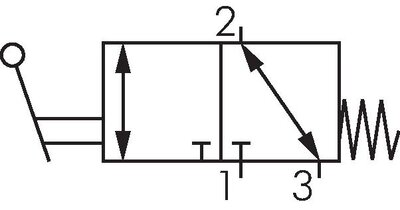

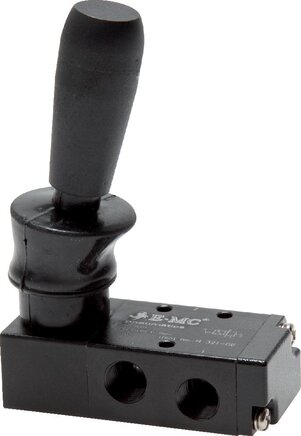

Exemplary representation: 3/2-way hand lever valve G 1/4" Exemplary representation: 3/2-way hand lever valve G 1/8" Exemplary representation: 3/2-way hand lever valve G 1/2" Schematic symbol: 3/2-way axial hand lever valve with spring return Schematic symbol: 3/2-way axial hand lever valve with detent

Materials:

Body and slider: aluminium, seals: NBR

Temperature range:

-5 to +60 °C

Operating pressure:

0 to 8 bar

Media:

oiled and unoiled filtered compressed air

Pressure input:

Possible on every connection

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 726_726a) atlas9_seiten/726_726a.pdf

{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
3/2-way hand lever valves, model series VH:
{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}
58,48€ incl. VAT
58,48€ incl. VAT
84,89€ incl. VAT
