Item group

3/2-way button activated valves & rotary switch M5 (Ø 30.5), Series T 30

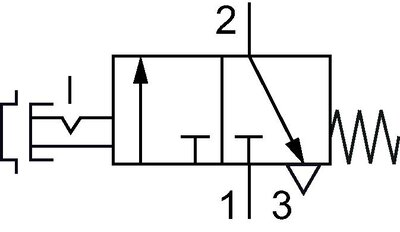

Exemplary representation: 3/2-way mushroom button valve Exemplary representation: 3/2-way pushbutton valve Exemplary representation: 3/2-way rotary switch valve Exemplary representation: 3/2-way key switch valve Exemplary representation: 3/2-way rocker valve Exemplary representation: 3/2-way emergency stop button valve Schematic symbol: 3/2-way pushbutton valve Schematic symbol: 3/2-way mushroom button valve Schematic symbol: 3/2-way rotary switch valve Schematic symbol: 3/2-way key switch valve Schematic symbol: 3/2-way rocker valve Schematic symbol: 3/2-way emergency stop button valve

Materials:

Body: anodized aluminium, internal parts: aluminium, brass and stainless steel, seals: NBR

Temperature range:

-10 to +70 °C

Operating pressure:

0 to 12 bar

Flow:

80 l/min (nominal width 2 mm)

Media:

oiled and unoiled filtered compressed air

Pressure input:

Connection 1, venting via lateral borehole in the housing.

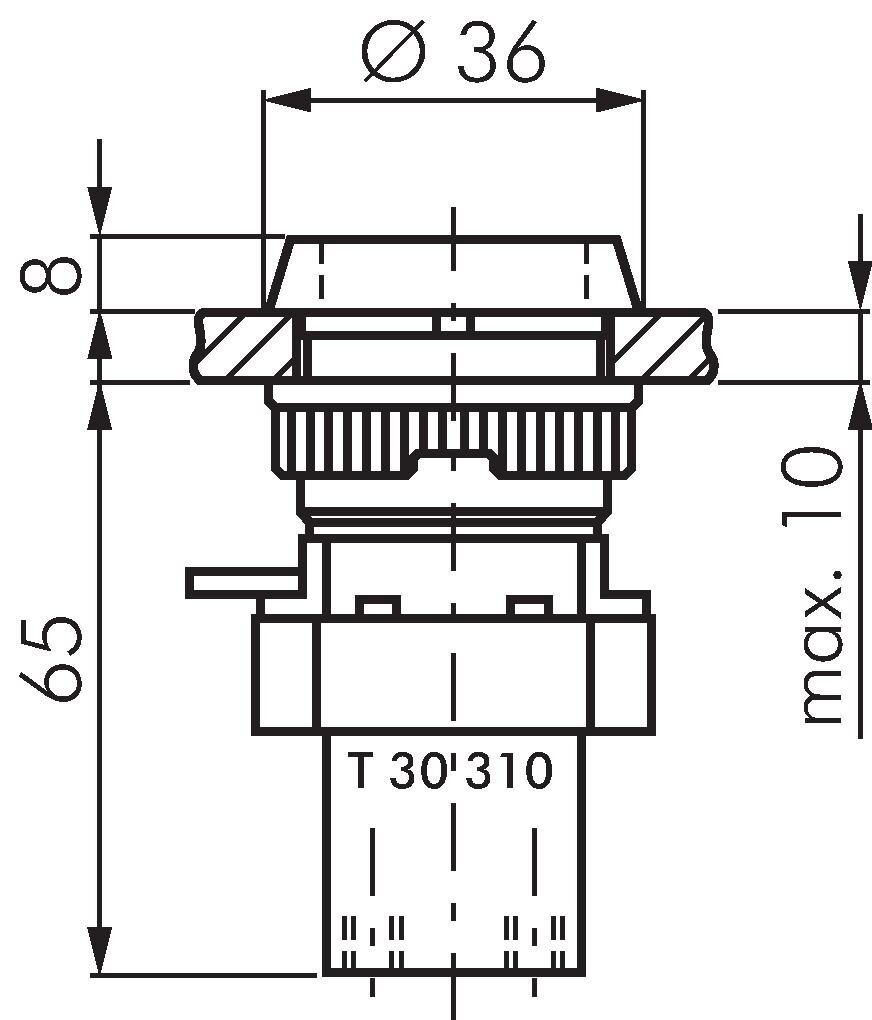

Switch panel borehole:

Ø 30,5 mm

{{ $t('shop.all.dokumente') }}:

    • Catalogue page Atlas 9 (Page 763) atlas9_seiten/763.pdf

{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
3/2-way button activated valves & rotary switch M5 (Ø 30.5), Series T 30:
{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}
T 30 311 SCHWAR

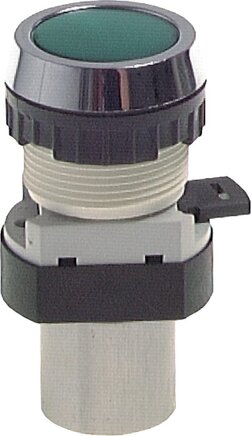

3/2-way Pushbutton-valve, black (30,5mm), M5
50,37€ incl. VAT
T 30 311 ROT
3/2-way Pushbutton-valve, red (30,5mm), M5
50,37€ incl. VAT
T 30 311 GRUN
3/2-way Pushbutton-valve, green (30,5mm), M5
50,37€ incl. VAT
T 30 311 GELB
3/2-way Pushbutton-valve, yellow (30,5mm), M5
50,37€ incl. VAT
T 30 312 SCHWAR

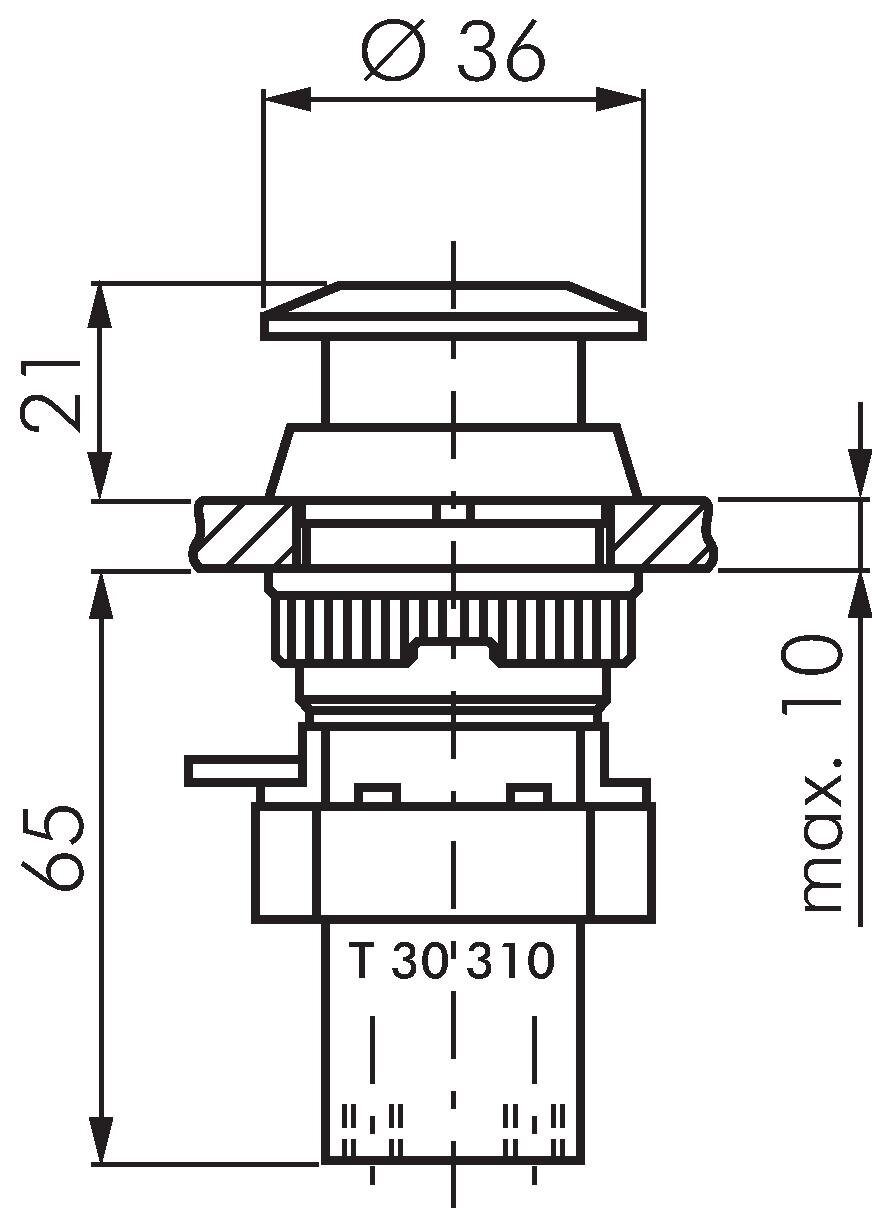

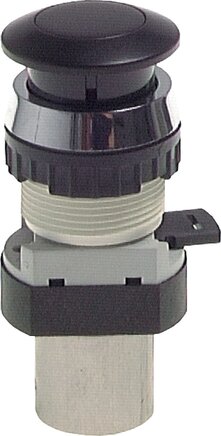

3/2-way Mushroom button-valve, black (30,5mm), M5
59,56€ incl. VAT
T 30 312 ROT
3/2-way Mushroom button-valve, red (30,5mm), M5
59,56€ incl. VAT
T 30 313

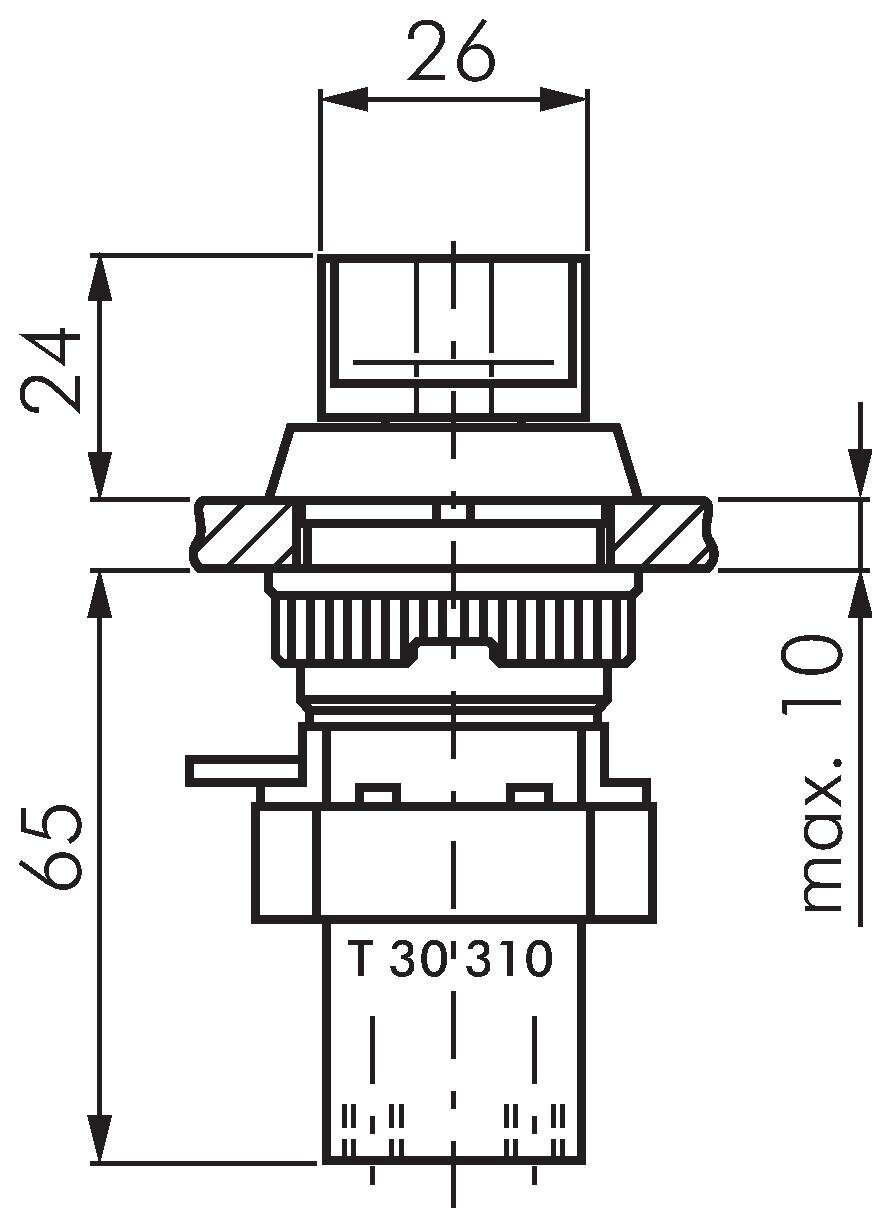

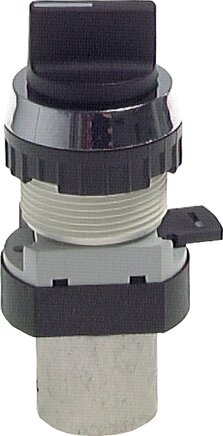

3/2-way Rotary switch-valve, black (30,5mm), M5
54,92€ incl. VAT
T 30 314

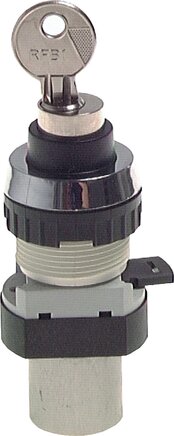

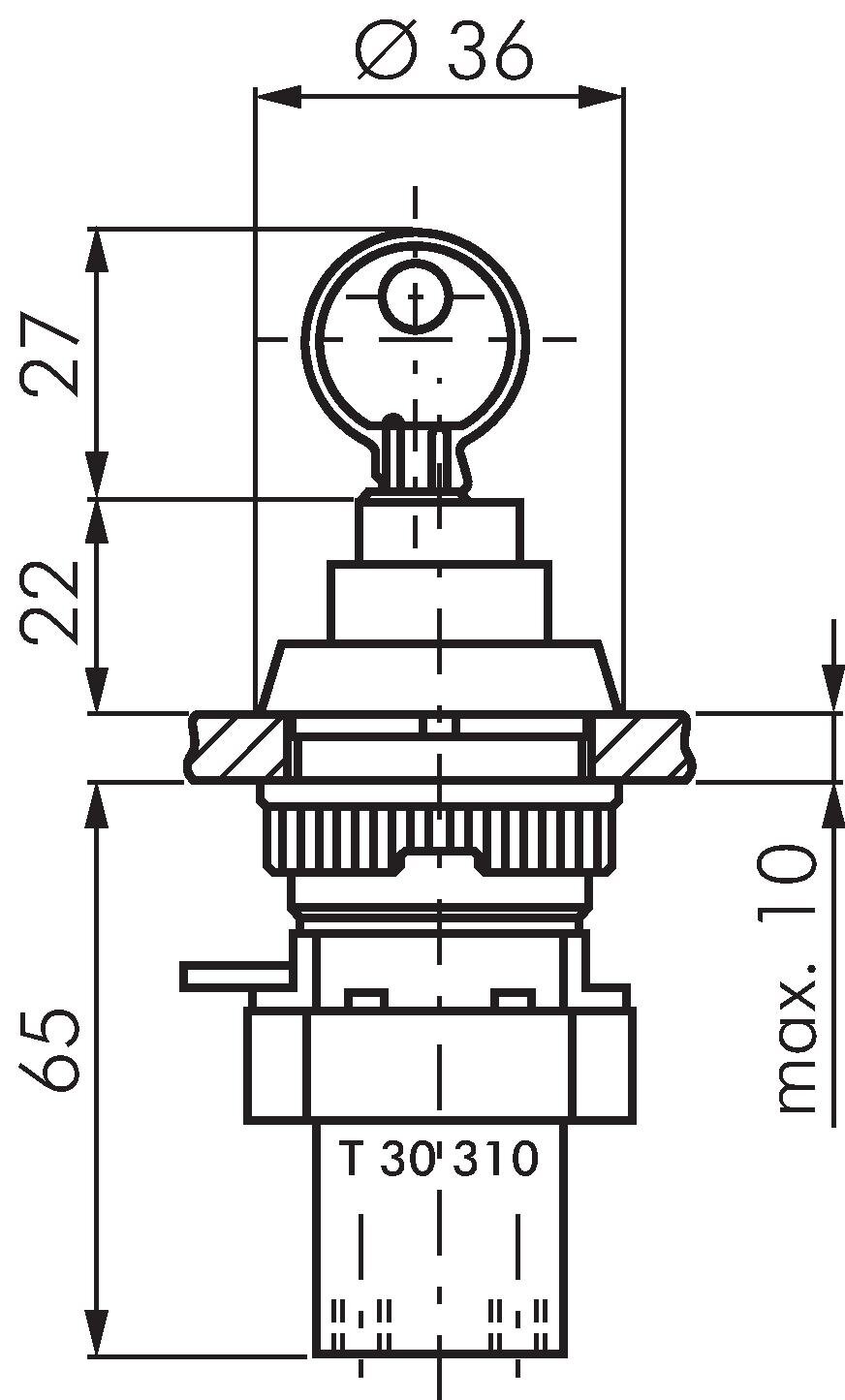

3/2-way Key-operated switch-valve, black (30,5mm), M5
216,29€ incl. VAT
T 30 316

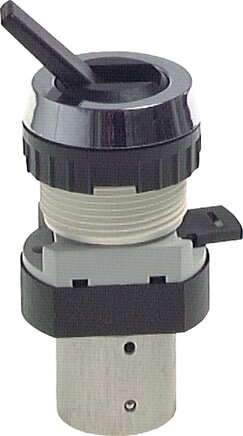

3/2-way Rocker lever-valve, black (30,5mm), M5
74,61€ incl. VAT
T 30 318

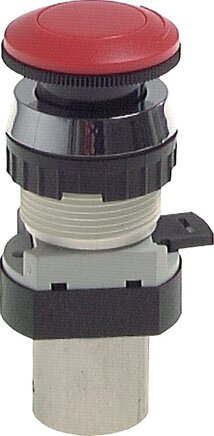

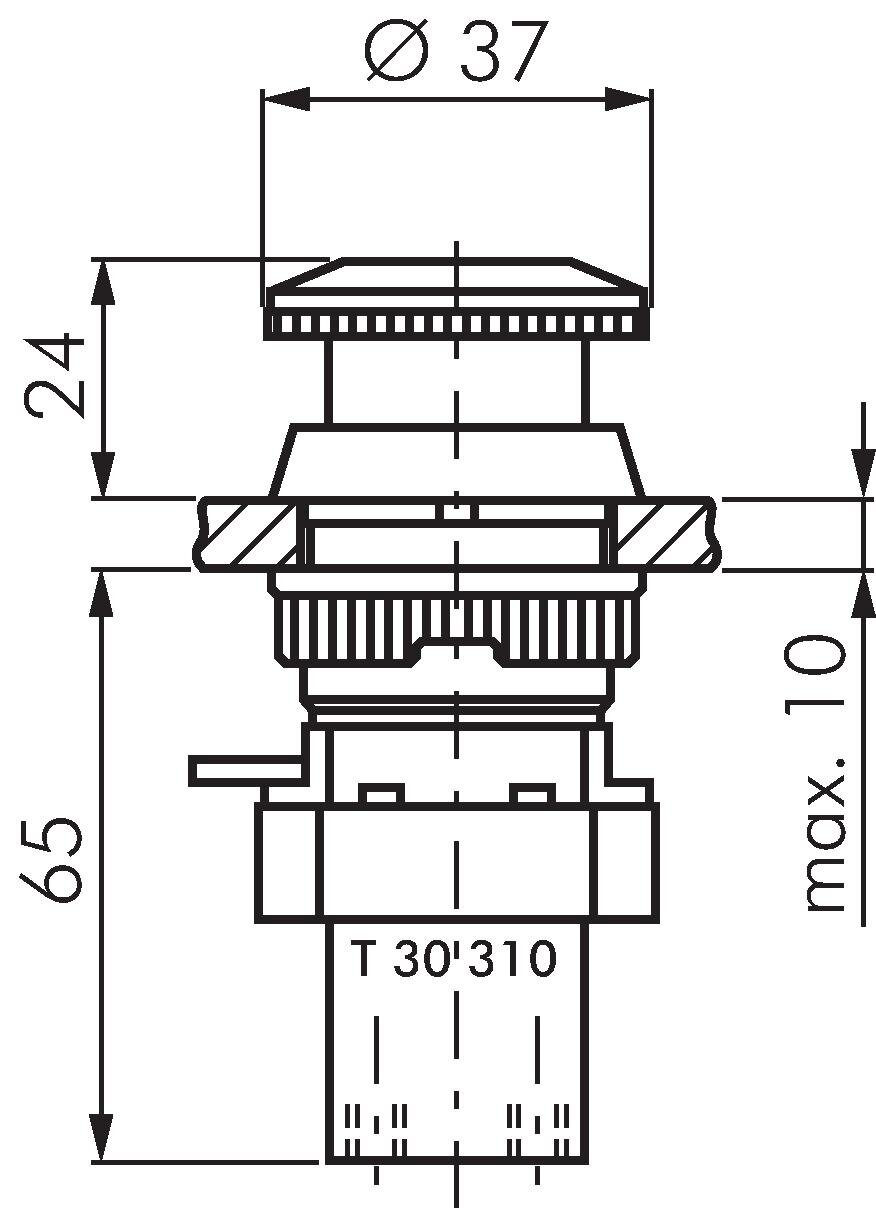

3/2-way Emergency stop button-valve, red (30,5mm), M5
61,49€ incl. VAT
