Item group
3/2-way button activated valves & rotary switch G 1/8" (Ø 30.5), Series YMV300
Materials:
Body: aluminium, slider: POM, seals: NBR
Temperature range:
-10 to +60 °C
Operating pressure:
0 to 8 bar
Flow:
450 l/min
Media:
oiled and unoiled filtered compressed air
Pressure input:
Possible on every connection

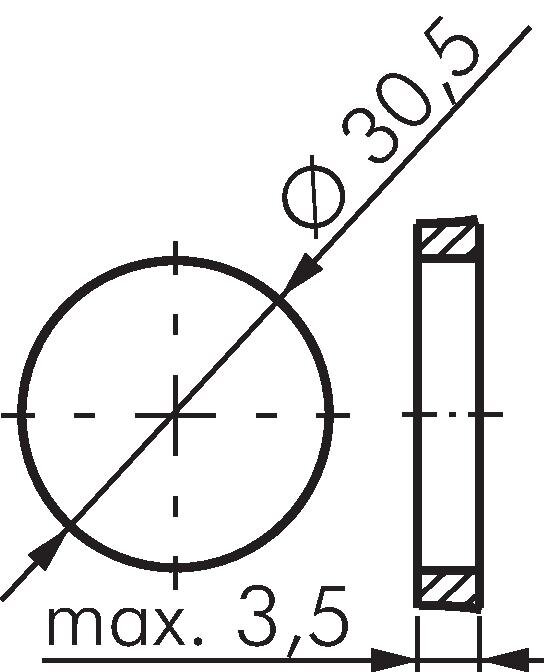

Switch panel borehole:
Ø 30,5 mm
Documents:
More information
Filter items
3/2-way button activated valves & rotary switch G 1/8" (Ø 30.5), Series YMV300:
8 of 8 articles
YMV310 MS-ROT

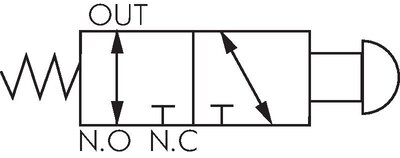

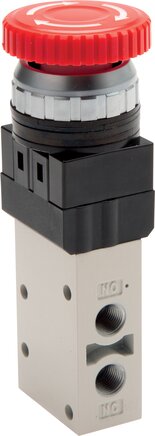

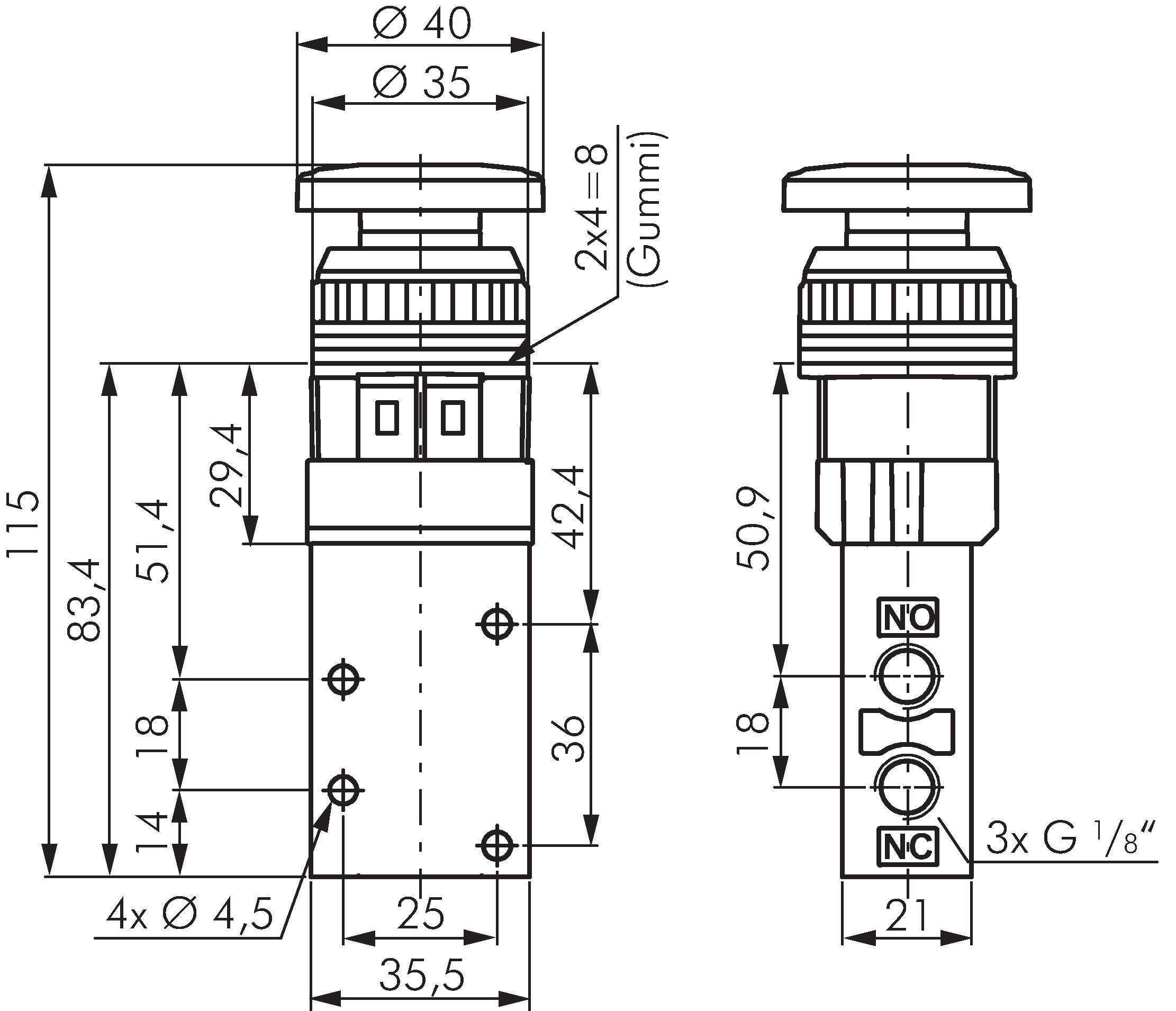

3/2-way valve G 1/8", Mushroom button red
€58.13
incl. VAT
YMV310 MS-GRUN
3/2-way valve G 1/8", Mushroom button green
€58.13
incl. VAT
YMV310 MS-SCHWARZ
3/2-way valve G 1/8", Mushroom button black
€58.13
incl. VAT
€65.55
incl. VAT
YMV310 FP-ROT

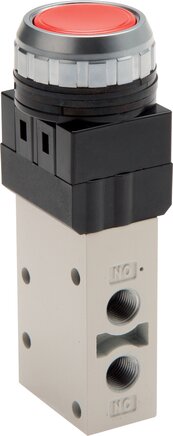

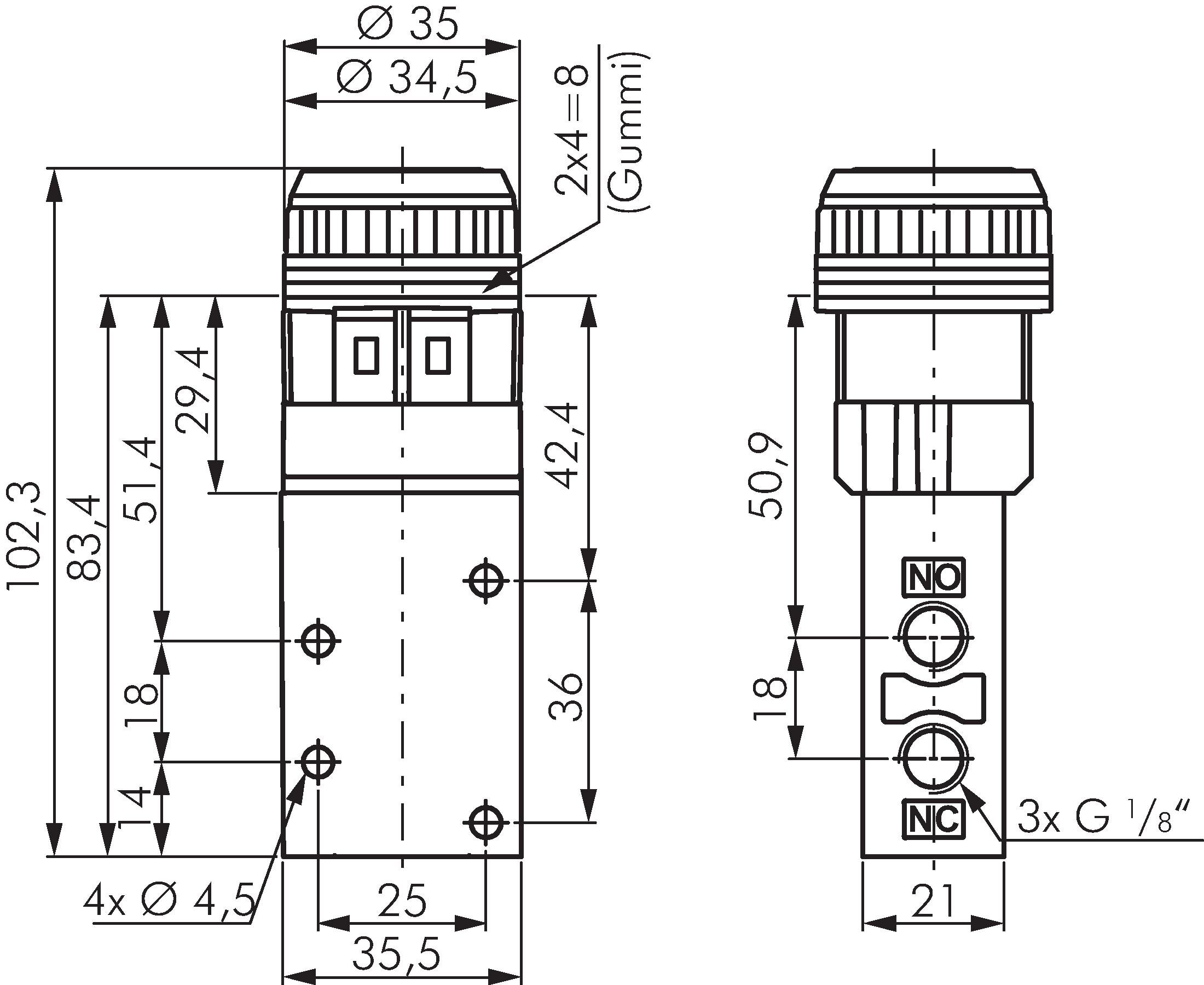

3/2-way valve G 1/8", Pushbutton red
€58.13
incl. VAT
YMV310 FP-GRUN
3/2-way valve G 1/8", Pushbutton green
€58.13
incl. VAT
YMV310 FP-SCHWARZ
3/2-way valve G 1/8", Pushbutton black
€58.13
incl. VAT
€58.13
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
