Item group

3/2-way & 5/2-way NAMUR valves G 1/4“, Series V30

Name: 3/2- and 5/2-way NAMUR solenoid valve G1/4", 24 V DC of EMC
Brand: EMC
SKU: V 5231-08MG-24V=
Price: 78.73 EUR
Availability: InStock

Exemplary representation: 3/2-way & 5/2-way NAMUR solenoid valve

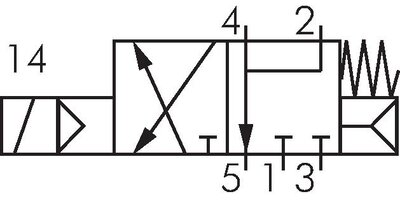

Schematic symbol: 5/2-way solenoid valve with spring return

Schematic symbol: 3/2-way solenoid valve, closed when de-energised (NC)

Materials:

Body and slider: aluminium, seals: NBR, pilot: polyamide

Temperature range:

-5 to +60 °C

Operating pressure:

1,5 to 8 bar

Media:

oiled and unoiled filtered compressed air

Switching time (at 5 bar):

<50 ms, max. 5 switching cycles/sec.

Control voltages:

Standard: 24 V DC, 230 V AC, upon request other voltages

Voltage tolerance:

± 10 %

Protection class:

IP 65

Structural shape solenoid coil:

T (plug size 1)

Service life:

min. 12 million switching cycles

Advantages:

•Simply by rotating the seal, the valve can be changed between 3/2-way and 5/2-way function
•Economical, as the same valve can be used for single-acting drives.

Information:

These valves are always supplied with a solenoid coil and a connector plug.

{{ $t('shop.all.dokumente') }}:

Catalogue page Atlas 9 (Page 721) atlas9_seiten/721.pdf

3/2-way & 5/2-way NAMUR valves G 1/4“, Series V30:

{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}

V 5231-08MG-24V=

3/2- and 5/2-way NAMUR solenoid valve G1/4", 24 V DC

78,73€ incl. VAT

Control voltage	Thread (1x)	Thread exhaust air (2x)	Nominal width [mm]
24 V DC	G 1/4"	G 1/4"	5,6

function

5/2-way (spring return) or 3/2-way, NC (spring return)

V 5231-08MG-230V

3/2- and 5/2-way NAMUR solenoid valve G1/4", 230 V AC

78,73€ incl. VAT

Control voltage	Thread (1x)	Thread exhaust air (2x)	Nominal width [mm]
230 V AC	G 1/4"	G 1/4"	5,6

function

5/2-way (spring return) or 3/2-way, NC (spring return)

V 5231-08MG-12V=

3/2- and 5/2-way NAMUR solenoid valve G1/4", 12 V DC

78,73€ incl. VAT

Control voltage	Thread (1x)	Thread exhaust air (2x)	Nominal width [mm]
12 V DC	G 1/4"	G 1/4"	5,6

function

5/2-way (spring return) or 3/2-way, NC (spring return)

V 5231-08MG-24VAC

3/2- and 5/2-way NAMUR solenoid valve G1/4", 24 V AC

78,73€ incl. VAT

Control voltage	Thread (1x)	Thread exhaust air (2x)	Nominal width [mm]
24 V AC	G 1/4"	G 1/4"	5,6

function

5/2-way (spring return) or 3/2-way, NC (spring return)
