Item group

3/2-way & 5/2-way limit switch, Model series VM

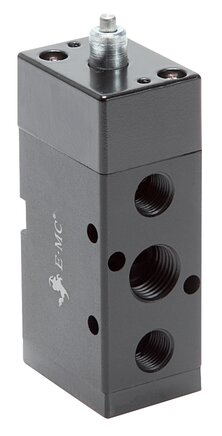

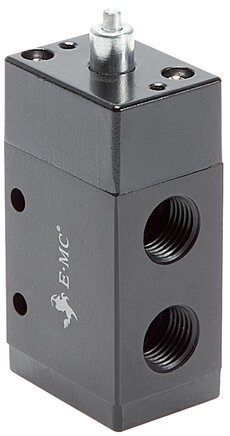

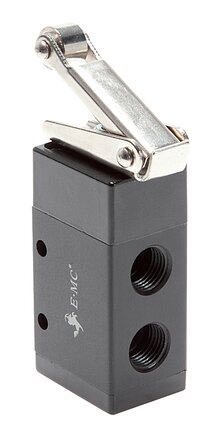

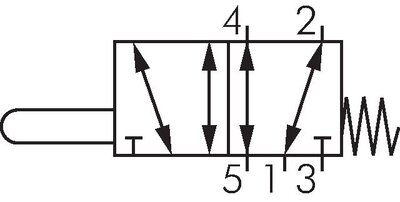

Exemplary representation: 3/2-way roller lever valve Exemplary representation: 3/2-way cam valve Exemplary representation: 5/2-way cam valve Exemplary representation: 5/2-way roller lever valve Schematic symbol: 3/2-way cam valve (NC/NO) Schematic symbol: 3/2-way roller lever valve (NC/NO) Schematic symbol: 5/2-way cam valve Schematic symbol: 5/2-way roller lever valve

Materials:

Body and slider: aluminium, seals: NBR

Temperature range:

-5 to +60 °C

Operating pressure:

0 to 8 bar

Flow:

800 l/min

Media:

oiled and unoiled filtered compressed air

Pressure input:

Possible on every connection

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 724_725) atlas9_seiten/724_725.pdf


{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
3/2-way & 5/2-way limit switch, Model series VM:
{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}
46,83€ incl. VAT
