Item group

3-way ball valves, vertical, with fixing threads , PN 20

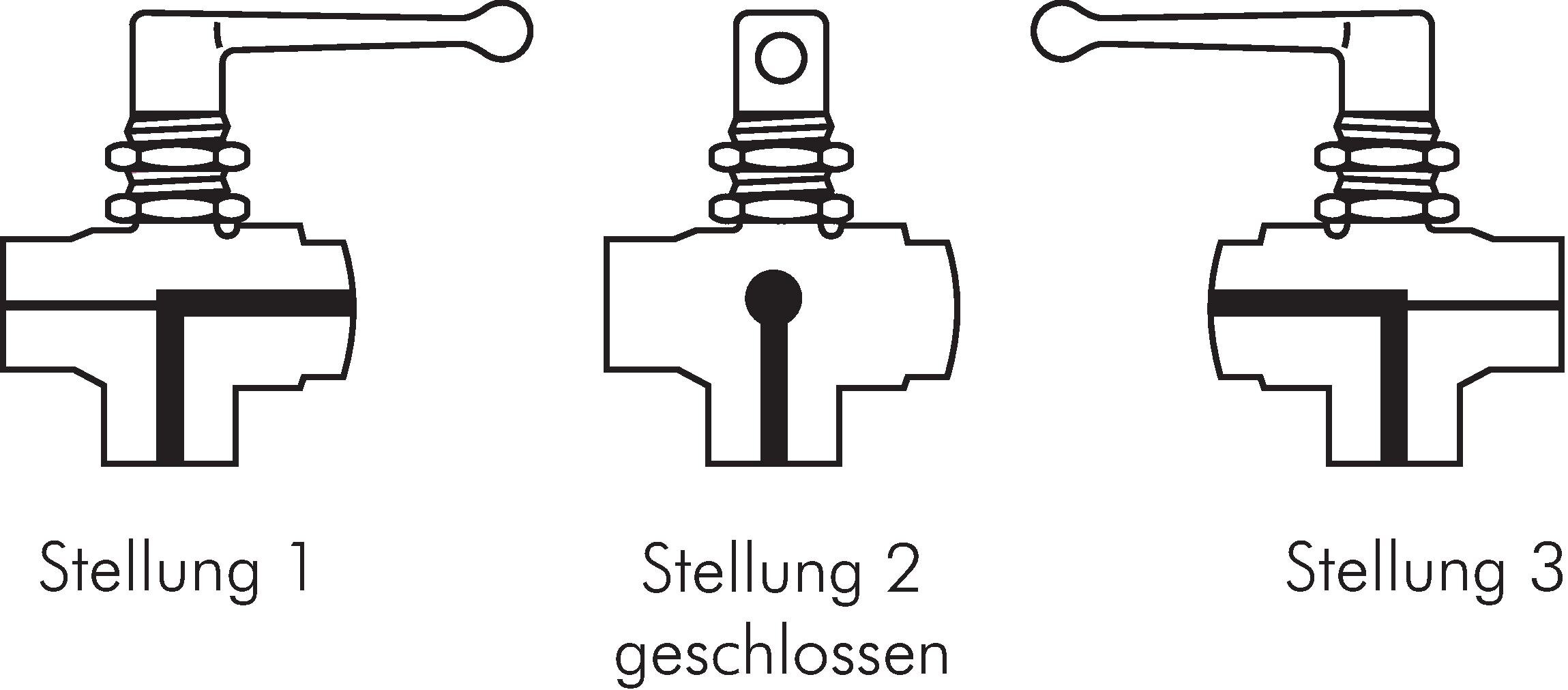

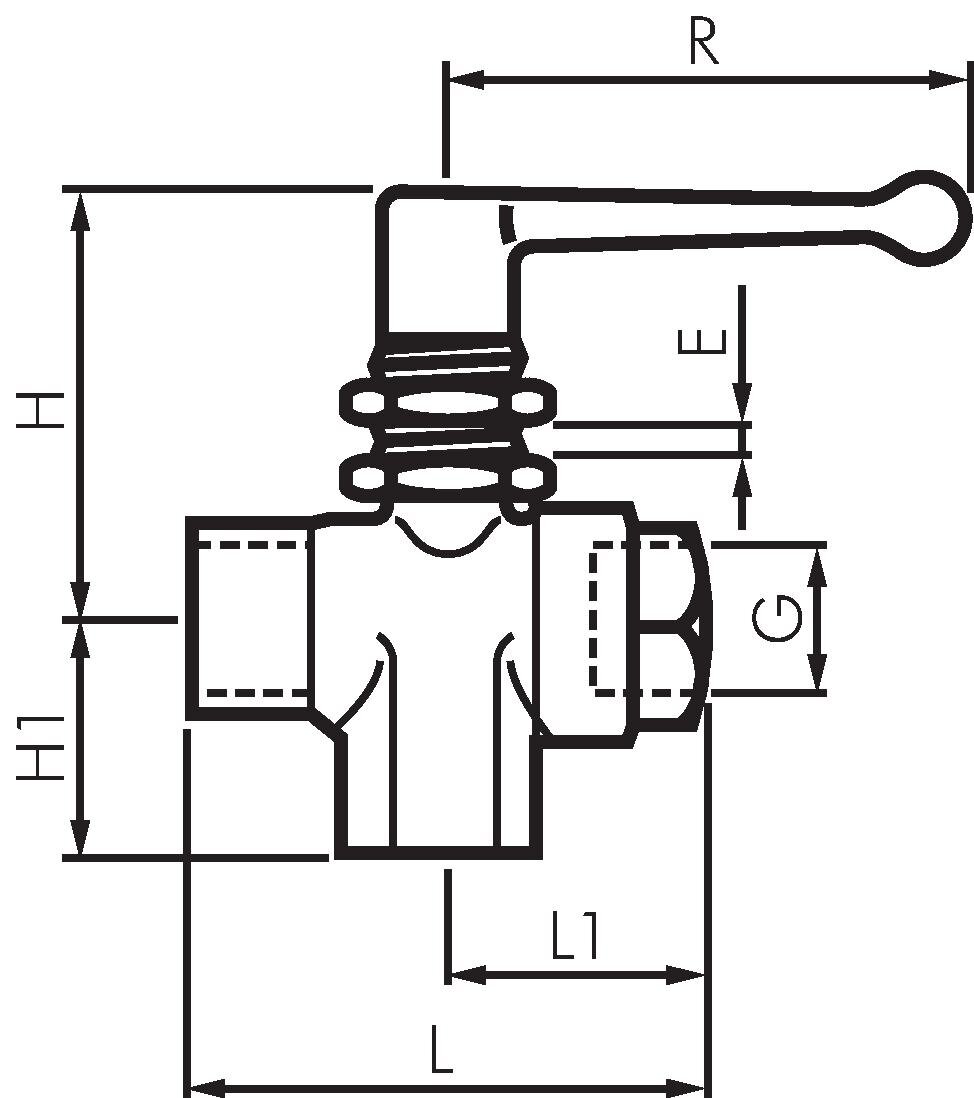

Exemplary representation: 3-way ball valve, vertical, with mounting thread, L-bore Schematic symbol

Materials:

Body: nickel-plated brass, ball: polished brass, seal: PA / NBR

Temperature range:

-20°C to +80°C

Media:

Water (no steam), neutral, gaseous and non-aggressive, liquid media, mineral oils, compressed air, vacuum (max. -0.98 bar)

Switch panel mounting:

Hole diameter 20.5 mm (16.5 mm for the 1/8" version)

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 516) atlas9_seiten/516.pdf
