Data sheet
Screw-on screw connection G 3/8"-6x4mm, Aluminium
{{ $t('shop.all.artikelnummer') }}:
ACK 384 A

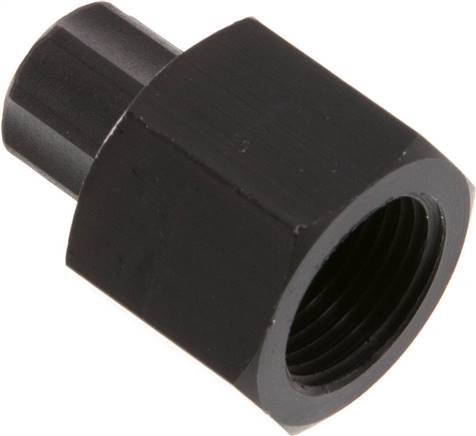

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Nickel-plated brass type
Operating pressure:
corresponds to the pipes / hoses used
Temperature range:
corresponds to the pipes / hoses used
aluminium type
Operating pressure:
-0.99 to 15 bar
Temperature range:
-15°C to max. +70°C
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Aluminium |
| Thread internal | G 3/8" |
| Hose diameter (outer x inner) [mm] | 6x4 |
| Operating pressure [bar] | -0.99 to 15 |
| Temperature range [°C] | -15 to +70 |
Further information:
| {{ $t('shop.all.gewicht') }} | 15 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571217013 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 76169990 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number ACK 384 A.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 15.12.2025
