Data sheet
Coupling plug (NW7,2) 12x6mm TX hose, MS/Al
{{ $t('shop.all.artikelnummer') }}:
KSCX 6 NW7

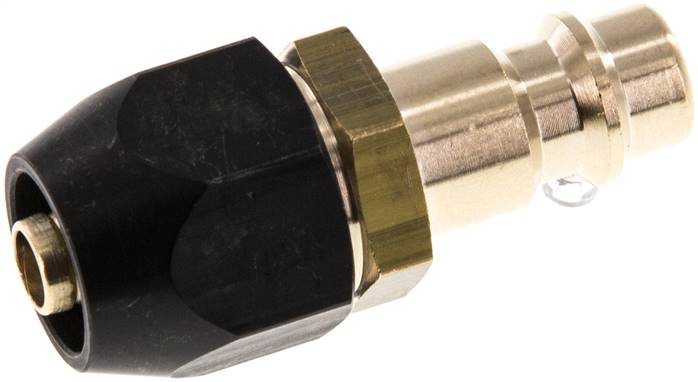

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Housing: Brass, union nut: Aluminium
Temperature range:
-10 to +60 °C
Advantages:
•Frequent assembly and disassembly possible,
•No hose clip - no risk of injury
•No hose clip - no risk of injury
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Brass / aluminium |
| Hose diameter (outer x inner) [mm] | 12x6 |
| shut-off on both sides | no |
Further information:
| {{ $t('shop.all.gewicht') }} | 36 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571447786 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 74198090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number KSCX 6 NW7.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 15.12.2025
