Data sheet
SS high pressure 3-way ball valve, L-borehole, 8 L (M14x1,5), 0 to 315bar
{{ $t('shop.all.artikelnummer') }}:
KH 3/8 L L HD ES

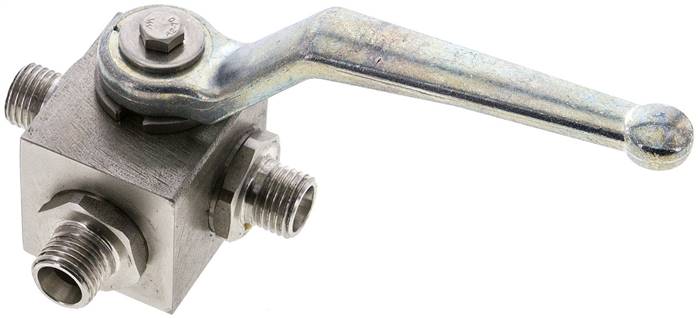

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: 1.4571, ball: 1.4571, seal: POM / NBR, handle: zinc die casting
Temperature range:
-20°C to +100°C
Media:
Hydraulic oils, heating oil (water only after release by us). Apply input pressure only on the centre hole.
Switching position:
Can be modified by moving the handle to position T4. The standard position for T boreholes is position T1.
Optional:
PTFE/FKM seal (-10°C to +85°C: PN 100, up to +140°C: PN 50, up to +180°C: PN 20) -V
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| borehole | L-borehole |
| Model series | light model series |
| Pipe diameter (outer) | 8 L (M14x1,5) |
| DN [mm] | 6 |
| PN [bar] | 0 - 315 |
| Version | Standard |
Further information:
| {{ $t('shop.all.gewicht') }} | 480 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571419059 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84818081 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Switching position
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number KH 3/8 L L HD ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 19.12.2025
