Data sheet

Brass mini ball valve G 3/8" Female thread /male thread,PN 16
Item number:
KH 38 MKIA

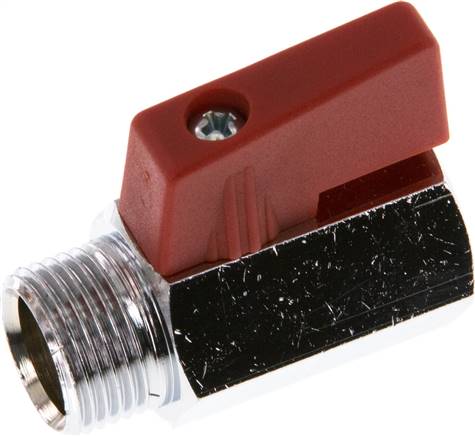

Example illustration
Item description
Materials:
Body: chrome-plated brass, ball: nickel-plated brass, seals: PTFE / NBR
Temperature range:
0 to +70 °C (temporarily 0 to +90 °C)
Media:
Water (no steam), neutral, gaseous and non-aggressive, liquid media, mineral oils, compressed air, vacuum (max. -0.9 bar)
Properties
Ver­sion Fe­male thread /male thread
Ac­tu­a­tion But­ter­fly han­dle
Thread G (in­side) G 3/8"
Thread G G 3/8" (male thread)
DN [mm] 8
L [mm] 40
PN [bar] -0.9 to 15
H [mm] 27,5
R [mm] 22
Further information:
Weight 65 g / pcs
GTIN 4050571421519
Customs duty number 84818081
RoHS compliant Yes
Drawing:
Zeichnung: Mini-Kugelhahn mit Innen- & Außengewinde, Knebelgriff
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number KH 38 MKIA.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
As of: 29.03.2025
