Data sheet

Elastic solid rubber roller, 125mm, Swivel castor
{{ $t('shop.all.artikelnummer') }}:
RO 125 VG L

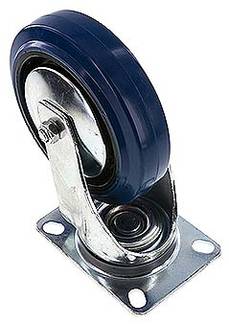

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Properties:
High elasticity, great driving comfort, firm tyre seating and low roll resistance characterises these rollers. Zinc plated steel sheet housing, double ball ring in yoke, wheels with blue elastic solid rubber tyre, free of grooves, plastic wheel body.
Bearing type:
Roller cage bearing with thread guard (Ø 160 - 200: without thread guard)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version swivel castor
Wheel diameter (±3%) [mm] 125
Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)] 160
Wheel width [mm] 36
Height (± 2) [mm] 155
Plate sizes [mm] 104 x 80
Borehole removal [mm] 80 x 60
Borehole diameter [mm] 9
Loading (± 2) [mm] 36
Further information:
{{ $t('shop.all.gewicht') }} 1 kg / pcs
{{ $t('shop.all.gtin') }} 4050571596811
{{ $t('shop.display.artikel.zollwarennummer') }} 87169090
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number RO 125 VG L.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 19.12.2025
