Data sheet
Reducing nippleM 7(MT)-M 5(female thread), Nickel-plated brass (elastomer seal)
{{ $t('shop.all.artikelnummer') }}:
RN 75 MSV ED

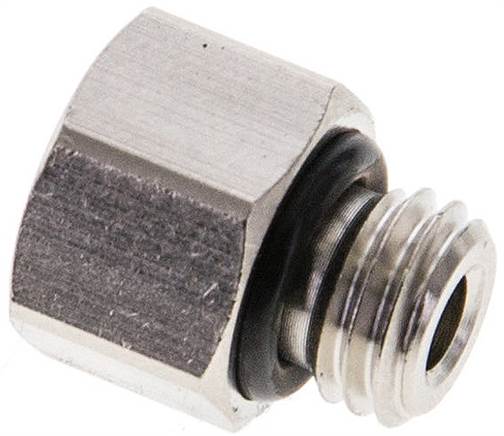

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: nickel-plated brass, seal: NBR
Temperature range:
-20 to +80 °C
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Nickel-plated brass |
| Thread external | M 7 |
| Thread internal | M 5 |
| L [mm] | 7,2 |
| Spanner width [mm] | 10 |
Further information:
| {{ $t('shop.all.gewicht') }} | 5 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571938031 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 74122000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number RN 75 MSV ED.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 21.12.2025
