Data sheet
Loose flange DN10-PN10, DIN 2642, 1.4571 full material
{{ $t('shop.all.artikelnummer') }}:
FL 10 LS ES

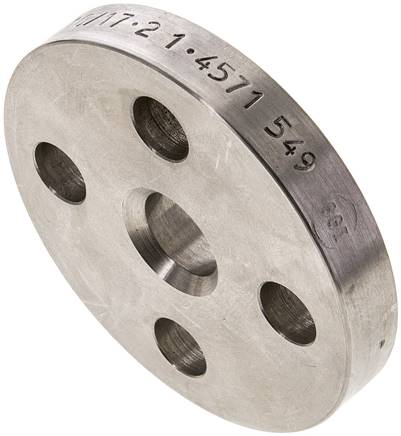

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Version:
1.4571 and steel zinc plated: DIN 2642, stainless steel: Metal sheet pressed (similar to DIN 2642)
Optional:
EN 1092-1 (type 02) -EN
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | 1.4571 full material |
| Flange connection | DN10-PN10 (DIN) |
| DN [mm] | 10 |
| Standard | DIN 2642 |
| Number of holes* | 4 |
| A [mm] | 90 |
| D [mm] | 19 |
| b [mm] | 14,0 |
| d [mm] | 14,0 |
| k [mm] | 60 |
| S [mm] | 3 |
Further information:
| {{ $t('shop.all.gewicht') }} | 650 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571299590 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73072100 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Loose flange DIN 2642, for welding neck flange discs
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number FL 10 LS ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 21.12.2025
