Data sheet
Union nut Brass, G 1", 19 mm
{{ $t('shop.all.artikelnummer') }}:
UM 10-19 MS

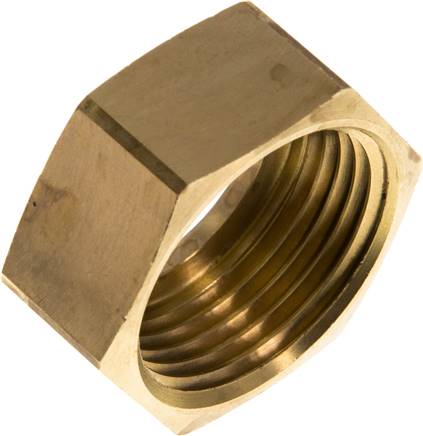

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Warning:
Version of the sleeves and union nuts varies depending on the manufacturer and material. Mixing of the individual parts with other manufacturers or materials is not recommended.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Brass |
| Thread (G) | G 1" |
| for hose screw connection [mm] | 19 |
| L [mm] | 17 |
| SW [mm] | 37 |
Further information:
| {{ $t('shop.all.gewicht') }} | 65 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571712549 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 74122000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Union nuts
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number UM 10-19 MS.
