Data sheet
Distributor pipe G 3/4"(FT/MT), outflow 3x G 1/2" (AG)
{{ $t('shop.all.artikelnummer') }}:
VTA 343 MSV

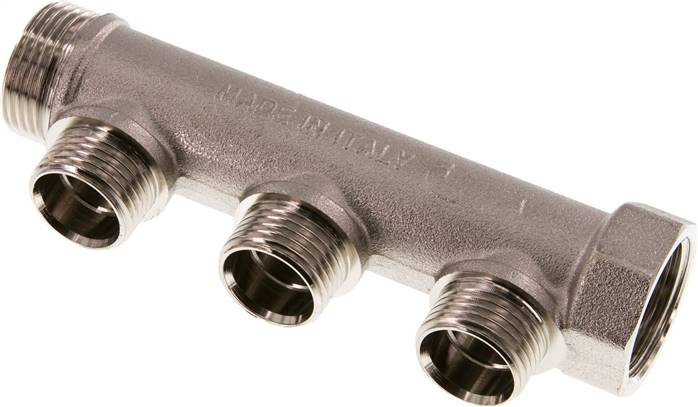

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
nickel-plated brass
Suitable:
For the assembly of extraction points. The distributor may be extended as required since these are equipped with female and male threads.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | 3 outlets (MT) |
| Female thread G1 | G 3/4" |
| Male thread G2 | G 3/4" |
| Thread outlet | 3x G 1/2" (AG) |
| L [mm] | 125 |
| A [mm] | 38 |
Further information:
| {{ $t('shop.all.gewicht') }} | 250 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571729523 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 74122000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: 4 outlets with male thread on the extraction point
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number VTA 343 MSV.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 19.12.2025
