Data sheet

Loose flange DN20-PN16 (DIN), PVC-U, 25mm
{{ $t('shop.all.artikelnummer') }}:
PVCLF 25

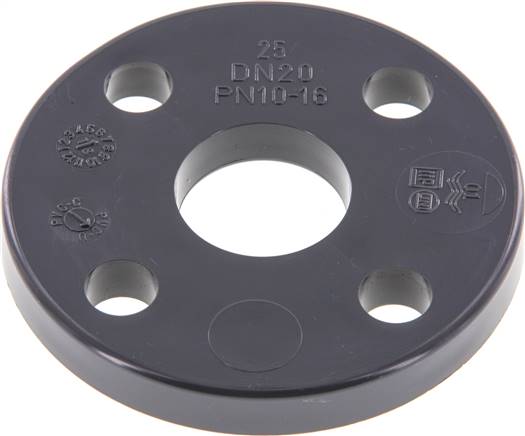

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Fitting of PVC-U (EN 1452-3)
Materials:
PVC-U
Temperature range:
0 to +60 °C
Operating pressure:
max. 16 bar
Properties:
Abrasion resistant, non toxic, corrosion free, ideal for above ground and underground installations.
Media:
Water, many inorganic chemicals, many acid, alkaline and salt solutions. Nor resistant against aromatic and chlorinated hydrocarbons. Never use for compressed air or other gases under pressure!
Warning:
Not suitable for compressed air or other gases under pressure!
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Nominal diameter d [mm] 25
Outer diameter D [mm] 107
Flange connection DN20-PN16 (DIN)
DN [mm] 20
Bolt circle diameter D1 [mm] 75
Inner diameter D2 [mm] 34
Hole diameter D3 [mm] 14
Number of boreholes 4
H [mm] 12
Further information:
{{ $t('shop.all.gewicht') }} 90 g / pcs
{{ $t('shop.all.gtin') }} 4050571557980
{{ $t('shop.display.artikel.zollwarennummer') }} 39174000
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Loose flanges
Drawing: Pressure-temperature diagram
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number PVCLF 25.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 16.12.2025
