Data sheet

Threaded nozzle, safety collar G 1"-25 (1")mm, Zinc plated steel
{{ $t('shop.all.artikelnummer') }}:
GT 1025 ST SB

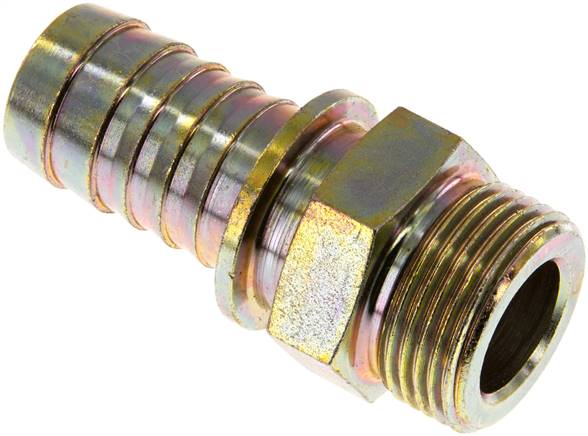

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Additional mechanical connection between hose fittings and clamps (only in conjunction with hose clamp SL.... SB)
Temperature range:
-40 to +95 °C
Operating pressure:
25 bar
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material Zinc plated steel
Thread G 1"
Hose diameter (inner) [mm] 25 (1")
Collar diameter [mm] 36
DN [mm] 20
Further information:
{{ $t('shop.all.gewicht') }} 230 g / pcs
{{ $t('shop.all.gtin') }} 4050571344238
{{ $t('shop.display.artikel.zollwarennummer') }} 74122000
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number GT 1025 ST SB.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 21.12.2025
