Data sheet

Stainless steel-ball valve, Eco-Line very light, G 2-1/2", PN40
{{ $t('shop.all.artikelnummer') }}:
KH 212 K ES E-40

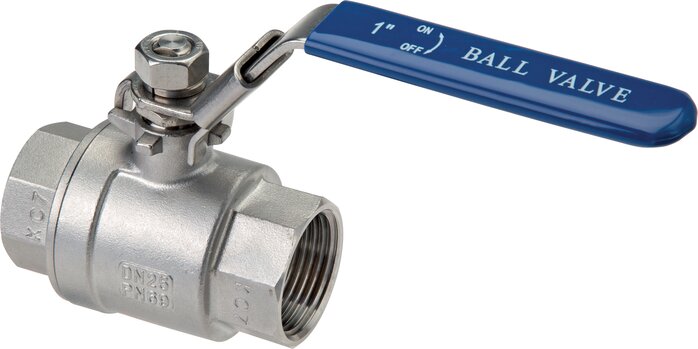

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: 1.4408, ball: 1.4408, seal: PTFE, handle: 1.4301
Temperature range:
-20 to +150 °C
Media:
Water, oil, compressed air, fuels, solvents, aggressive media
{{ $t('shop.display.artikel.eigenschaften_headline') }}
G G 2-1/2"
DN [mm] 65
L [mm] 144
PN [bar] 0 - 40
H [mm] 125
R [mm] 220
Further information:
{{ $t('shop.all.gewicht') }} 3,5 kg / pcs
{{ $t('shop.all.gtin') }} 4050571906931
{{ $t('shop.display.artikel.zollwarennummer') }} 84818081
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number KH 212 K ES E-40.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 21.12.2025
