Data sheet
Hose nipple, 60° sealing cone,11 to 12mm f. M 18x1,5
{{ $t('shop.all.artikelnummer') }}:
810 1000 ES

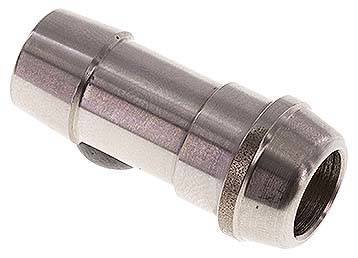

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
1.4301
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| DN [mm] | 10 |
| Hose diameter (inner) [mm] | 11 - 12 |
| for metric threads | M 18x1,5 |
| Collar diameter behind sealing cone [mm] | 13,4 |
| Suitable union nut (metric) | 831 1000 ES |
Further information:
| {{ $t('shop.all.gewicht') }} | 16 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571894870 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73182900 |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number 810 1000 ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 18.12.2025
