Data sheet
FUTURA Filling unit, electrically operated, G 1/4", Futura 1
{{ $t('shop.all.artikelnummer') }}:
BEFULL 14 F 115V

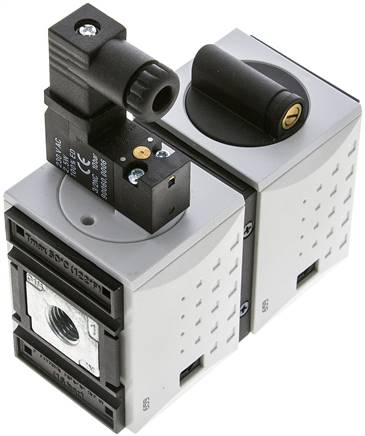

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: PA 66 GF60, cover: POM, seals: NBR
Temperature range:
-10 to +50 °C
Media:
Oiled and unoiled compressed air, neutral gasses
Advantages:
•easy assembly of single components within a model series using coupling kits
Input pressure:
2.5 - 10 bar (pneumatically operated: 2.5 - 16 bar, series 0 (pneumatically operated: 2.5 - 12 bar)
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Power consumption:
2,5 W / 3 VA (50 Hz)
Protection class:
IP 65 (plug size 0C)
Function:
The machines are allowed to breathe gradually via an orifice. Once the pressure attains a value of approx. 50% of the input pressure and the cylinders have gradually moved into their basic settings, the start-up valve switches over to maximum throughway. The speed of the pressure build-up can be controlled using an adjustment screw. It is turned on via a 3/2-way valve.
Scope of delivery:
Filling unit including silencer in exhaust thread
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Filling unit, electrically operated |
| Model series | Futura 1 |
| Thread | G 1/4" |
| Exhaust thread | G 1/4" |
| Electrical controls | 115 V AC |
| flow [l/min] | 1400 |
| H [mm] | 118 |
| H1 [mm] | 33 |
| L [mm] | 104 |
| Mounting brackets | W 1 F |
| Coupling kit | KP 1 F |
| Coupling kit with wall console | KPW 1 F |
| Spare pilot valve | M CL 115V |
| input pressure [bar] | 2,5 - 10 |
Further information:
| {{ $t('shop.all.gewicht') }} | 0 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571892357 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number BEFULL 14 F 115V.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 18.12.2025
